Home > Health & Medicine > Medical Equipment > Ultrasonic, Optical, Electronic Equipment > C5Pre Laptop Color Doppler

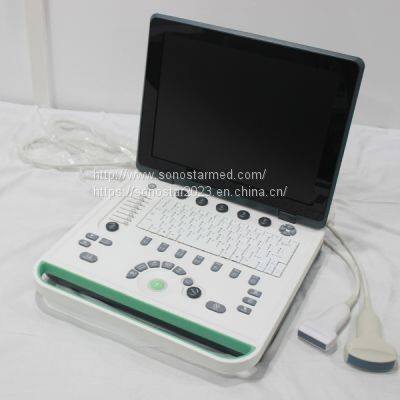

C5Pre Laptop Color Doppler
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Doppler Ultrasound Equipment
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Type
Doppler Ultrasound Equipment
Equipment Instructions
For examinations of abdomen, heart, gynecology, obstetrics, urology, small organs, pediatrics, blood vessels, etc.
Main technical parameters and functions
-Technology platform: WINDOWS platform
-Physical channels ≥ 32, Probe array elements ≥ 80
-Machine size: 400mm(W) x 394mm(H) x thickness 172mm
-Weight: Net Weight≤7.5kg (with one probe≤8.2kg, with two probes≤8.9kg)
-Packing size: 500mm(L) x 500mm(W) x 430mm(H)
-Display: 15 inch LCD high resolution
-Fully digital imaging technology: multi-beam synthesis, real-time point-by-point dynamic focus imaging,
pulse inverse harmonic composite imaging, spatial composite, image enhancement and noise reduction
-Imaging modes: B mode, M mode, Color (color Doppler) mode, PW (pulse Doppler) mode
-Image display mode: B, double frame, 4 frame, B+M, M, B+Color, B+PW, PW, B+Color+PW, B/BC dual
real-time-Supported probes: 3C6C convex array probe, L4C/8L4C/10L25C linear array probe, 6E1C
transvaginal probe, 6C15C/3C20C micro-convex probe, 6I7C rectal probe;
-Probe frequency: 4.3-12.0MHz
-Movie playback: 500-1500 frames;
-Image magnification: real-time scanning (B, B+C, 2B, 4B), status: 10 times
-Image storage: support JPG image format and AVI movie format,
-Support local storage;
-Support DICOM, comply with DICOM3.0 standard
-Built-in workstation: support large-capacity hard disk (★≥128GB), support patient data retrieval and browsing
-Volume calculation software package: abdomen, gynecology, obstetrics, small organs, heart, blood vessels, etc.
-Battery: Built-in large-capacity lithium battery, continuous working time ≥ 1.5 hours
-Image parameters
B mode
1. Grayscale mapping: ≥15 files 2. Frame related: ≥8 files 3. Edge enhancement: ≥15 files
4. Image enhancement: ≥5 files 5. Space composite: switch adjustable
6. Image flip: up and down, left and right 7. Maximum scanning depth: ≥250mm
M mode
1. Sweep Sleep: ≥4 levels adjustable 2. Line Average: ≥5 files
PW mode
1. SV size/position: SV size 1.0–8.0mm adjustable 2. PRF: ≥5 files 3. Sweep Sleep: ≥8 levels adjustable
4. Correction angle: 360 degrees 5. Spectrogram flip: switch adjustable 6. Doppler sound: ≥20 files
Color/PDI mode
1. Wall filter ≥ 6 gears adjustable 2. Color afterglow: 2DB---80DB
3. Color priority: 1-255 4. Pulse frequency: ≥ 8 gears adjustable
-Measurement and calculation
1. B/C mode routine measurement: distance, area, circumference, volume, angle, area ratio, distance ratio
2. Routine measurement in M mode: time, slope, heart rate, distance
3. Routine measurement in Doppler mode: heart rate, resistance index, pulsatility index, time, blood flow, peak blood flow
4. Obstetrics application measurement: double parietal diameter, femur length, head circumference, abdominal circumference,
head arm diameter, gestational sac length, first stage, second stage, general obstetrics, amniotic fluid index, routine
5. Gynecological B-mode application measurement 6. Heart B, M mode application measurement
7. Vascular PW mode application measurement 8. Small organ B mode application measurement
9. Urinary B-mode application measurement 10. Pediatric B mode application measurement
11. Abdominal B mode application measurement
Standard configuration and optional accessories
Standard Configuration:
1 x full digital host (128G hard disk built in the host); 1 x 3C6C convex array probe; 1 x 7L4C linear array probe;
1 x user manual;1 x power cable;
Optional accessories:
6E1C transvaginal probe; 6C15C micro-convex probe; 6I7C rectal probe; USB report printer; black and white video printer;
color video printer; puncture frame; trolley;
