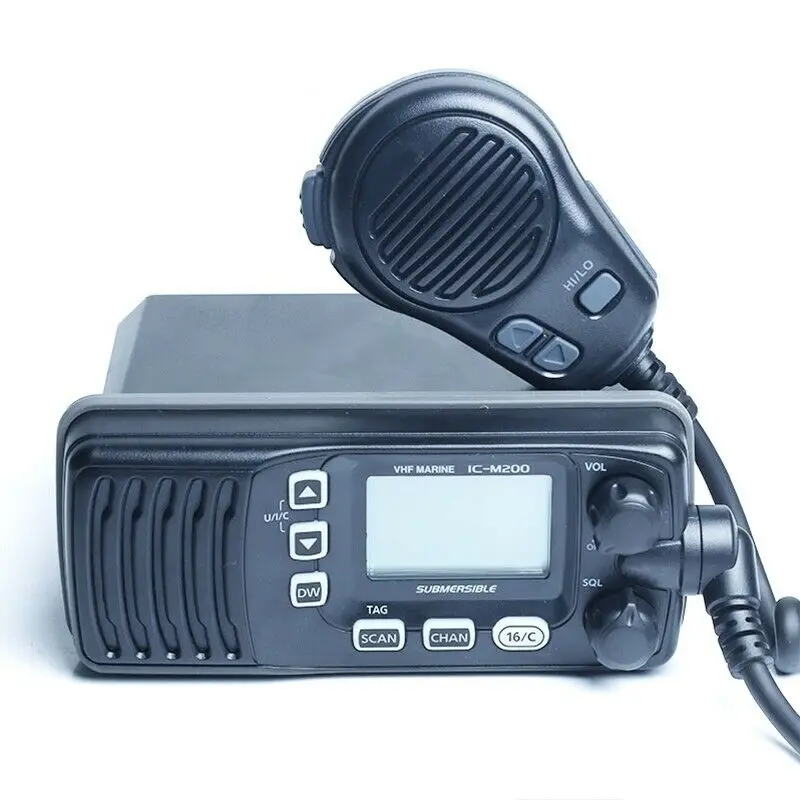

Good Quality IC-M200 VHF Black Marine Radio

Good Quality IC-M200 VHF Black Marine Radio thumbnail-1
Good Quality IC-M200 VHF Black Marine Radio photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
IC-M200 VHF Black Marine Radio
Contact Supplier Request Quote Chat Now
Fujian Boye Trade Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number IC-M200 VHF Black Marine Radio
Walkie Talkie Type
Marine&Car radio
Model Number
IC-M200
Dimensions
160*43*13cm
Frequency Range
136-174MHz VHF
Weight: (g)
1200
Product Name
Marine TRANSCEIVER
Warranty
12 Months
Output Power
High: 55W Low: Approx25w
Material
PVC+ABS
Display
Large LCD Display
Applications
Car


The M200 series gives you the same performance and feature set as the M324 series, but now within a smaller package to fit in tight spaces. Priced at a great value the M330 series still includes the exclusive AquaQuake™ draining feature, 25 watts of power, IPX7 Waterproof rating, scan/select scan and Icom’s exclusive user interface for ease of use.



  • Output Power: 25W

  • GPS: Supplied external GPS antenna (G version)

  • Waterproof Rating: IPX7

  • Versions: Black or Super White / With or without GPS

  • GPS Capability

  •  channels: 88

  • frequency:136-174Mhz



Compact and Easy to Use

The M330’s small size makes it easy to install into vessels with limited space. The dot-matrix display is clear and easy to read. A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.



Additional Features

  • AquaQuake™ draining function

  • Built-in Class D DSC with a CH70 dedicated receiver

  • Common NMEA interface for external GPS/NAV connection

  • Tag scan and favorite channel functions

  • Dual/tri-watch function for monitoring CH16 and/or call channel

  • Priority scan function

  • Display and keypad backlighting

  • Weather channel with weather alert

  • 3-digit or 4-digit channel display selectable



Features

Compact and IPX7 submersible body
Powerful front mount speaker
Class leading receiver performance
Large easy-to-see LCD
Dualwatch and Tri-watch function
Favourite channel function
AquaQuake draining feature
Specifications

General

Frequency range
Tx: 156.025–162000MHz
Rx: 156.025–162.025MHz
Usable channel groups: INT, USA, CAN channel
Type of emission: 16K0G3E (FM)
Power supply voltage: 13.8V DC nominal  (11.7V–15.9V DC)
Current drain
Tx (at 25W output) 5.5A (Maximum)
Rx (Maximum audio) 1.5A (Maximum)
Operating temperature range: –20°C to +60°C
Antenna impedance: 50Ω
Dimensions: (W×H×D) 153×67×133 mm
Transmitter

Output power
25W (High power)
1W (Low power)
Modulation: Variable reactance frequency modulation
Max. frequency deviation: ±5kHz
Frequency stability: ±5ppm
Spurious emissions
Less than –70dBc (High power)
Less than –56dBc (Low power)
Adjacent channel power: More than 70dB
Audio harmonic distortion: Less than 10% (at 60% dev.)
Residual modulation: More than 40dB
Receiver

Intermediate frequency
1st: 21.7MHz
2nd: 450kHz
Sensitivity: –14dBμ typ.
Squelch sensitivity: Less than –10dBμ
Adjacent channel selectivity: 75dB typical
Spurious response: 75dB typical
Intermodulation 75dB typical
Hum and noise: More than 40dB
Audio output power: 4.5W typical (at 10% distortion with a 4Ω load)




Package:

1 x Host

1 x Mic
1 x Metal Bracket
1 x Power Cord
1 x User Manual

 IC-M200 VHF Black Marine RadioIC-M200 VHF Black Marine RadioIC-M200 VHF Black Marine Radio
