AWT100-WF IOT Wireless Communication Device Smart Gateway With 4G Wifi MQTT Uplink and RS485 Modbus-RTU Downlink

Name: AWT100-WF IOT Wireless Communication Device Smart Gateway With 4G Wifi MQTT Uplink and RS485 Modbus-RTU Downlink
Brand: Acrel
Availability: InStock

FOB Price

USD $40 - $52 / Piece

1 Piece(Min.Order)

Supply Ability 1 Kilogram / Kilograms per Month
Payment TermsT/T L/C Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Acrel		Place of Origin	China
Model Number	AWT100

Product Description

AWT100-4GHW IoT Smart 4G Gateway

At present, wireless technology has gradually become an important direction for the development and application of networks in the industrial Internet in the future due to its advantages of easy deployment, low construction cost, and wide applicable environment. AWT100 wireless communication terminal is a new wireless data acquisition device launched by Acrel.

The uplink communication includes 2G, 4G, NB, LoRa, LoRaWAN, and other communication modes. The downlink interface provides a standard RS485 data interface, which can easily connect power meters and RTUs, PLC, industrial computers, and other equipment, only need to complete the initial configuration, and you can complete the data acquisition of MODBUS equipment; at the same time, AWT100 series wireless communication the terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable.

● Upstream Methods: 4G LTE (Support Global Frequency Bands)

● Upstream Protocol: MODBUS-TCP, MQTT

● Downstream Methods: RS485 Interface

● Downstream Protocol: MODBUS-RTU

● Support: Up to 20~28 Acrel Devices with RS485 (MODBUS-RTU)

● Power Supply: 24Vdc (default); 85~265Vac/Vdc (via AWT100-POW Module)

● Standard&Certificate: CE-RED; IEC; LVD; EMC


	Various Upstream Communication Methods ● 4G (Support Global Frequency Bands) ● WiFi ● LoRa ● LoRaWAN ● Ethernet ● NB-IoT ● Profibus-DP ● GPS
	Collect Data from up to 30 Devices ● Downstream Communication: RS485 ● Downstream Protocol: MODBUS-RTU ● Data acquisition of 5 register address fields for each device

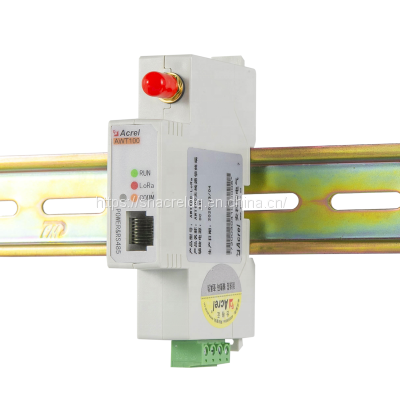

	Easy Installation ● RJ45 Interface ● 35mm standard DIN Rail
	Three Optional Power Supply ● DC 12V ● DC 24V ● AC/DC 220V→DC 5V (paired with AWT100-POW) ● 3 types of Power Supply can’t co-exist

1. Model Series-1

arameter Name	AWT100-4GHW	AWT100-NB	AWT100-LW	AWT100-LoRaHW
Working frequency	4G LTE-FDD: B1 B2 B3 B4 B5 B7 B8 B12 B13 B18 B19 B20 B25 B26 B28 4G LTE-TDD: B38 B39 B40 B41	NB-IoT: H-FDD B1 B3 B8 B5 B20	LoRaWAN: 470MHz LoRaWAN: 863~870MHz LoRaWAN: 920~928MHz	LoRa: 460~510MHz LoRa: 860~935MHz
Transmission rate	LTE-FDD Maximum downlink rate 150Mbps Maximum uplink rate 50Mbps LTE-TDD Maximum downlink rate130Mbps Maximum uplink rate 35Mbps CDMA Maximum downlink rate 3.1Mbps Maximum uplink rate 1.8Mbps GSM Maximum downlink rate 107Kbps Maximum uplink rate 85.6Kbps	Maximum downlink rate 25.2Kbps Maximum uplink rate 15.62Kbps	LoRa 62.5kbps	LoRa 62.5kbps
Downlink	RS485 Communication
Uplink	4G Communication	NB-IoT Communication	LoRaWAN Communication	LoRa Communication
SIM card voltage	3V,1.8V			/
Working current	Static power:≤1W,Transient power consumption:≤3W			Static power: ≤0.5W, Transient power Consumption:≤1W
Antenna interface	50Ω/SMA(Faucet)
Serial port type	RS-485
Baud rate	4800bps,9600bps,19200bps,38400bps(default 9600bps)
Operating Voltage	DC24V /AC/DC220V①
Operating temperature	-10℃~55℃
Storage temperature	-40℃~85℃
Humidity range	0~95% Non-condensing

2. Model Series-2

Parameter name	AWT100-GPS	AWT100-WiFiHW	AWT100-CE	AWT100-DP
Work	Positioning accuracy: 2.5-5m	Support 2.4G&5G frequency band WiFi rate: 115200bps	Ethernet rate 10/100M adaptive	Profibus address: 1~125. (Note)
Downlink	RS485 Communication
Uplink	GPS positioning	WiFi wireless	Ethernet communication	Profibus communication
Working current	Static power consumption:≤1W,transient power consumption:≤3W			Static power consumption: ≤0.5W, transient power consumption: ≤1W
Interface	50Ω/SMA(Faucet)		RJ45	DP9
Serial port type	RS-485 Communication
Baud rate	4800bps,9600bps,19200bps,38400bps(Default 9600bps)
Operating Voltage	DC24V or AC/DC220V①
Operating temperature	-10℃~55℃
Storage temperature	-40℃~85℃
Humidity range	0~95% Non-condensing

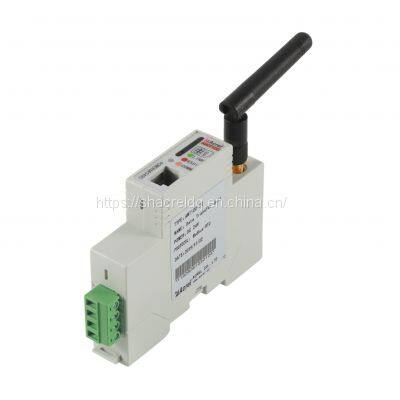

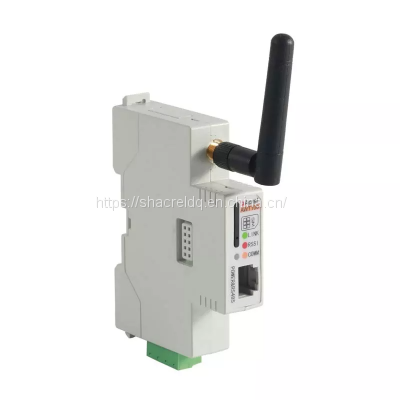

Front View	Side View

PIN/Terminal Overview of AWT100-4GHW Gateway and AWT100-POW Power Module

Wiring Diagram of AWT100-4GHW (24Vdc Power Supply via default Configuration)

Wiring Diagram of AWT100-4GHW (85~265Vac Power Supply via AWT100-POW Power Moduel)

RS485 to 4G

Solution Structure

RS485 to 4G

Solution Illustration

LoRa to 4G

Solution Structure

LoRa to 4G

Solution Illustration
