Aluminum High Precision Automatic Customized Transverse Cutting Equipment

seaworthy packing

Summary
A flat sheet of material is not actually produced by steel mill as a flat sheet.  In reality, a flat sheet of material starts its life as part of a coil of material.  A Cut-To-Length Line will uncoil the material, level it, and then cut it to the required length and stack it.  The end product produced by a Cut-To-Length Line is a flat sheet of material cut to a very precise length tolerance.  When considering a Cut-To-Length and the proper line configuration for your application, there are several variables you should consider: the thickness of material, the type of material, length of the sheets to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation.

Technical process
1: Coil saddle
2: Loading car

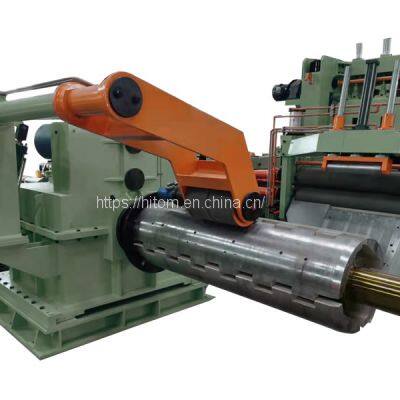

3: Hydraulic cantilever arm uncoil + hydraulic support
4: Guiding plat for feeding device
5: Pinch and 4-hi leveling machine
6: Loop
7: Side guiding & deviation correcting device
8: Pinch & 5 roller fine leveler
9: Pneumatic shearing machine
10: Belt conveyor
11: Pnumatic discharging frame
12: X type lifting table
13: Unloading car
14: Hydraulic system
15: Pneumatic system
16: Electrical control system
