LINKHOU High Performance Internal Coaxial Telecentric Lens
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:

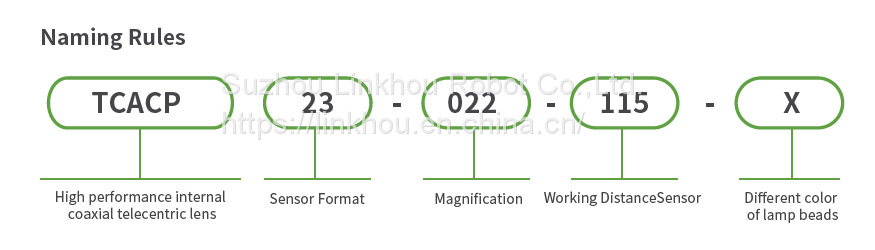

TCACP23-022-105-X
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LINKHOU Liquid Oblique Telecentric Lens SeriesNegotiableMOQ: 1 Piece -
LINKHOU 360° Measuring the Outer Wall Lens SeriesNegotiableMOQ: 1 Piece
-
LINKHOU 360° Catadioptric Measuring the Outer Wall LensNegotiableMOQ: 1 Piece
-
LINKHOU 360° Probe Type Measuring Inner Wall LensNegotiableMOQ: 1 Piece
-
LINKHOU Eight Equal Division Multi-view Lens SeriesNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
TCACP23-022-105-X
Condition
New

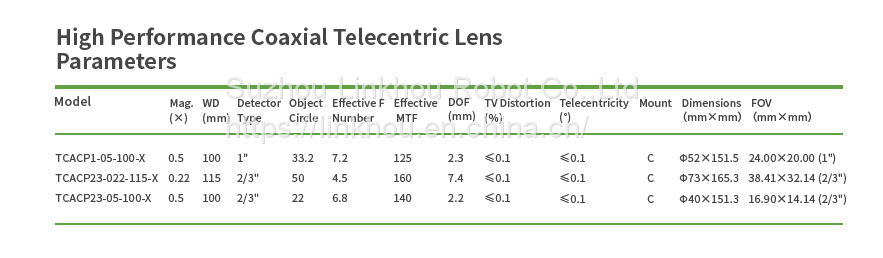

Double telecentric design
High resolution
Excellent telecentricity, Ultra low distortion
Extremely high lighting uniformity
Design for high-end inspection and precision measurement
The lens has a special optical design that eliminates the stray light generated inside the
lens and makes the light emerge in parallel. The illumination spot is more uniform than
that of the ordinary inner coaxial telecentric lens,saves the space occupied,and can
achieve the same lighting uniformity.
Main features
Compact design
More uniform illumination spot
Suitable for High precision and highly reflective materials measurement
Realize no stray light generated inside the lens
Applicable industry

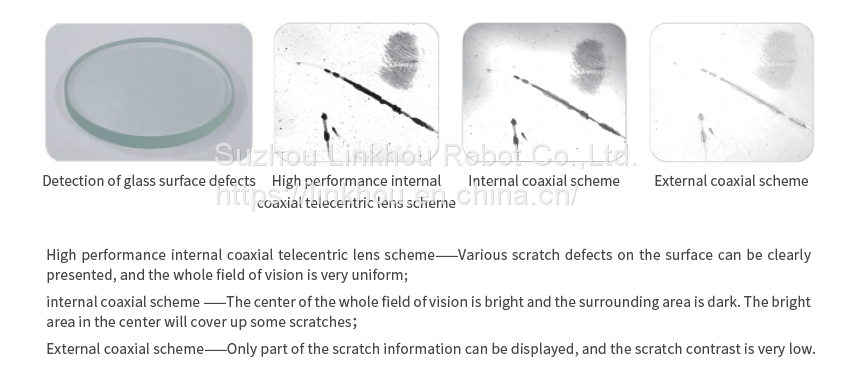

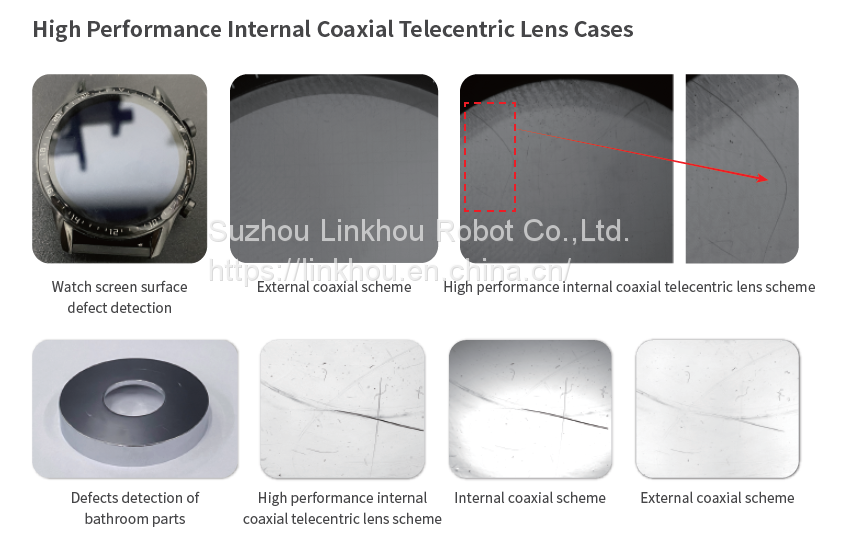

Defect detection
Character recognition
Visual system simplification
