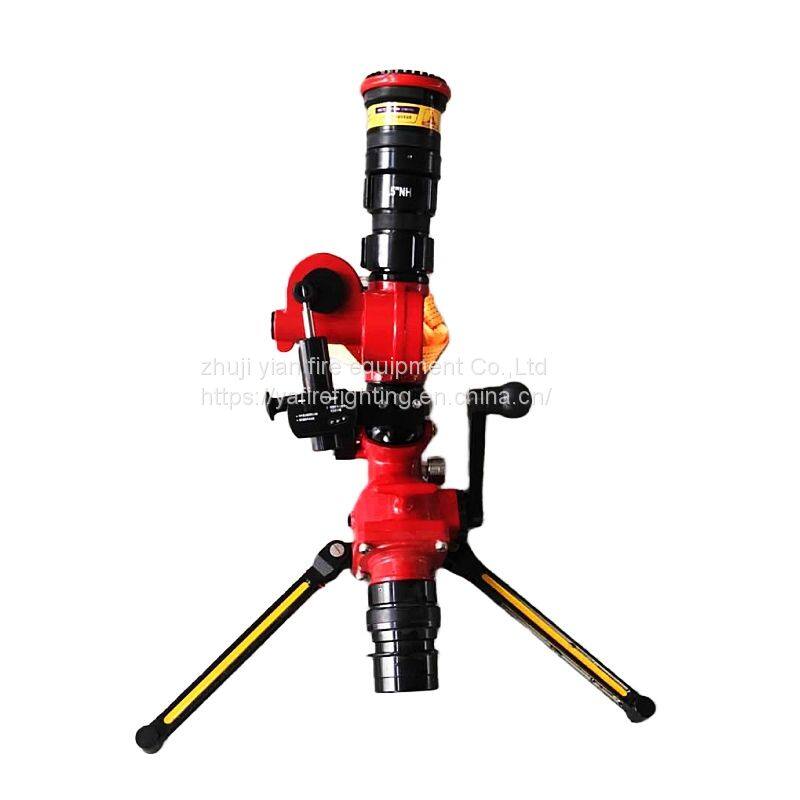

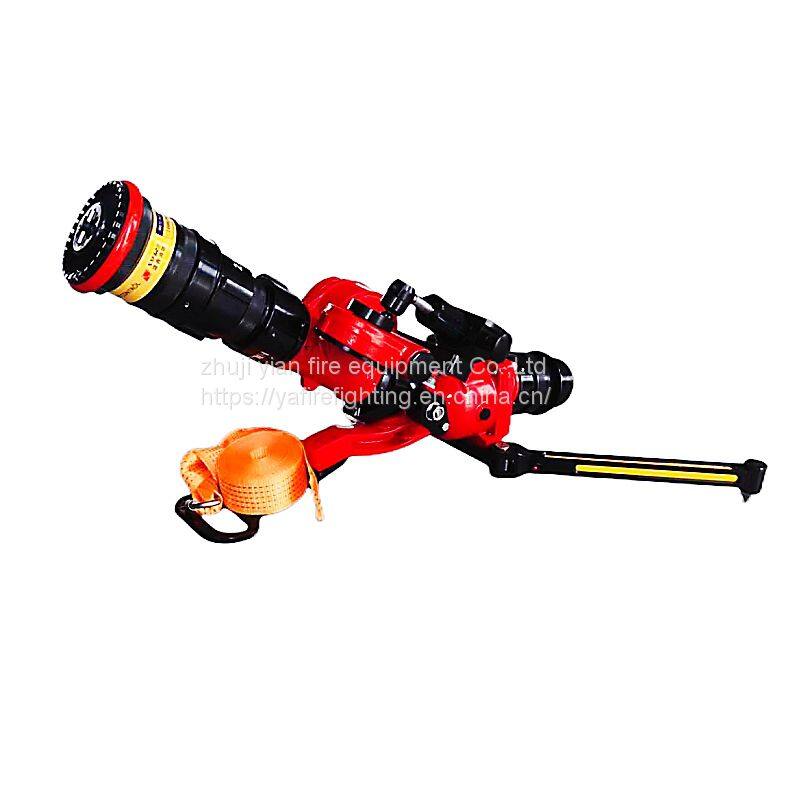

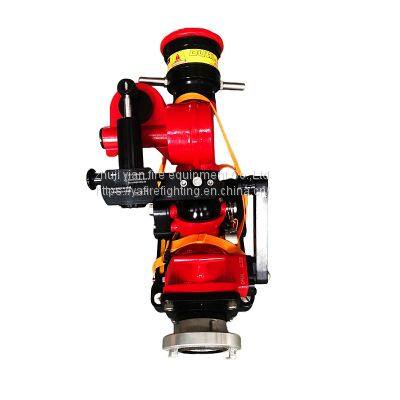

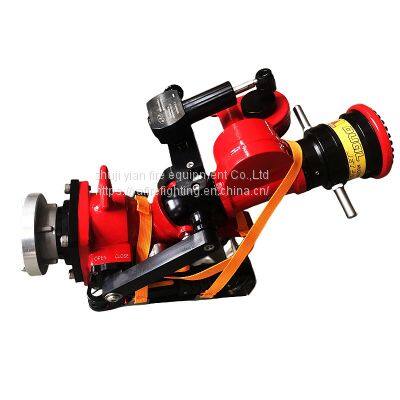

portable oscillating (self-swing) fire monitor water cannon PSY20-40 YAZB

portable oscillating (self-swing) fire monitor water cannon is mainly composed of base, water inlet pipe, rotary body, inlet pipe,pattern adjustment ring,handwheels,lifting handle and locking mechanism. The monitor/ cannon has a wide pressure range, a long firing range and can implement jet stream and fog pattern. It’s an important fire-fighting equipment for long-distance fire fighting. It could be divided into two series: fire water monitor and fire foam monitor.Fire water monitor/cannon is a fire-fighting equipment for spraying water and extinguishing general solid substances from a long distance, and fire foam monitor/cannon is a fire-fighting equipment for spraying air foam to extinguish Class A, B, and C liquid fires from a long distance. It is suitable for petrochemical enterprises, storage tank farms, hangars, warehouses, port terminals and other places, and an ideal vehicle-mounted fire monitor /cannon for fire trucks.
Portable oscillating (self-swing) fire monitor water cannon Features

1. Weight of monitor does not exceed 15kg, can be operated by one person;
2. Flow 20-30-40L/S (Adjustable);
3.Working pressure:0.8Mpa
4. Max shooting distance:≥65 meters,max flow: 40L/S, Max spray angle is 120°,max working pressure: 1.4Mpa;
5 Horizontal self-swing angle 20°/30°/40°(three swing angles);
6.Range of vertical movement: 30°+ 80°,Manual/self-swing mode switching knob, pull the knob out to keep self-swing function, manual control of the jet direction, push the knob back to start the self-swing function;
7. The 360°rotary water inlet connector prevents the hose from knotting, and the hose can be connected without lifting the gun body;
8. Lightweight aluminum alloy material, hard anodized surface treatment, red spray treatment inside and outside;
9. 2 supporting feet, which can be folded for easy storage, and can be positioned for operation when the feet are opened, and there are spring buckles for positioning when the feet are opened and folded. Non-slip tungsten steel nails are installed on the feet to prevent sliding during operation, and the tungsten steel nail has a spring damping mechanism inside, which can be automatically adjusted on uneven roads and plays a role in buffering recoil. The valve locking device locks when the valve is closed, to avoid personal injury by opening the valve during the mobile operation.
