Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > HIgh Quality ATV630 Series Schneiders ac Power Inverter ac Variable Speed Drive 380-480V

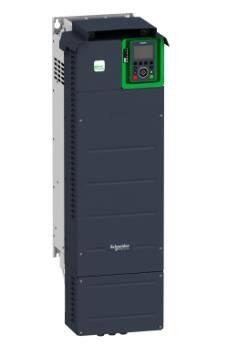

HIgh Quality ATV630 Series Schneiders ac Power Inverter ac Variable Speed Drive 380-480V

Boye Industrial Products Trading Co. LTD
HIgh Quality ATV630 Series Schneiders ac Power Inverter ac Variable Speed Drive 380-480V thumbnail-1
HIgh Quality ATV630 Series Schneiders ac Power Inverter ac Variable Speed Drive 380-480V thumbnail-2
HIgh Quality ATV630 Series Schneiders ac Power Inverter ac Variable Speed Drive 380-480V photo-1
HIgh Quality ATV630 Series Schneiders ac Power Inverter ac Variable Speed Drive 380-480V photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2016
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Specification

Brand Name

Schneider

Condition

100% New Original

Series

ATV630

Rated voltage

AC

Power phase number

Three

Technical consulting support

Yes

Application

Industrial Automation

Three-phase supply voltage: 200...240 V 50/60 Hz Wall-mounting drives
200...240 V IP 21/UL Type 1 drives:
THDi ≤ 44% at 100% load in Normal duty
0.75kw     1hp   ATV630U07M3
1.5kw       2hp   ATV630U15M3
2.2kw       3hp   ATV630U22M3
3kw           –      ATV630U30M3
4kw          5hp   ATV630U40M3
5.5kw   7.5hp   ATV630U55M3
7.5kw    10hp   ATV630U75M3
11kw     15hp   ATV630D11M3
15kw     20hp   ATV630D15M3
18.5kw  25hp   ATV630D18M3
22kw     30hp   ATV630D22M3
30kw     40hp   ATV630D30M3
37kw     50hp   ATV630D37M3
45kw     60hp   ATV630D45M3
55kw     75hp   ATV630D55M3
75kw   100hp   ATV630D75M3
Three-phase supply voltage: 380...480 V 50/60 Hz Wall-mounting Drives
380...480 V IP 21/UL Type 1 drives:With category C2 integrated EMC filter
0.75kw     1hp   ATV630U07N4
1.5kw       2hp   ATV630U15N4
2.2kw       3hp   ATV630U22N4
3kw            –      ATV630U30N4
4kw           5hp   ATV630U40N4
5.5kw    7.5hp   ATV630U55N4
7.5kw     10hp   ATV630U75N4
11kw      15hp   ATV630D11N4
15kw      20hp   ATV630D15N4
18.5kw  25hp    ATV630D18N4
22kw     30hp    ATV630D22N4
30kw     40hp    ATV630D30N4
37kw     50hp    ATV630D37N4
45kw     60hp    ATV630D45N4
Three-phase supply voltage: 380...480 V 50/60 Hz Wall-mounting drives
380...480 V IP 21/UL Type 1 drives:With category C3 integrated EMC filter
55kw       75hp   ATV630D55N4
75kw     100hp   ATV630D75N4
90kw     125hp   ATV630D90N4
110kw   150hp   ATV630C11N4
132kw   200hp   ATV630C13N4
160kw   250hp   ATV630C16N4
220kw   350hp   ATV630C22N4
250kw   400hp   ATV630C25N4
315kw   500hp   ATV630C31N4
Three-phase supply voltage: 500...690 V 50/60 Hz Wall-mounting drives
500...690 V IP 00 drives:With category C3 integrated EMC filter
1.5kw       2hp    ATV630U22Y6
2.2kw       3hp    ATV630U30Y6
3kw          –        ATV630U40Y6
4kw          5hp    ATV630U55Y6
5.5kw   7.5hp    ATV630U75Y6
7.5kw    10hp    ATV630D11Y6
11kw     15hp    ATV630D15Y6
15kw     20hp    ATV630D18Y6
18.5kw  25hp    ATV630D22Y6
22kw     30hp    ATV630D30Y6
30kw     40hp    ATV630D37Y6
37kw     50hp    ATV630D45Y6
45kw     60hp    ATV630D55Y6
55kw     75hp    ATV630D75Y6
75kw   100hp    ATV630D90Y6
Three-phase supply voltage: 380...440 V 50/60 Hz, Floor-standing drives without braking unit
380...440 V IP 21 drives with category C3 integrated EMC filter
THDi ≤ 44% at 100% load in Normal duty
110kw    –    ATV630C11N4F
132kw    –    ATV630C13N4F
160kw    –    ATV630C16N4F
200kw    –    ATV630C20N4F
250kw    –    ATV630C25N4F
315kw    –    ATV630C31N4F

Details Images






Product Tags: HIgh quality ATV630 series Schneiders , ac variable speed drive 380-480V
