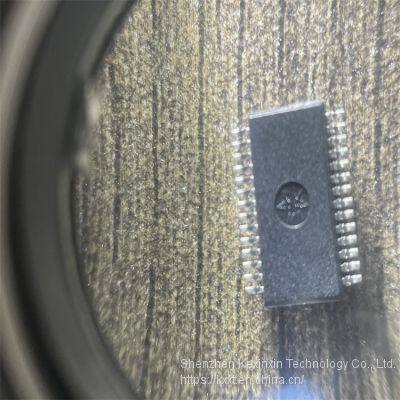

PL-2303HX Prolific SSOP-28 Bridge Controller

PL-2303 USB Bridge Controller

Features

Full compliance with the USB Specification v1.1 and USB CDC v1.1

Support the RS232 Serial interface

Support automatic handshake mode

Support Remote wake-up and power management

256 bytes buffer each for upstream and downstream data flow

Support default ROM or external EEPROM for device configuration

On chip USB transceiver

On chip crystal oscillator running at 12M Hz

Supports Windows 98/SE, ME, 2000, XP, Windows CE3.0, CE .NET, Linux, and Mac OS

28 Pins SOIC package

Overview

The PL-2303 operates as a bridge between one USB port and one standard RS232 Serial port. The two

large on-chip buffers accommodate data flow from two different buses. The USB bulk-type data is adopted

for maximum data transfer. Automatic handshake is supported at the Serial port. With these, a much higher

baud rate can be achieved compared to the legacy UART controller.

This device is also compliant with USB power management and remote wakeup scheme. Only minimum

power is consumed from the host during Suspend. By integrating all the function in a SOIC-28 package, this

chip is suitable for cable embedding. Users just simply hook the cable into PC or hub’s USB port, and then

they can connect to any RS-232 devices.

Supported Data Formats and Programmable Baud Rate Generator

The PL2303 USB-to-RS232 bridge controller supports versatile data formats and has a programmable baud

rate generator. The supported data formats are shown on Table 2. The programmable baud rate generator

supports baud rates up to 1.2M bps as shown in Table 3.

External EEPROM and Device Configuration

PL-2303 allows storing the configuration data in an external EEPROM. After reset, the first two bytes of

EEPROM are checked. If the value is 067Bh, the EEPROM is valid and the contents of the EEPROM are

loaded as the chip’s default parameters. Otherwise, the chip’s default setting is used. The content of

EEPROM is shown in Table 4 below.

The Device Configuration Register is used to control some vendor-specific functions. The meaning of each

bit in Device Configuration Register is shown in Table 5. Reserved and unused pins always set to the default

value.
