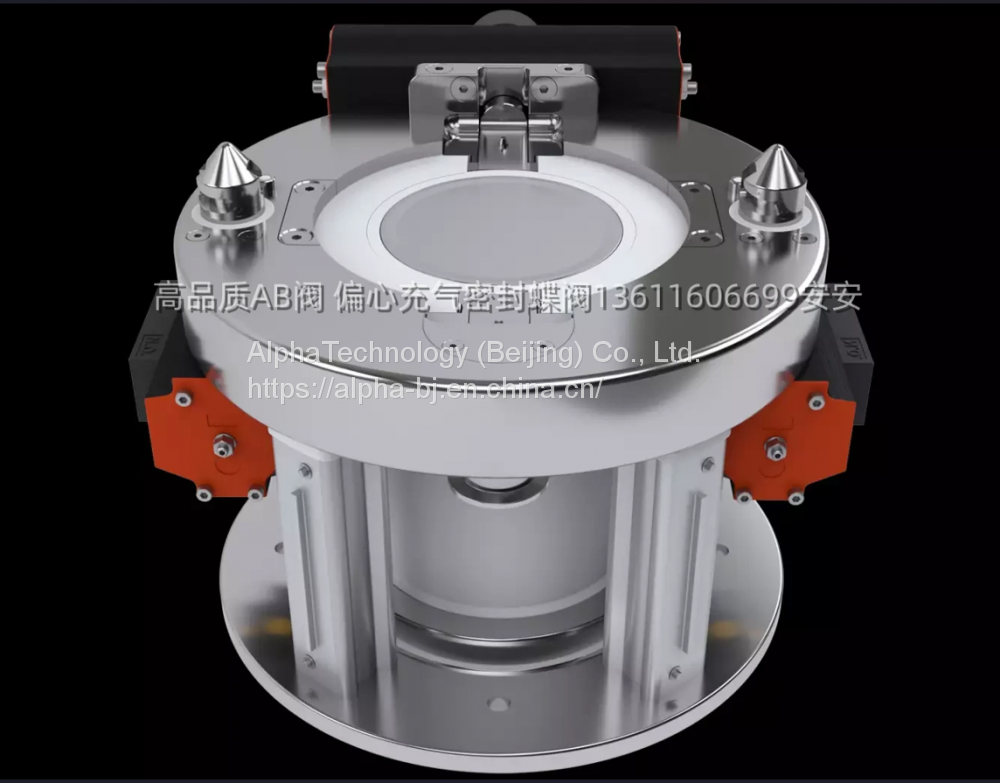

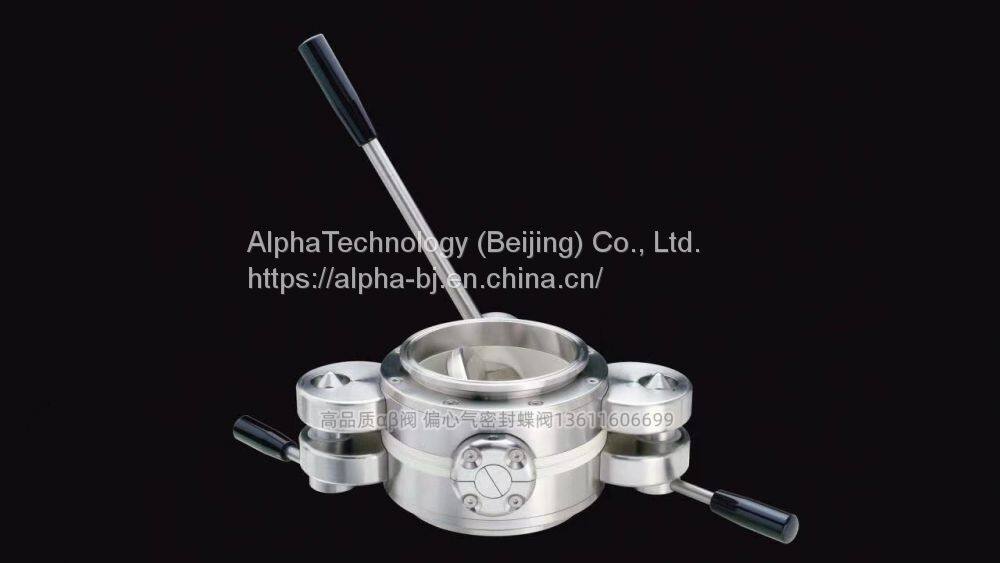

Medical Grade AB Valve High Closed System OEB5 Working Condition Isolator Dedicated Valve for High Activity Material Transfer αβ Valve

Split butterfly valve ,αβ Valve, also known as AB valve, is a highly engineered valve used for the closed transportation and transportation of sterile powder products or products that are harmful to human health. It plays a role in reducing cross contamination of products and protecting the personal safety of operators. αβ The valve is designed with a sealable SIP sterilization structure, which can be sealed by assembling valve accessories αβ Perform online sterilization on the valve itself, associated equipment, containers, IBC barrels or cans. This valve is mainly used in situations such as loading/unloading of isolators, loading/unloading of reactors, batching, grinding, sampling under closed conditions, and IBC transportation.

Split type butterfly valve（ αβ Transfer technology of valve sealing device

A fast and safe conveying system suitable for large quantities of materials

Tightness

Economical solution

Provided a solution for the rapid transfer and transmission of pharmaceutical production materials

describe

αβ The valve is composed of an active valve and a passive valve, using split butterfly valve technology. The transfer of items from one container to another is carried out under closed conditions, and the sterile state inside the container is not damaged or the diffusion of toxic substances inside the container is prevented during the transfer process.

Purpose of use

Sterile protection of products - * * * Sterile products are protected from external microorganisms during transfer

Protecting the safety of operators - preventing the leakage of highly allergenic and toxic substances during transfer, endangering the safety of operators

Avoiding product loss during product transfer

Effectively controlling dust diffusion during the transfer process

Reduce the possibility of cross contamination of products

Reduce equipment cost investment

Application Cases

- Transfer and packaging of sterile raw materials

- Loading and unloading of isolators

- Closed batching, loading, unloading, sampling, and crushing

- Sterile rubber stopper isolation transportation

- Transfer of toxic and allergenic substances

Field of use

Pharmaceutical, biochemical, food and beverage, disease control in nuclear industry

technical parameter

- Metal to metal nanoscale valve disc sealing

- Main part material: 316L stainless steel, surface electropolishing treatment

- Seal material: imported fluororubber

- Standard interface, customizable corresponding interface

- Valve switching and product transfer outside the container

- Complies with new GMP, FDA, EU and other production requirements

Specifications

- Standard model dimensions: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm

- Interface type: PN6, PN10, ANSI # 150, Tri Clamp

- Custom size: Accept non-standard size customization
