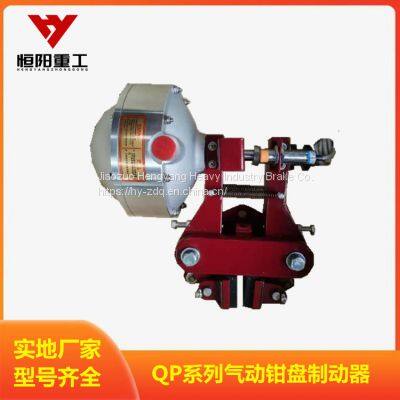

Hengyang Heavy Industry Pneumatic Caliper Disk Brake CQP10B-B Green Environmental Protection

Detailed description of QP (CQP) series pneumatic caliper disc brake:

The QP (CQP) series pneumatic caliper disc brakes are mainly used for braking and deceleration of various mechanisms in lifting, transportation, metallurgy, mining, port, construction and other machinery.

Usage conditions

Environmental temperature: -5 ℃~40 ℃

● Working air pressure: 5-7bar for QP series; The CQP series is ≤ 7bar.

Outdoor rain and snow erosion or corrosive gases and media should be corrosion-resistant products.

The air source should be free of oil, water, and other impurities.

main features

The QP series adopts spring braking and pneumatic release; The CQP series is pneumatic braking with spring release.

The overall structure is simple, small in size, and lightweight.

Asbestos free brake pads, green and environmentally friendly.

The installation of the brake pad adopts a spring clamp type, which is convenient and fast to replace.

● The brake pad is easy to adjust after being worn.

Each disc diameter of the QP series brake can be adjusted for four levels of braking torque.

All power sources do not need to be set separately and can be connected to the existing air compression station for grid use. They can be added to the gas supply line

Equipped with a speed control valve, the braking time can be adjusted steplessly.
