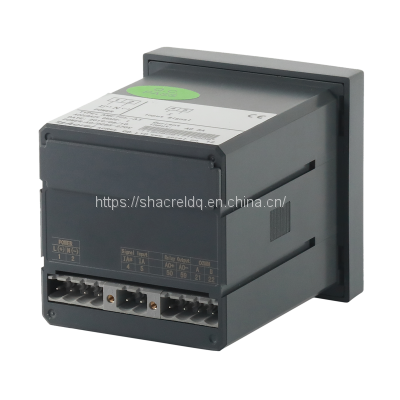

Panel Mounted 1-circuit AC Current Ammeter Power Supply 85~265V For Distribution Cabinet AMC72L-AI

                                            Single-phase AC Digital Ammeter AMC72L-AI

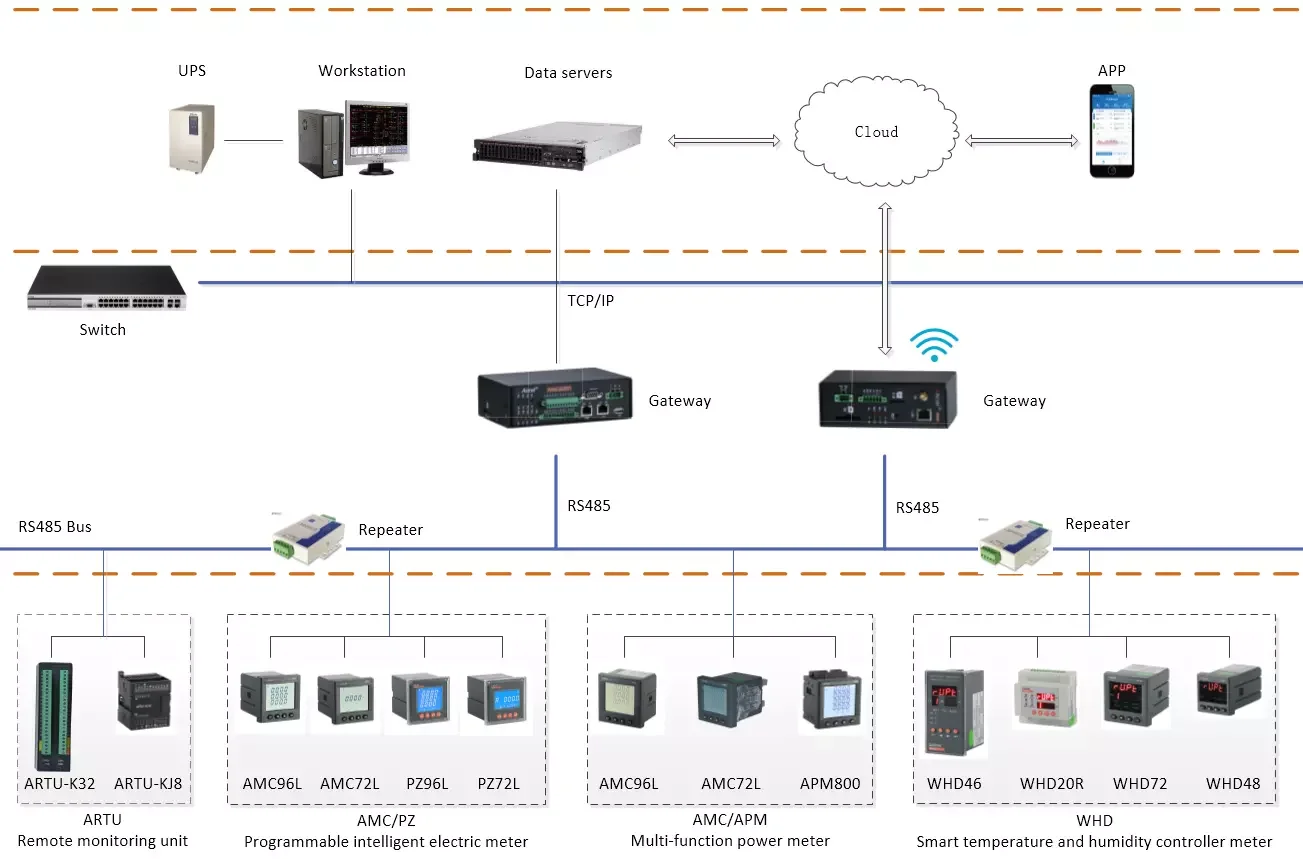

AMC series programmable intelligent meters, adopting AC sampling technology, can directly or indirectly measure the electric voltage and current of a single-phase or three-phase grid. It can be used for local display, and connecting industrial control devices to form measuring control systems.

This series of meters support an RS-485 port, adopting the Modbus-RTU protocol. Analog output, alarm output, and switching input/output can be selected. Based on different requests, by pressing the keys, parameters of ratio, alarm, communication, etc. can be modified.

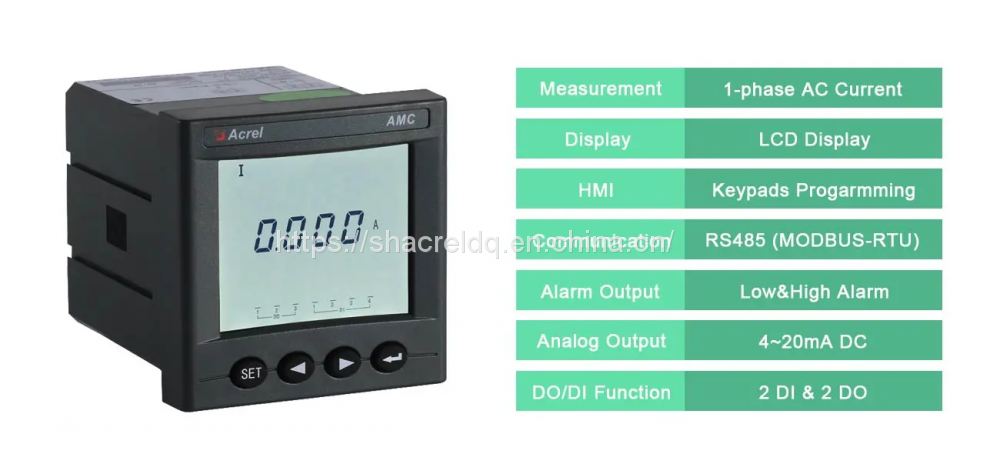

● Measurement: 1-phase AC Current

● Accuracy: 0.5%

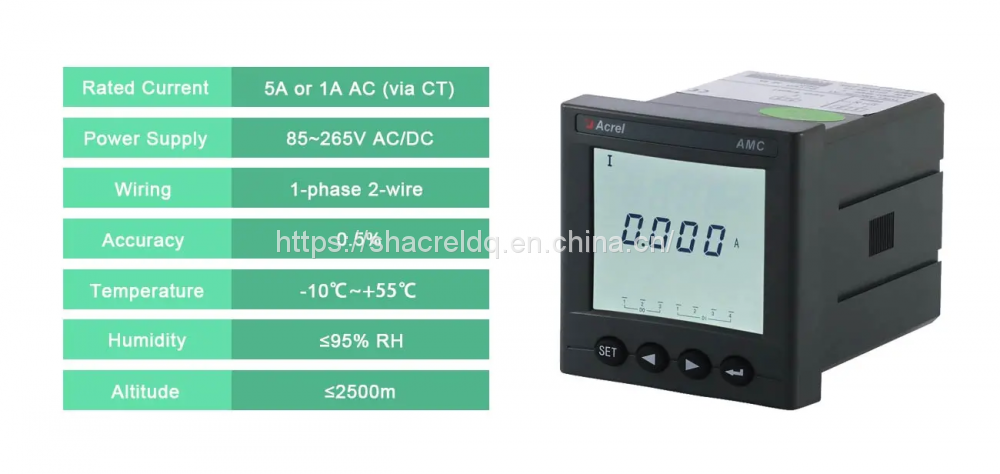

● Rated Current: -/5A AC or -/1A AC (via CT)

● Power Supply: 85~265V AC/DC

● Standard&Certificate: CE Certificates

Optional Function

● Communication: RS485 (MODBUS-RTU)

● Alarm Output: Low&High Current Alarm

● Analog Output: 4~20mA DC

● DI/DO Function: 2-channel DI&2-channel DO

● Standard&Certificate: CE Certificates

1. Function Overview

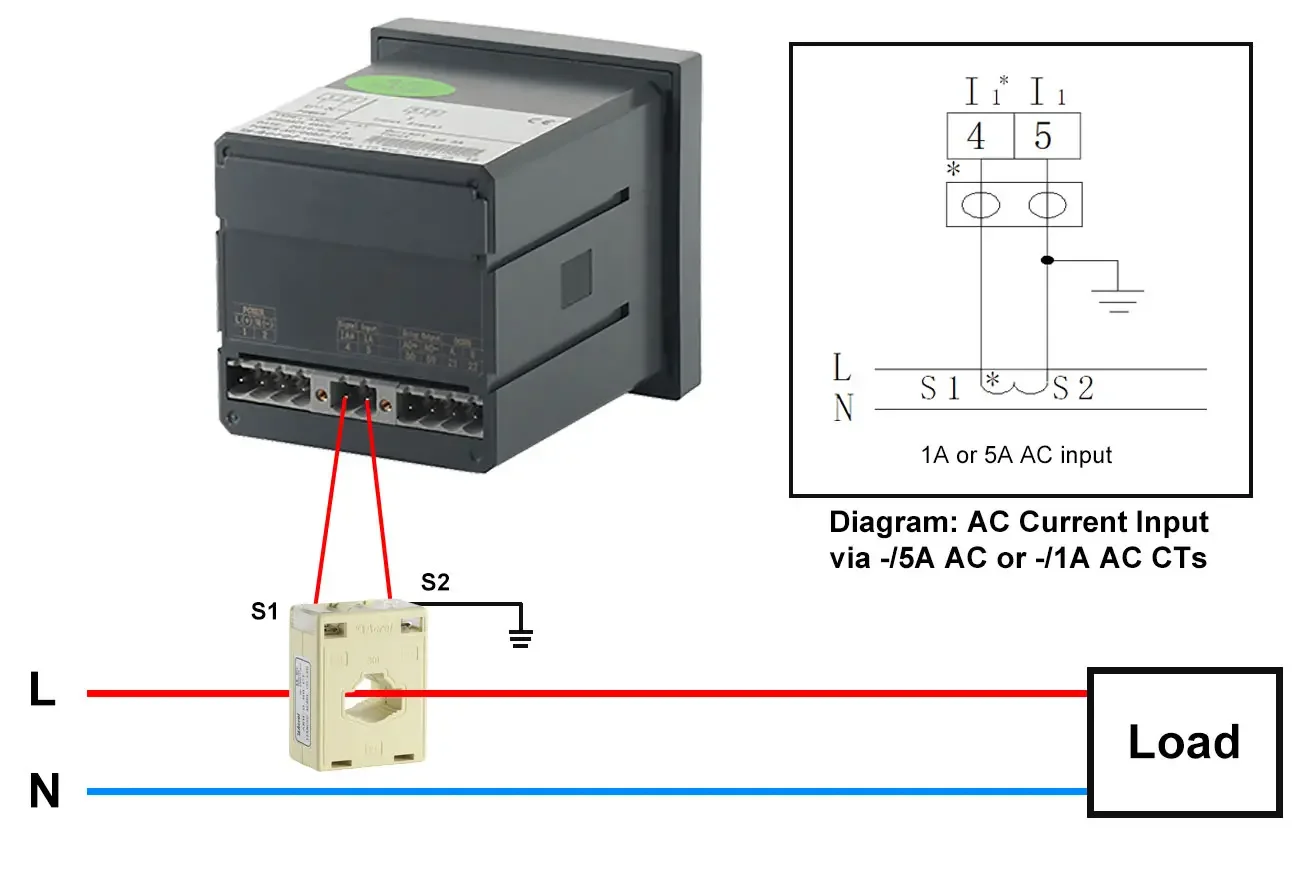

AC Current Signal (5A or 1A AC) Input via -/5A AC or -/1A AC CTs
