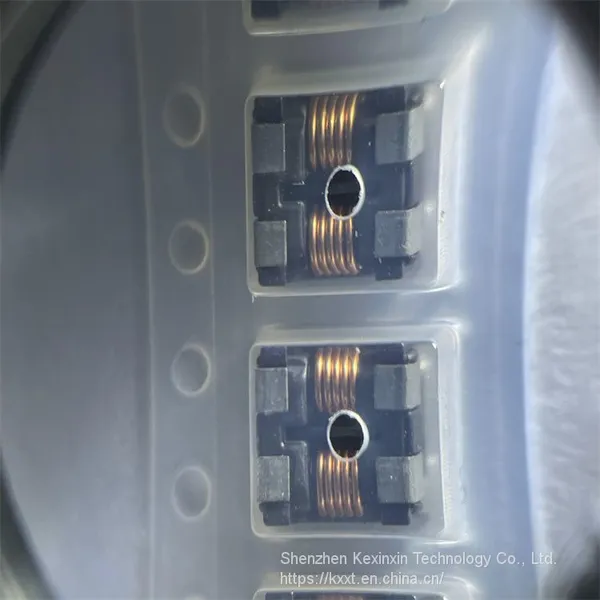

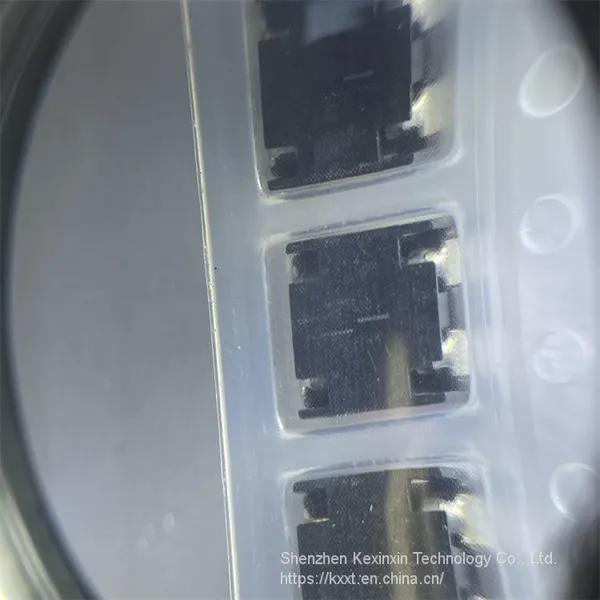

ACM7060-301-2PL-TL01 TDK Corporation 2 Line Common Mode Choke Surface Mount 300 Ohms @ 100 MHz 5A DCR 10mOhm
US$ 0.75 - 1.7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TDK Corporation
Place of Origin:
China
Model Number:
ACM7060-301-2PL-TL01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ACM4520V-142-2P-T00 TDK Common Mode Chokes / Filters 50V 1.0A 0.08ohms AEC-Q200US$ 0.55 - 1.2MOQ: 1 Piece -
ACT1210L-101-2P-TL00 TDK Common Mode Chokes / Filters 100uH 150mA 3.7Ohm CAN-BUS AEC-Q200 125degCUS$ 0.85 - 1.8MOQ: 1 Piece
-
YLM7060-272T COMMON MODE FILTER YIJIACOINUS$ 0.2 - 1MOQ: 1 Piece
-
ACM2012-201-2P-T002 TDK Common Mode Chokes / Filters 200ohms 250mohms 350mAUS$ 0.07 - 0.28MOQ: 10 Pieces
-
MPQ4462DN-AEC1-LF-Z Monolithic Power Systems (MPS) Switching Voltage Regulators AEC-Q100 3.5A,4MHz 36V Buck ConverterUS$ 1.5 - 5MOQ: 1 Piece
Brand Name
TDK Corporation
Place of Origin
China
Model Number
ACM7060-301-2PL-TL01
Type
Other, Common Mode Chokes
Package Type
Surface Mount
ACM7060-301-2PL-TL01
Category
Filters
Common Mode Chokes
Mfr
TDK Corporation
Series
ACM
Package
Tape & Reel (TR)
Cut Tape (CT)
KXX-Reel®
Product Status
Active
Filter Type
Power Line
Number of Lines
2
Impedance @ Frequency
300 Ohms @ 100 MHz
Current Rating (Max)
5A
DC Resistance (DCR) (Max)
10mOhm
Voltage Rating - DC
80V
Voltage Rating - AC
-
Operating Temperature
-40°C ~ 85°C
Ratings
-
Approval Agency
-
Features
-
Mounting Type
Surface Mount
Size / Dimension
0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max)
0.138" (3.50mm)
Package / Case
Horizontal, 4 PC Pad
