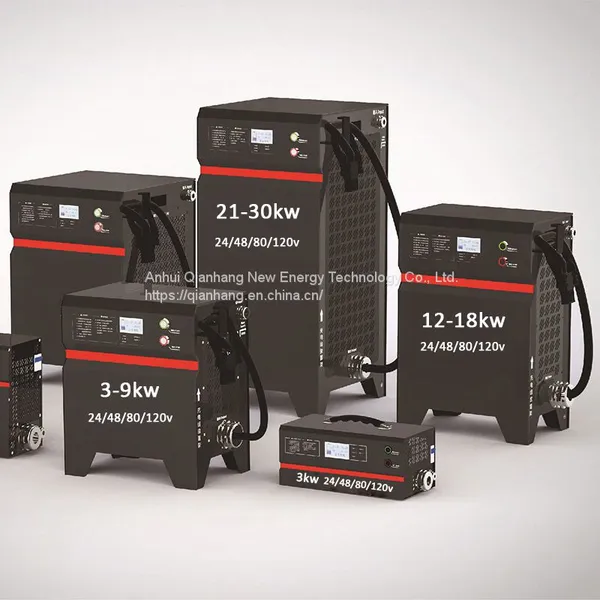

China DC fast forklift charger custom voltage 48v 80v 120v 24kw 21kw 18kw 15kw 12kw 9kw
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C PayPal
- 15 days
Product Details
| Brand Name: | Qianhang | Place of Origin: | China | Model Number: | QHC-48V100A |
| Output Power: | 4800w | Output Current: | 100A | Output Frequency: | 50-60hz |
| Output Voltage: | 48v | Input Voltage: | 110/208v, 220/380V AC |
Product Description
China DC fast forklift charger custom voltage 48v 80v 120v 24kw 21kw 18kw 15kw 12kw 9kw
The intelligent high-frequency forklift charger is designed for forklift battery charging and is suitable for cycling charging of various batteries. Using high-frequency switching power supply technology and modular combination structure design, the overall system is composed of power factor correction unit, power conversion unit, monitoring unit, display unit, communication protection unit, charging connection and other parts. The charging process is fully automatic, achieving intelligent charging management for various lithium batteries.
Output power: custom
Output voltage: 24-120 V (customizable)
Conversion efficiency: 95%
Output voltage Output power Output power | 6kw | 9kw | 12kw | 15kw | 18kw | 21kw | 24kw | 27kw | 30kw | |
24V(18-30V) | Output current | 200A | 300A | 400A | 500A | 600A | 700A | 800A | 900A | 1000A |
48V(30-60V) | Output current | 100A | 150A | 200A | 250A | 300A | 350A | 400A | 450A | 500A |
80V(40-100V) | Output current | 60A | 90A | 120A | 150A | 180A | 210A | 240A | 270A | 300A |
120V(60-132V) | Output current | 50A | 75A | 100A | 125A | 150A | 175A | 200A | 225A | 250A |
Module QTY | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
Rated input voltage | 110/208v, 220/380v (±20%) | |||||||||
Input frequency range | 47-63hz | |||||||||
conversion efficiency | ≥93% | |||||||||
heat dissipation | Fan cooling | |||||||||
connectors | Anderson REMA or custom | |||||||||
Protection function | Overvoltage, overcurrent, overpower, overheating, undervoltage, short circuit, reverse connection | |||||||||
