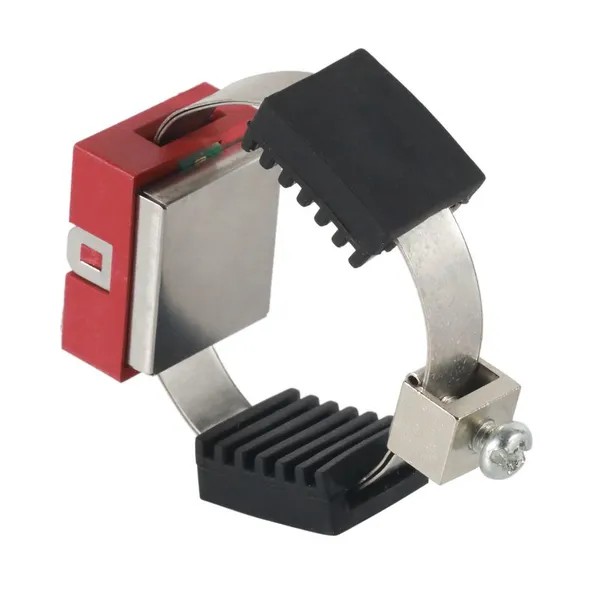

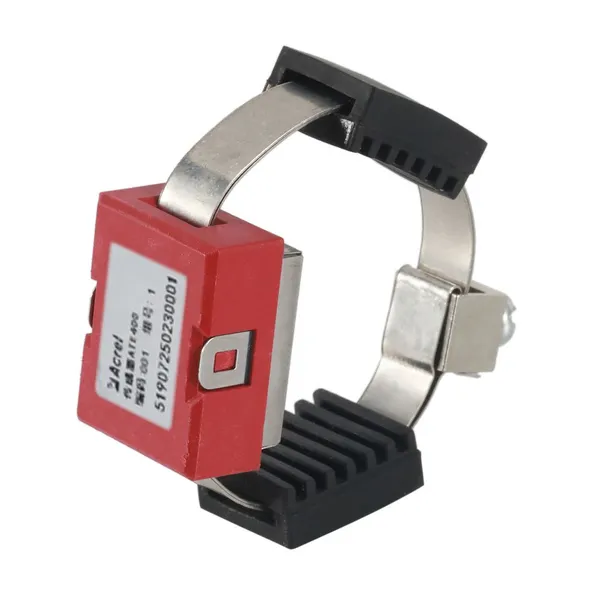

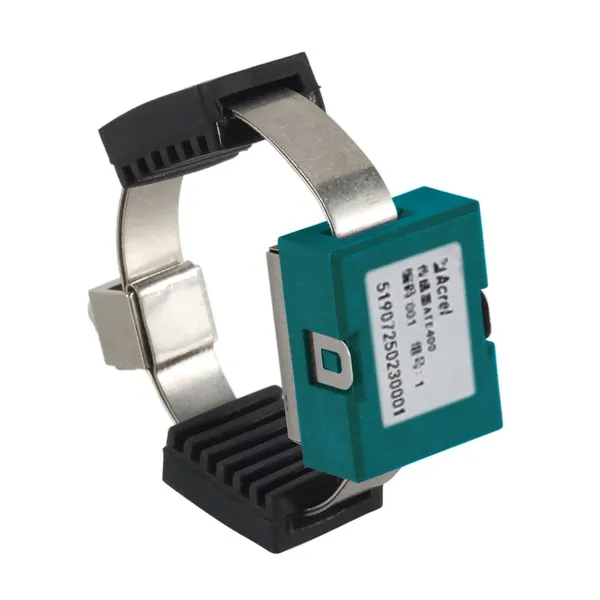

Acrel ATE400 CT Powered Tied Type Passive Wireless Temperature Sensor for Switchgear
US$ 41.5 - 41.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2006
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangsu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ATE400 Wireless Temperature Sensor With CT Sensing for Low-voltage and Medium Voltage SwitchgearsUS$ 41.5 - 41.5MOQ: 1 Piece -
Acrel ATE400 CT Powered Wireless Temperature Sensor 470mhz Fixed by Alloy strap With CertificateUS$ 41.5 - 41.5MOQ: 1 Piece
-
Acrel ATE400 Wireless Temperature Sensor With CT Sensing for Low-voltage and Medium Voltage SwitchgearsUS$ 41.5 - 41.5MOQ: 1 Piece
-
Acrel ATE400 Class 1 Wireless Temperature Sensor Fixed by Alloy Chips With CE CertificateUS$ 41.5 - 41.5MOQ: 1 Piece
-
Acrel ATC600-C Wireless Temperature Receiver With RS485 Communication for Switchgear/Busbar Temperature MonitoringUS$ 83 - 83MOQ: 1 Piece
Contact us
Overseas sales engineer: Christine Chu
email:Christine.chu@email.acrel.cn
Mob:+86 18706168051(whatsapp/skype/wechat)
ATE400 Wireless Temperature Sensor
Product Description
Characteristic
ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data. In addition, it can be transmitted to display device or remote intelligent monitoring system.
● Wireless frequency: 470MHz; ● Dimension: 25.82*20.42*12.8mm
● Wireless transmission distance: 150m; ● Installation: Belt
● Wireless transmission distance: 150m; ● Installation: Belt
● Fast sampling frequency: 15s; ● Accuracy: ±1℃
● CT-powered, starting current≥5A ● Temperature measuring range, -40℃~+125℃
Firstly, take 2 pieces of alloy chips through the mounting hole of metal hasp, meanwhile fold the alloy chips and fix the metal hasp in the middle of alloy chips. Secondly, take the folded alloy chips through one silicone gasket, the core of ATE400 and another silicone gasket in turn.Thirdly, circle the whole alloy chips around the mounting position and tension the alloy chips, then tighten the screw on the metal hasp. Finally, subtract the excess alloy chips. The complete installation process is shown in Figures 1 to 4.

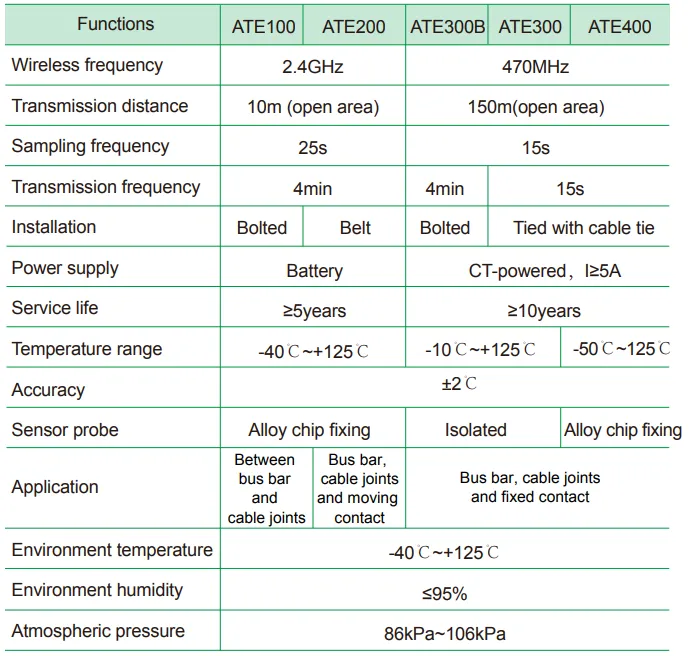

Specification

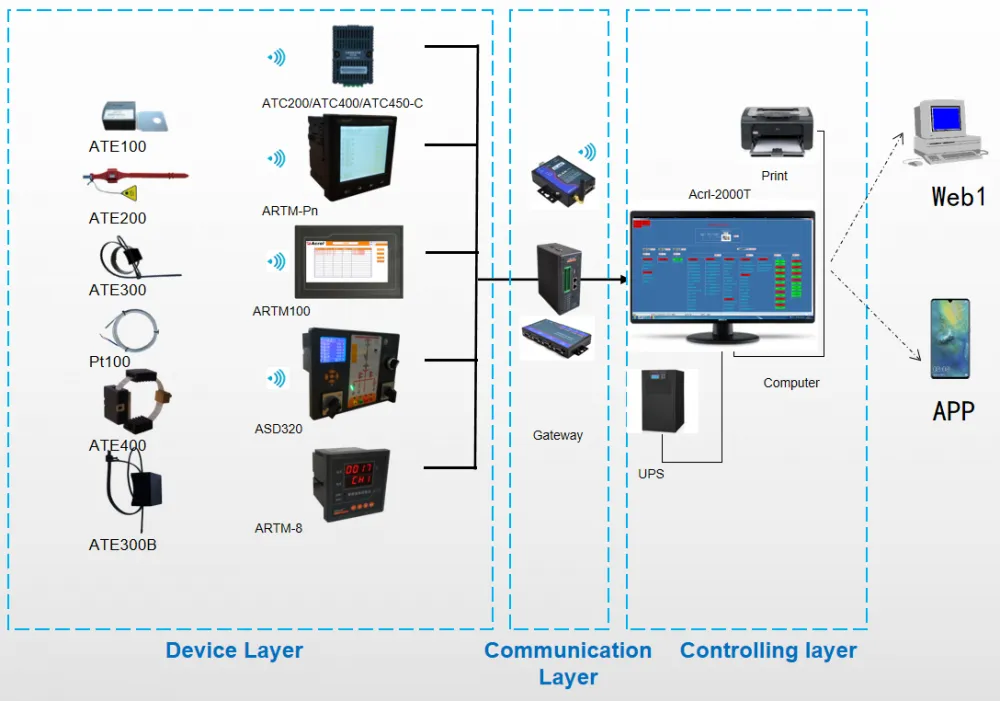

Typical Connection
Installation
