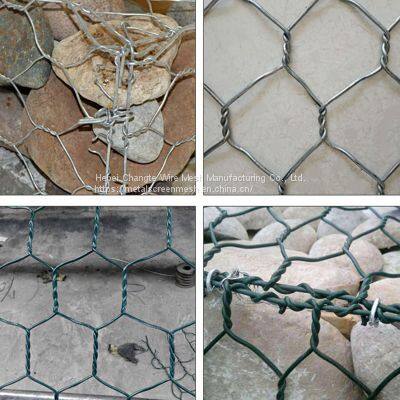

Gabion baskets is known as gabion box, gabion basket, gabion wall, gabion mattresses, etc. It is hexagonal wire netting and can be finished by hot-dipped galvanized, galvanized aluminum alloy or PVC coated.
It is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.

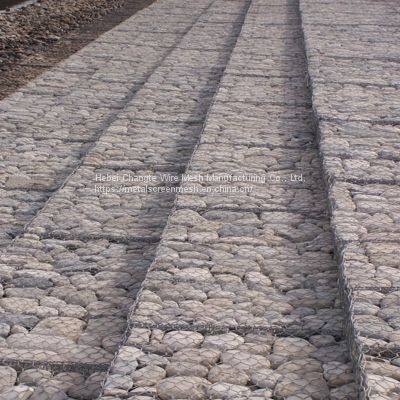

The Gabion basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.
Gabion basket 80*100mm 100*120mm | Mesh wire diameter | 2.7mm | zinc coating: 60g, 245g, ≥270g/m2 |
Edge wire diameter | 3.4mm | zinc coating: 60g, 245g, ≥270g/m2 | |
Tie wire diameter | 2.2mm | zinc coating: 60g, ≥220g/m2 | |
Gabion mattress 60*80mm | Mesh wire diameter | 2.2mm | zinc coating: 60g, ≥220g/m2 |
Edge wire diameter | 2.7mm | zinc coating: 60g, 245g, ≥270g/m2 | |
Tie wire diameter | 2.2mm | zinc coating: 60g, ≥220g/m2 | |
Customized sizes Gabion available | Mesh wire diameter | 2.0~4.0mm | Surface treatment: Heavy zinc coating |
