Mooring Chain Manufacturing Factory

Mooring Chain Manufacturing Factory thumbnail-1
Mooring Chain Manufacturing Factory thumbnail-2
Mooring Chain Manufacturing Factory thumbnail-3
Mooring Chain Manufacturing Factory thumbnail-4
Mooring Chain Manufacturing Factory thumbnail-5
Mooring Chain Manufacturing Factory photo-1
Mooring Chain Manufacturing Factory photo-2
Mooring Chain Manufacturing Factory photo-3
Mooring Chain Manufacturing Factory photo-4
Mooring Chain Manufacturing Factory photo-5
US$ 20 - 5000 MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
zhongyun
Place of Origin:
China
Model Number:
30mm~162mm
Contact Supplier Request Quote Chat Now
China Shipping Anchor Chain Jiangsu Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name zhongyun
Place of Origin China
Model Number 30mm~162mm
Part Other, anchor chain

Product Description
Drilling Platform Mooring Chain
1. Stud Link Anchor Chain Cable Introduction:
Stud Link Anchor Chain is widely used on Floating Equipment, Ships, Oil Rigs and Mooring Buoys.
We supply wide range of sizes and grades:
Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm
Can be supplied with CCS BV LR NK KR ABS DNV-GL RMRS IRS certificate etc.
Our chain can meet requirement of ISO1704, GB/T 549, JIS F3303, Gost 228, IACS, OCIMF, API and other international regulations.

2. Our Advantage:
Manufacturing Advantage:
1.We have more than 20 years experience in anchor chain production.
2.We keep some in stock can delivery in 1~5 days to meet urgent requirement.
3.Our factory is ISO9001 approval, OSHMS18001 approval, ISO14001 approval, API approval and type approval by all IACS members.
4.Advantage manufacturing facilities:
Advanced program-controlled chain production line; Automatic heat treatment machine; Automatic shot blasting machine.
5.Quality Control:Manufacturing process quality control from raw material to final product.
Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.
Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.
Load test machine up to 4000Ton.

3. About Our factory:

Drilling Platform Mooring Chain
Our main products:
Anchor chain and accessories (Stud Link Anchor Chain, Studless Anchor Chain, all types of shackles and connectors)
Mooring chain and accessories (Stud Link Mooring Chain, Studless Mooring Chain, Grade ORQ, R3, R3S, R4 and R5)
Deck outfitting (Chain Stopper, Chock, Bollard and Fairlead)
Marine anchors (Oridinary Anchor such as Hall, Spek and Stockless Anchor, High Holding Power Anchor such as AC-14, Danforth and Pool Achor)
Offshore and agricultural anchors (Flipper Delta, Stevpris MK5, MK6 and Stevshark)
Offshore mooring buoy (Steel Structured, Foam Filled and Navigation Buoys)

Products with high quality and service of professionality is what we pursue.
Please contact us if you have any queries, we will do our best to meet your requirements.


3. Product Dimensions:
Drilling Platform Mooring Chain
4. Technical Data
Proof Load and Breaking Load of Stud Link Anchor Chain:
Dia.             Proof load(KN)            Breaking load(KN) Weight
MM U1 U2 U3 U1 U2 U3 KG/M
11 36 52 72 52 72 102 2.65
12.5 46 66 92 66 92 132 3.42
14 58 82 116 82 116 165 4.29
16 76 107 150 107 150 216 5.61
17.5 89 127 179 127 179 256 6.71
19 105 150 211 150 211 301 7.91
20.5 123 175 244 175 244 349 9.20
22 140 200 280 200 280 401 10.60
24 167 237 332 237 332 478 12.61
26 194 278 389 270 389 556 14.80
28 225 321 449 321 449 642 17.17
30 257 368 514 368 514 735 19.71
32 291 417 583 417 583 833 22.43
34 328 468 655 468 655 937 25.32
36 366 523 732 523 732 1050 28.38
38 405 581 812 581 812 1190 31.62
40 448 640 896 640 896 1280 35.04
42 492 703 981 703 981 1400 38.63
44 538 769 1080 769 1080 1540 42.40
46 585 837 1170 837 1170 1680 46.34
48 635 908 1270 908 1270 1810 50.46
50 685 981 1370 981 1370 1960 54.75
52 739 1060 1480 1060 1480 2110 59.22
54 794 1140 1590 1140 1590 2270 63.86
56 851 1220 1710 1220 1710 2430 68.68
58 909 1290 1810 1290 1810 2600 73.67
60 969 1380 1940 1380 1940 2770 78.84
62 1030 1470 2060 1470 2060 2940 84.18
64 1100 1560 2190 1560 2190 3130 89.70
66 1160 1660 2310 1660 2312 3300 95.40
68 1230 1750 2450 1750 2450 3500 101.30
70 1290 1740 2580 1840 2580 3690 107.30
73 1390 1990 2790 1990 2790 3990 116.71
76 1500 2150 3010 2150 3010 4300 126.50
78 1580 2260 3160 2260 3160 4500 133.20
81 1690 2410 3380 2410 3380 4820 143.69
84 1800 2580 3610 2580 3610 5160 154.53
87 1920 2750 3850 2750 3850 5500 165.76
90 2050 2920 4090 2920 4090 5840 177.39
92 2130 3040 4260 3040 4260 6080 185.36
95 2260 3230 4510 3230 4510 6440 197.56
97 2340 3340 4680 3340 4680 6690 206.06
100 2470 3530 4940 3530 4940 7060 219.00
102 2560 3660 5120 3660 5120 7320 227.85
105 2700 3850 5390 3850 5390 7700 241.45
107 2790 3980 5570 3980 5570 7960 250.73
111 2970 4250 5940 4250 5940 8480 269.83
114 3110 4440 6230 4440 6230 8890 284.61
117 3260 4650 6510 4650 6510 9300 299.79
120 3400 4850 6810 4850 6810 9720 315.36
122 3500 5000 7000 5000 7000 9990 325.96
124 3600 5140 7200 5140 7200 10280 336.73
127 3750 5350 7490 5350 7490 10710 353.23
130 3900 5570 7800 5570 7800 11140 370.11
132 4000 5720 8000 5720 8000 11420 381.59
137 4260 6080 8510 6080 8510 12160 411.04
142 4520 6450 9030 6450 9030 12910 441.59
147 4790 6840 9560 6840 9560 13660 473.24
152 5050 7220 10100 7220 10100 14430 505.98
157 5320 7600 10640 7600 10640 15200 539.81
162 5590 7990 11180 7990 11180 15980 574.74

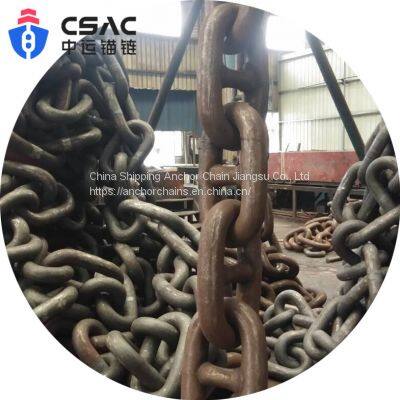

5. Product Photos:
Drilling Platform Mooring Chain
Drilling Platform Mooring ChainDrilling Platform Mooring Chain
Drilling Platform Mooring Chain

6. Production And Inspection Procedure:Drilling Platform Mooring Chain

Thirty Party Certificate:
Lloyd's Rigister of Shipping (LR)
American Bureau of Shipping (ABS)
Det Norske Veritas (DNV)
Germanischer Lloyd (GL)
Bureau Veritas (BV)
Korean Register of Shipping (KR)
Nippon Kaiji Kyokai (NK)
Registro Ltaliano Navale Group (RINA)
China Classification Society (CCS)
Russian Maritime Register of Shipping (RMRS)
Indian Register of Shipping (IRS)
Croatian Register of Shipping (CSR)
Due to limited space here, some photo is vague, you can contact us for clearer ones.
Drilling Platform Mooring Chain
7. Our factory:
Drilling Platform Mooring Chain
8. Exhibition:

Drilling Platform Mooring Chain

9. Our package and shipping:
1). Gunny bag, inside PVC bag and outside gunny bag +pallet
2). Wooden case or pp ton woven bag
3). Others as customer required

Drilling Platform Mooring Chain

10. Accessories:
Kenter shackle, end shackle, swivel forrunner, triplate, swivel shackle, mooring ring, LTM shackle, pear link, buoy shackle etc.

Drilling Platform Mooring Chain



China largest Marine Anchor Chain factory,Offshore mooring chain manufacturer,supplier,stockiest, for sales,ABS,LR,BV,DNV-GL,CCS,KR,NK all IACS,ship anchor chain,spot anchor chain,anchor chain in
stock,prompt anchor chain,super long warranty anchor chain,China best anchor chain factory,best quality anchor chain supplier.
