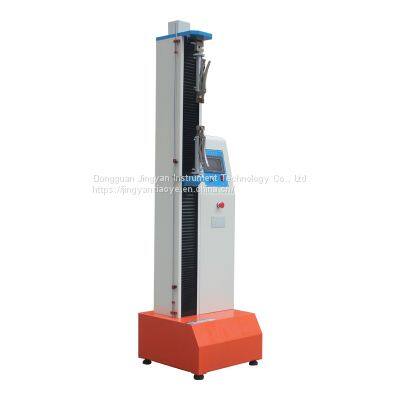

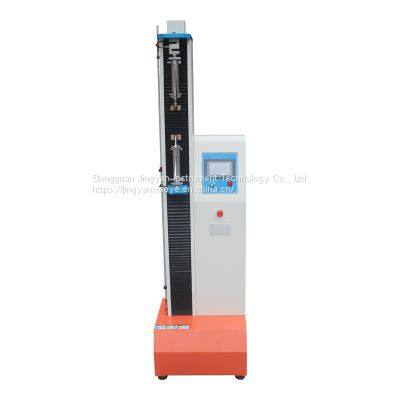

5kN Vertical Tensile Testing Machine Fabric Tensile Strength Tester Peel Strength Testing Machine

Force measurement accuracy

Within ±0.5% of the indicated value

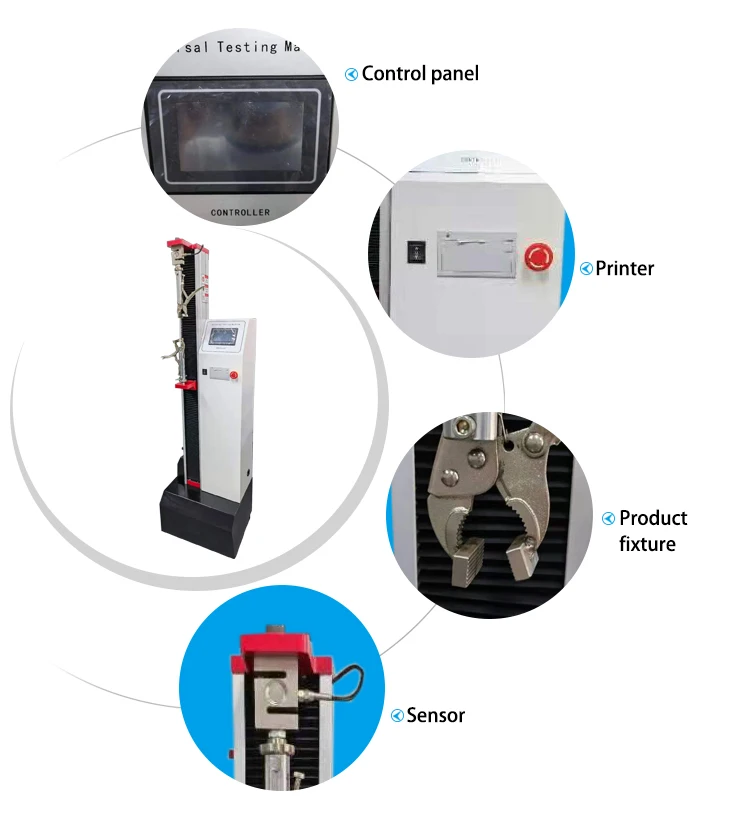

Display method

Touch screen (with print)

Unit switching

Kg, lb, N

Data sampling frequency

200times/sec

Test machine resolution

The maximum load is 1/±25000 yards, and the internal and external are not divided, and the resolution is unchanged.

Load cell

Basic configuration: pull and pressure sensor (maximum load)

Effective test width

600mm

Test speed range

100-500mm/min stepless speed regulation and 5 speed fixed speed (special test speed can also be customized according to customer requirements)

Displacement measurement accuracy

Within ±0.5% of the indicated value

Breakpoint ratio setting

0 to 99%, users can set appropriate breakdown time according to different materials

Test bench safety device

Up and down stroke limiting device

Overload protection

Over 10% of maximum load, automatic machine protection

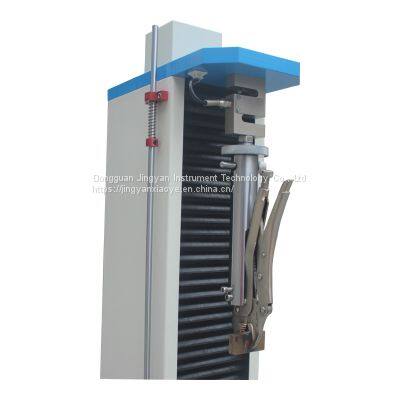

Fixture configuration

Set of stretching fixtures

Host size

550×400×1820mm

Host weight

About 150 Kg

power supply

220V/50Hz
