Mooring chain with CCS BV ABS NK DNV KR LR classification society certificate
Negotiable
/ Ton
1 Ton(Min.Order)
- 1000 Ton / Tons per Month
You May Like
Product Details
Part: | Other |
Product Description
Product Description
Mooring chain with CCS BV ABS NK DNV KR LR classification society certificate
1. Stud Link Anchor Chain Cable Introduction:Stud Link Anchor Chain is widely used on Floating Equipment, Ships, Oil Rigs and Mooring Buoys.
We supply wide range of sizes and grades:
Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm
Can be supplied with CCS BV LR NK KR ABS DNV-GL RMRS IRS certificate etc.
Our chain can meet requirement of ISO1704, GB/T 549, JIS F3303, Gost 228, IACS, OCIMF, API and other international regulations.
2. Our Advantage:
Manufacturing Advantage:
1.We have more than 20 years experience in anchor chain production.
2.We keep some in stock can delivery in 1~5 days to meet urgent requirement.
3.Our factory is ISO9001 approval, OSHMS18001 approval, ISO14001 approval, API approval and type approval by all IACS members.
4.Advantage manufacturing facilities:
Advanced program-controlled chain production line; Automatic heat treatment machine; Automatic shot blasting machine.
Our main products:
Anchor chain and accessories (Stud Link Anchor Chain, Studless Anchor Chain, all types of shackles and connectors)
Mooring chain and accessories (Stud Link Mooring Chain, Studless Mooring Chain, Grade ORQ, R3, R3S, R4 and R5)
Deck outfitting (Chain Stopper, Chock, Bollard and Fairlead)
Marine anchors (Oridinary Anchor such as Hall, Spek and Stockless Anchor, High Holding Power Anchor such as AC-14, Danforth and Pool Achor)
Offshore and agricultural anchors (Flipper Delta, Stevpris MK5, MK6 and Stevshark)
Offshore mooring buoy (Steel Structured, Foam Filled and Navigation Buoys)
Products with high quality and service of professionality is what we pursue.
Please contact us if you have any queries, we will do our best to meet your requirements.
3. Product Dimensions:
4. Technical Data
Proof Load and Breaking Load of Stud Link Anchor Chain:
We supply wide range of sizes and grades:
Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm
Can be supplied with CCS BV LR NK KR ABS DNV-GL RMRS IRS certificate etc.
Our chain can meet requirement of ISO1704, GB/T 549, JIS F3303, Gost 228, IACS, OCIMF, API and other international regulations.
2. Our Advantage:
Manufacturing Advantage:
1.We have more than 20 years experience in anchor chain production.
2.We keep some in stock can delivery in 1~5 days to meet urgent requirement.
3.Our factory is ISO9001 approval, OSHMS18001 approval, ISO14001 approval, API approval and type approval by all IACS members.
4.Advantage manufacturing facilities:
Advanced program-controlled chain production line; Automatic heat treatment machine; Automatic shot blasting machine.
5.Quality Control:Manufacturing process quality control from raw material to final product.
Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.
Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.
Load test machine up to 4000Ton.
3. About Our factory:Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.
Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.
Load test machine up to 4000Ton.
Our main products:
Anchor chain and accessories (Stud Link Anchor Chain, Studless Anchor Chain, all types of shackles and connectors)
Mooring chain and accessories (Stud Link Mooring Chain, Studless Mooring Chain, Grade ORQ, R3, R3S, R4 and R5)
Deck outfitting (Chain Stopper, Chock, Bollard and Fairlead)
Marine anchors (Oridinary Anchor such as Hall, Spek and Stockless Anchor, High Holding Power Anchor such as AC-14, Danforth and Pool Achor)
Offshore and agricultural anchors (Flipper Delta, Stevpris MK5, MK6 and Stevshark)
Offshore mooring buoy (Steel Structured, Foam Filled and Navigation Buoys)
Products with high quality and service of professionality is what we pursue.
Please contact us if you have any queries, we will do our best to meet your requirements.
3. Product Dimensions:
4. Technical Data
Proof Load and Breaking Load of Stud Link Anchor Chain:
Dia. | Proof load(KN) | Breaking load(KN) | Weight | ||||
MM | U1 | U2 | U3 | U1 | U2 | U3 | KG/M |
11 | 36 | 52 | 72 | 52 | 72 | 102 | 2.65 |
12.5 | 46 | 66 | 92 | 66 | 92 | 132 | 3.42 |
14 | 58 | 82 | 116 | 82 | 116 | 165 | 4.29 |
16 | 76 | 107 | 150 | 107 | 150 | 216 | 5.61 |
17.5 | 89 | 127 | 179 | 127 | 179 | 256 | 6.71 |
19 | 105 | 150 | 211 | 150 | 211 | 301 | 7.91 |
20.5 | 123 | 175 | 244 | 175 | 244 | 349 | 9.20 |
22 | 140 | 200 | 280 | 200 | 280 | 401 | 10.60 |
24 | 167 | 237 | 332 | 237 | 332 | 478 | 12.61 |
26 | 194 | 278 | 389 | 270 | 389 | 556 | 14.80 |
28 | 225 | 321 | 449 | 321 | 449 | 642 | 17.17 |
30 | 257 | 368 | 514 | 368 | 514 | 735 | 19.71 |
32 | 291 | 417 | 583 | 417 | 583 | 833 | 22.43 |
34 | 328 | 468 | 655 | 468 | 655 | 937 | 25.32 |
36 | 366 | 523 | 732 | 523 | 732 | 1050 | 28.38 |
38 | 405 | 581 | 812 | 581 | 812 | 1190 | 31.62 |
40 | 448 | 640 | 896 | 640 | 896 | 1280 | 35.04 |
42 | 492 | 703 | 981 | 703 | 981 | 1400 | 38.63 |
44 | 538 | 769 | 1080 | 769 | 1080 | 1540 | 42.40 |
46 | 585 | 837 | 1170 | 837 | 1170 | 1680 | 46.34 |
48 | 635 | 908 | 1270 | 908 | 1270 | 1810 | 50.46 |
50 | 685 | 981 | 1370 | 981 | 1370 | 1960 | 54.75 |
52 | 739 | 1060 | 1480 | 1060 | 1480 | 2110 | 59.22 |
54 | 794 | 1140 | 1590 | 1140 | 1590 | 2270 | 63.86 |
56 | 851 | 1220 | 1710 | 1220 | 1710 | 2430 | 68.68 |
58 | 909 | 1290 | 1810 | 1290 | 1810 | 2600 | 73.67 |
60 | 969 | 1380 | 1940 | 1380 | 1940 | 2770 | 78.84 |
62 | 1030 | 1470 | 2060 | 1470 | 2060 | 2940 | 84.18 |
64 | 1100 | 1560 | 2190 | 1560 | 2190 | 3130 | 89.70 |
66 | 1160 | 1660 | 2310 | 1660 | 2312 | 3300 | 95.40 |
68 | 1230 | 1750 | 2450 | 1750 | 2450 | 3500 | 101.30 |
70 | 1290 | 1740 | 2580 | 1840 | 2580 | 3690 | 107.30 |
73 | 1390 | 1990 | 2790 | 1990 | 2790 | 3990 | 116.71 |
76 | 1500 | 2150 | 3010 | 2150 | 3010 | 4300 | 126.50 |
78 | 1580 | 2260 | 3160 | 2260 | 3160 | 4500 | 133.20 |
81 | 1690 | 2410 | 3380 | 2410 | 3380 | 4820 | 143.69 |
84 | 1800 | 2580 | 3610 | 2580 | 3610 | 5160 | 154.53 |
87 | 1920 | 2750 | 3850 | 2750 | 3850 | 5500 | 165.76 |
90 | 2050 | 2920 | 4090 | 2920 | 4090 | 5840 | 177.39 |
92 | 2130 | 3040 | 4260 | 3040 | 4260 | 6080 | 185.36 |
95 | 2260 | 3230 | 4510 | 3230 | 4510 | 6440 | 197.56 |
97 | 2340 | 3340 | 4680 | 3340 | 4680 | 6690 | 206.06 |
100 | 2470 | 3530 | 4940 | 3530 | 4940 | 7060 | 219.00 |
102 | 2560 | 3660 | 5120 | 3660 | 5120 | 7320 | 227.85 |
105 | 2700 | 3850 | 5390 | 3850 | 5390 | 7700 | 241.45 |
107 | 2790 | 3980 | 5570 | 3980 | 5570 | 7960 | 250.73 |
111 | 2970 | 4250 | 5940 | 4250 | 5940 | 8480 | 269.83 |
114 | 3110 | 4440 | 6230 | 4440 | 6230 | 8890 | 284.61 |
117 | 3260 | 4650 | 6510 | 4650 | 6510 | 9300 | 299.79 |
120 | 3400 | 4850 | 6810 | 4850 | 6810 | 9720 | 315.36 |
122 | 3500 | 5000 | 7000 | 5000 | 7000 | 9990 | 325.96 |
124 | 3600 | 5140 | 7200 | 5140 | 7200 | 10280 | 336.73 |
127 | 3750 | 5350 | 7490 | 5350 | 7490 | 10710 | 353.23 |
130 | 3900 | 5570 | 7800 | 5570 | 7800 | 11140 | 370.11 |
132 | 4000 | 5720 | 8000 | 5720 | 8000 | 11420 | 381.59 |
137 | 4260 | 6080 | 8510 | 6080 | 8510 | 12160 | 411.04 |
142 | 4520 | 6450 | 9030 | 6450 | 9030 | 12910 | 441.59 |
147 | 4790 | 6840 | 9560 | 6840 | 9560 | 13660 | 473.24 |
152 | 5050 | 7220 | 10100 | 7220 | 10100 | 14430 | 505.98 |
157 | 5320 | 7600 | 10640 | 7600 | 10640 | 15200 | 539.81 |
162 | 5590 | 7990 | 11180 | 7990 | 11180 | 15980 | 574.74 |

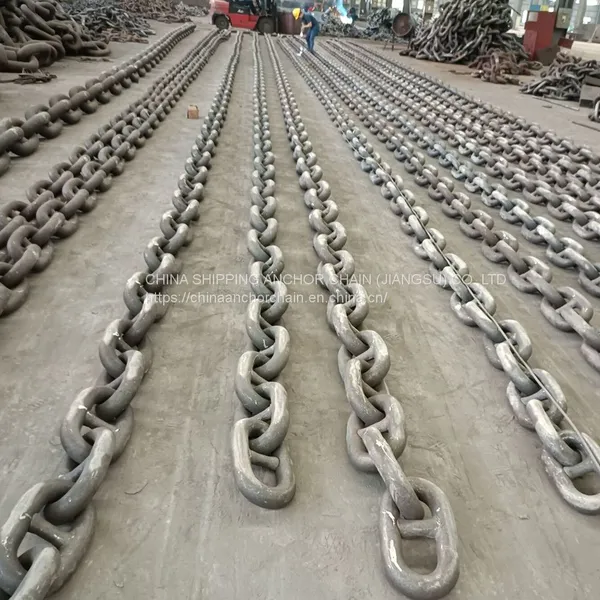

5. Product Photos:
6. Production And Inspection Procedure:
Thirty Party Certificate:
Lloyd's Rigister of Shipping (LR)
American Bureau of Shipping (ABS)
Det Norske Veritas (DNV)
Germanischer Lloyd (GL)
Bureau Veritas (BV)
Korean Register of Shipping (KR)
Nippon Kaiji Kyokai (NK)
Registro Ltaliano Navale Group (RINA)
China Classification Society (CCS)
Russian Maritime Register of Shipping (RMRS)
Indian Register of Shipping (IRS)
Croatian Register of Shipping (CSR)
Due to limited space here, some photo is vague, you can contact us for clearer ones.

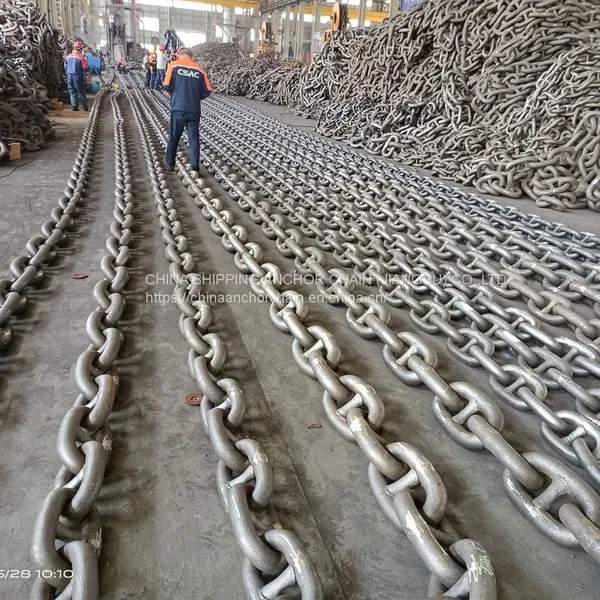

7. Our factory:
8. Exhibition:
9. Our package and shipping:
1). Gunny bag, inside PVC bag and outside gunny bag +pallet
2). Wooden case or pp ton woven bag
3). Others as customer required
Lloyd's Rigister of Shipping (LR)
American Bureau of Shipping (ABS)
Det Norske Veritas (DNV)
Germanischer Lloyd (GL)
Bureau Veritas (BV)
Korean Register of Shipping (KR)
Nippon Kaiji Kyokai (NK)
Registro Ltaliano Navale Group (RINA)
China Classification Society (CCS)
Russian Maritime Register of Shipping (RMRS)
Indian Register of Shipping (IRS)
Croatian Register of Shipping (CSR)
Due to limited space here, some photo is vague, you can contact us for clearer ones.
7. Our factory:
8. Exhibition:
9. Our package and shipping:
1). Gunny bag, inside PVC bag and outside gunny bag +pallet
2). Wooden case or pp ton woven bag
3). Others as customer required
10. Accessories:
Kenter shackle, end shackle, swivel forrunner, triplate, swivel shackle, mooring ring, LTM shackle, pear link, buoy shackle etc.
