TMG-A1200 AUTOMATIC SQUEEGEE GRINDER TYPE
video: https://youtu.be/kPBGWd7p94c
Faster, more precise and uncompromising easy to handle

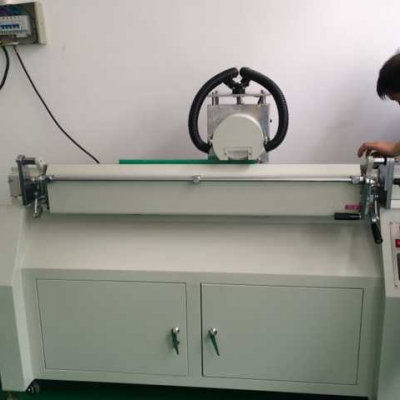

tamprinter Automatic Squeegee Grinder
Tamprinter-Squeegee Grinder
Automatically grinds printing squeegees of varying lengths by using a diamond-coated grinding disc and thus ensures a precise parallel grinding for the best possible printing results.
Standard features:
grinding by means of feed handwheel
electrically driven forward feed with the possibility to change the sense of rotation in advance motion
number of grinding operations - programmable
grinding wheel speed variable via potentiometer
pivotable squeegee holder to realize various grinding angles
angle adjustment is readable from scales
end of grinding feed traverse infinitely variable
integrated exhaust air blower
suitable to be used for all standard squeegee profiles
the squeegee rubber is clamped in a way to avoid any distortion
standard grinding lengths:
700 mm, 1000 mm, 1500 mm and 2000 mm

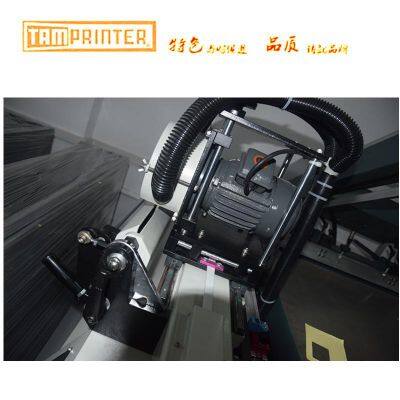

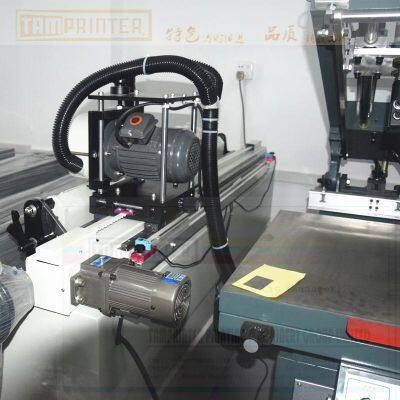

Machine Details
|
|
|

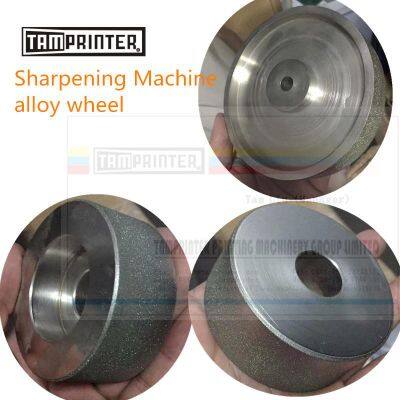

| diamond grinding wheel enables exact parallel grinding. | suitable to be used for all standard squeegee profiles. | control panel for programmable operations. |
Technical data:
| Model | 700 | 1000 | 1500 | 2000 |
max. grinding stroke |
700 mm | 1000 mm | 1500 mm |
2000 mm |
| grinding angle | 0-45° | 0-45° | 0-45° |
0-45° |
| speed of grinding wheel | 57 mm/sec | 57 mm/sec | 57 mm/sec |
57 mm/sec |
squeegee rubber thickness |
5-10 mm | 5-10 mm | 5-10 mm |
5-10 mm |
| electrical supply | 380 V 3phase | 380 V 3phase | 380 V 3phase | 380 V 3phase |
| compressed air connection | 6 bar | 6 bar | 6 bar | 6 bar |
| Dimensions (w x d x h): | 1360 x 600 x 1450 mm | 1660 x 600 x 1450 mm | 2160 x 600x 1450 mm | 2660 x 600 x1450 mm |
| weight | ca. 180 kgs | ca. 200 kgs | ca. 230 kgs | ca. 260 kgs |
