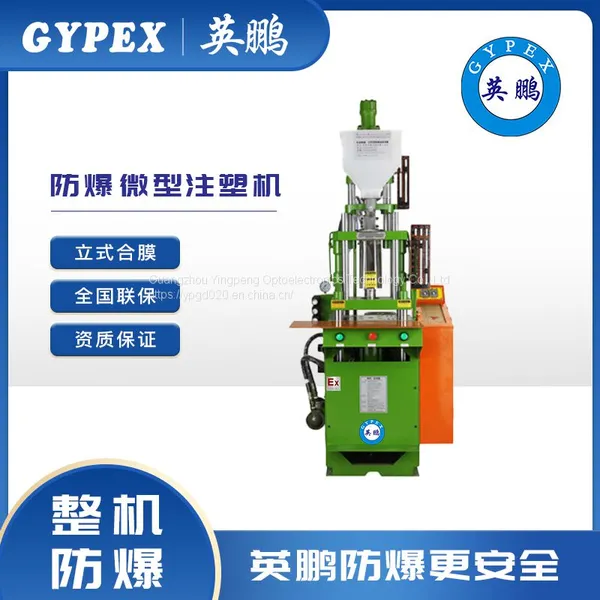

Vertical Injection Molding Equipment, Rapid Injection Molding, Safer And More Efficient YP-200EX/ST

Injection device

Model

Unit

YP-350EX/ST

Screw diameter

Mm

Φ twenty-six

Φ twenty-eight

Φ thirty

Theoretical injection volume

Cm ³

sixty-six point three

seventy-six point nine

eighty-eight point three

Injection Weight (PS)

G (oz)

62.7 (2.2)

72.7 (2.56)

83.5 (2.94)

Maximum Injection Pressure

Mpa (kgf/cm)

138.5 (1413)

119.5 (1219)

136.5 (1062)

Injection Rate

Cm/s

fifty-two

sixty point three

sixty-nine point two

Injection Speed

Mm/s

ninety-eight

InjectionStroke

Mm

one hundred and twenty-five

Screw Speed

r. P.m

0-190

Number of temperature control segments NO. Tempetaturecontrol

three

NozzleOutFromPlatens

Mm

≥ 25

Mold closing device

Clamping Force

KN (tf)

343 (35)

ClampingStroke

Mm

one hundred and eighty

Min. MoldThickness

Mm

80/180

Max. Opening

Mm

two million six hundred and one thousand three hundred and sixty

Maximum Mold Size (L * W) Max.MouldSize

Mm

350 * 300

Plate Size (L * W)

Mm

490 * 325

EjectorDistance of finished product

Mm

twenty-five

EjectorForce

KN (tf)

12.7 (1.3)

other

System Pressure

Mpa (kgf/cm ²)

13.7 (140)

OilTankCapacity

L

one hundred

Electric Power

KW (HP)

4 (5.5) -6P

Heating power

KW

two point eight

Mechanical dimensions

L * W

M

1.48 * 1.07

MachineDimensions

H

M

2.1512.74

MachineWeight

Tf

one point two
