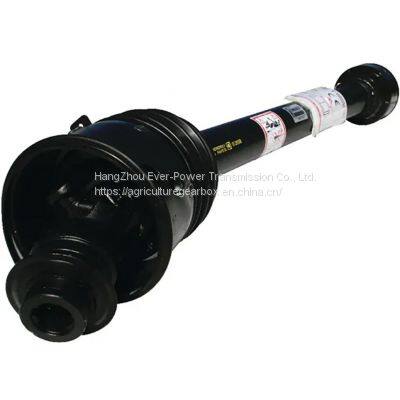

1 Series PTO Shaft – Replacement of Bondioli & Pavesi PTO Shaft

Replacement for Bondioli and Pavesi 1 Series PTO Shaft

1. The PTO (Power Take-Off) Shaft is an universal mechanical device created to transfer power from a tractor, or other engines to a variety of industrial and agricultural equipment like balers, mowers pumps, generators, and so on. It features a standard keyway or spline connection which connects to the output shaft of the tractor the other end of it has an yoke or coupling which connects to the input shaft of the equipment. Its 1 Series PTO shaft features an spline pattern of six that is suitable for the majority of tractors that have at least 20 horsepower and it is able to be able to handle a maximum that is 160 Newton meter. Also, it has an safety shield or guard that protects the rotating shaft to protect it from injuries or the possibility of entanglement.

#1 Series PTO Shaft Parts

A shaft for the PTO 1 series usually comprises several components that function together to transfer energy from the tractor into the machine. These components comprise:

Tractor Yoke - The top of the PTO shaft that connects the output shaft of a tractor. It is usually an angled 6-spline design that fits the male shaft on the tractor's PTO.

PTO Shaft The primary part of the PTO shaft that transmits force from tractor onto the machine. It's usually hollow tube made of metal with a rotating inner shaft.

Implement Yoke – The end of the PTO shaft which connects to the implement's input shaft. It is usually a standard coupling or yoke that is in line with the specifications of the implement.

Safety Shield Protective covering which covers the spun PTO shaft to avoid accidents or the possibility of entanglement. It is usually constructed of plastic or metal and comes with a number of interlocking segments.

Bearings and Seals are small parts that help provide support and lubrication to the parts that rotate on PTO shafts. PTO shaft, decreasing wear and friction.

Fasteners - various bolts, nuts and washers that join the various components in the PTO shaft in place, ensuring an unbreakable and secure connection.

# Features of 1 Series PTO Shaft

1. The 1 Series PTO Shaft is equipped with several characteristics which make it a popular option for industrial and agricultural applications. A few of these features are:

Universal Compatibility Universal Compatibility 1 Series PTO shaft has an established design that is compatible with the majority of tractors that have 20 to 30 horsepower It is a versatile and widely used component.

High Strength and Durability This shaft generally composed of high-strength stainless steel or other materials that are able to withstand the high force and the heavy load of industrial and agricultural work.

Simple Installation and Operation Its 1 Series PTO shaft is easy to install and operate using a simple connect yoke and safety shield that requires no prior knowledge or training.

A Wide Variety of Applications This shaft is able to be utilized with a range of tools, such as balers, mowers, pumps and generators, making it a useful instrument for all kinds of jobs.

Safety Features Safety Features 1 Series PTO shaft includes various safety features, such as the safety shield or guard which covers this rotating part, which reduces the chance of getting injured or becoming entangled.

Cost-effective 1 Series shaft is generally an economical choice for businesses and farmers that offer high-quality power transmission at an affordable price.

# Applications of 1 Series PTO Shaft

This shaft from the 1 Series series is an incredibly versatile part that can be used in a myriad of industrial and agricultural uses. The most common uses that can be made use of this 1 Series PTO Shaft include:

1. Mowing - Mowing - 1 Series shaft is able to power rotary mowers and other types of mowers which allows for effective and efficient grass cutting in pastures and fields.

2. Tilling The 1 Series shaft is able to be used in conjunction with tillers rotary and other equipment for soil cultivation to make planting beds, and to loosen soil to prepare for planting.

3. Hay and forage shaft - 1 Series shaft may serve as a power source for balers, hayrakes, and other equipment for harvesting and processing hay.

4. Livestock Management This shaft is able to be used in conjunction with feeder mixers and feed grinders and other equipment utilized in management and feeding of livestock.

5. Water and Irrigation 1 Series shaft is able to use to run water pumps as well as other irrigation equipment. This allows the effective and efficient irrigation in agriculture settings.

6. Industrial Applications Industrial Applications 1 Series shaft is able to be utilized in many industrial applications, like the powering of compressors, generators, and many other kinds of machines.

Overall overall, this 1 Series PTO Shaft is an efficient and versatile part that is suitable for various applications to deliver powerful and efficient power transmission.

# Agricultural Gearboxes and PTO Shafts

Agriculture gearboxes as well as PTO shafts are the two most important components of modern agriculture. They function together to provide the power needed for a variety of equipment and agricultural tools. Let's look at how they function and their role in agriculture.

Agricultural Gearboxes - These gearboxes allow for the change of the direction and speed of the tractor's engine in order to drive different implements. The agricultural gearbox sits in between the tractor's PTO shaft and the shaft for input to the implement. It is equipped with multiple gears as well as an e-speed reduction mechanism which assists in generating the required torque and power for various tasks. Gearboxes for agriculture are utilized in a variety of applications, including cultivation, tillage, planting and harvesting. They can also improve the effectiveness and productivity of farming activities.

PTO shafts PTO shafts are connected with the tractor's PTO shaft, which is rotated at a high speed for the transfer of power from engine to different implements. The PTO shaft is equipped with universal joints that allow you transfer power at different angles, while also allowing some flexibility. The shaft is held by bearings, and then encased by an encased telescoping steel tube that is protected. The tube's protective coating helps keep entanglement risks out and helps keep the transmission system of power safe.

The significance of the agricultural gearbox as well as the PTO shafts in modern agriculture can't be overemphasized. They enhance the effectiveness and efficiency of farming activities by offering an efficient and reliable energy transmission. Farmers are able to easily alter the speed and power of their equipment by using PTO shafts and gearboxes which make farming more simple and efficient. They also aid in reducing labor costs and increase yields and make the farming process more efficient and profitable.
