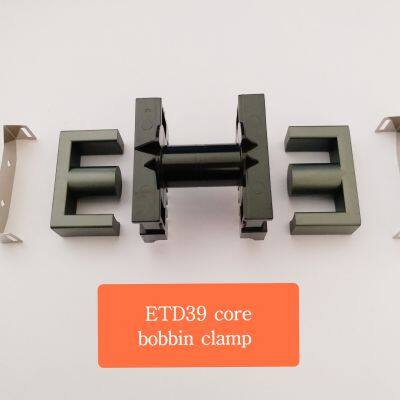

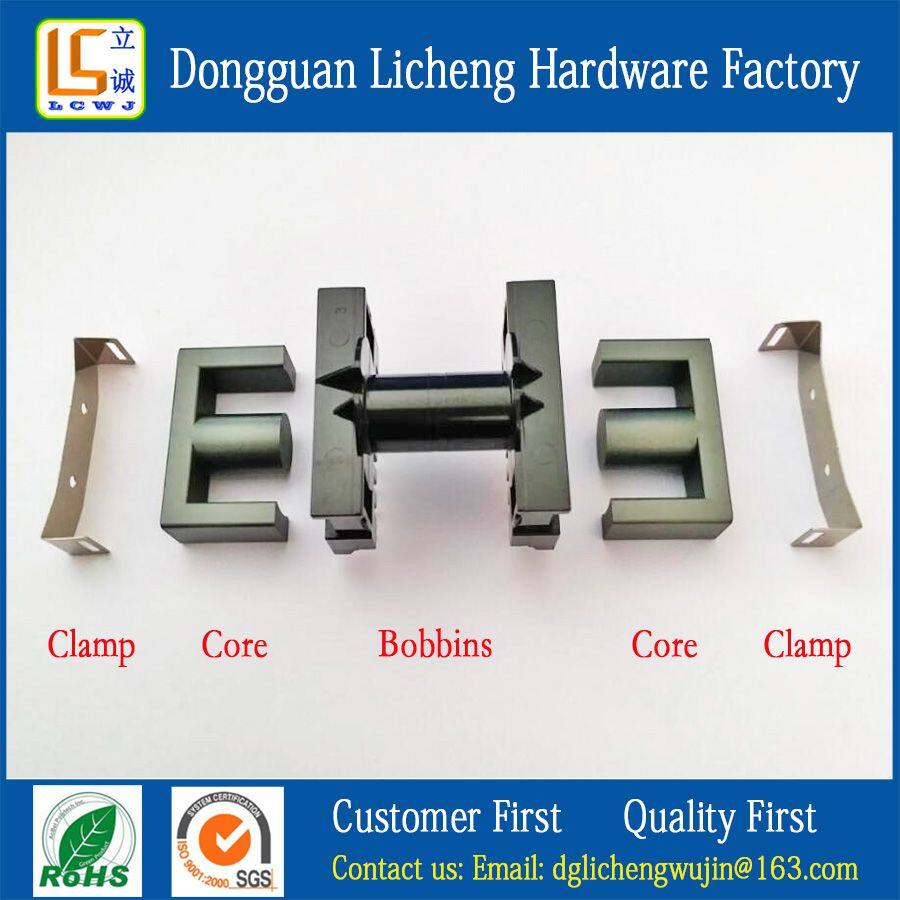

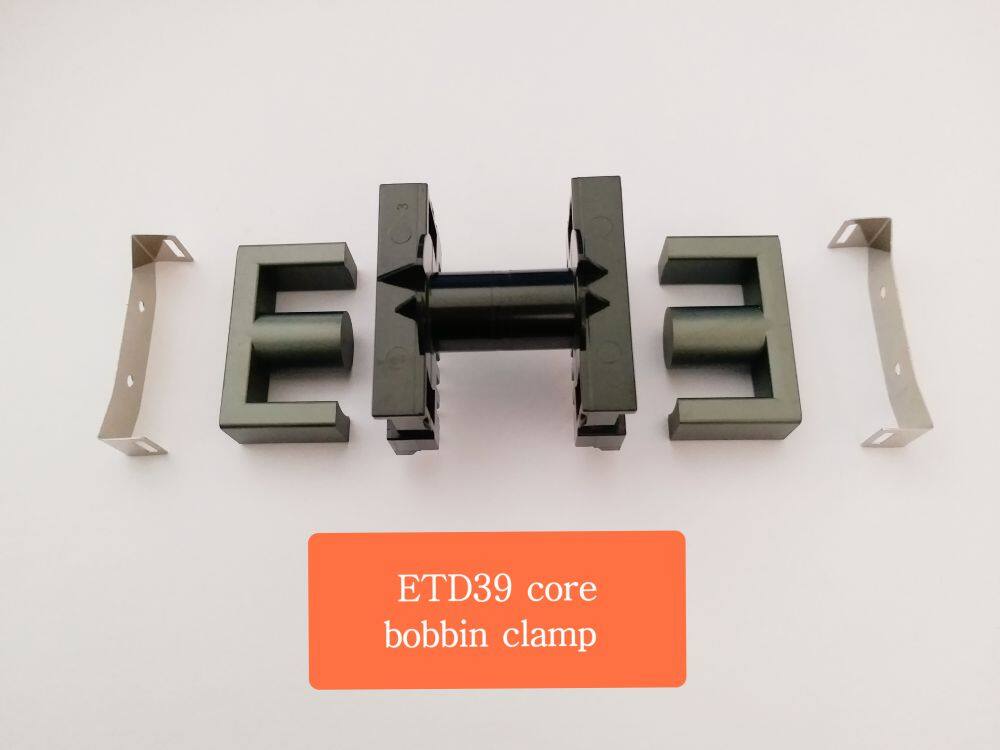

ETD39 Core and Bobbin and Clamps, wholesale ETD39 high-frequency transformer supporting materials, with excellent product quality and affordable prices.
Material selection:

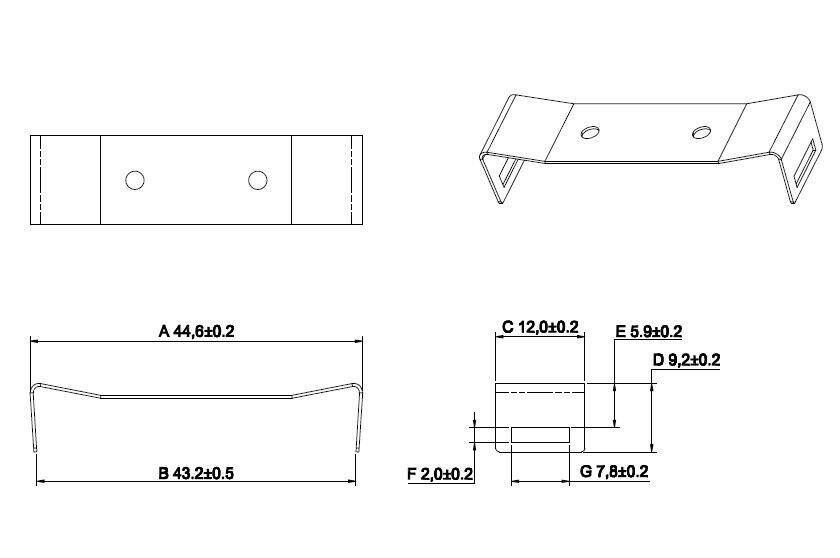

Clamp: T0.4 SUS301 stainless steel, surface cleaning.

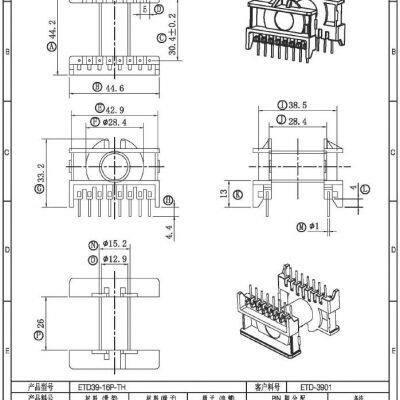

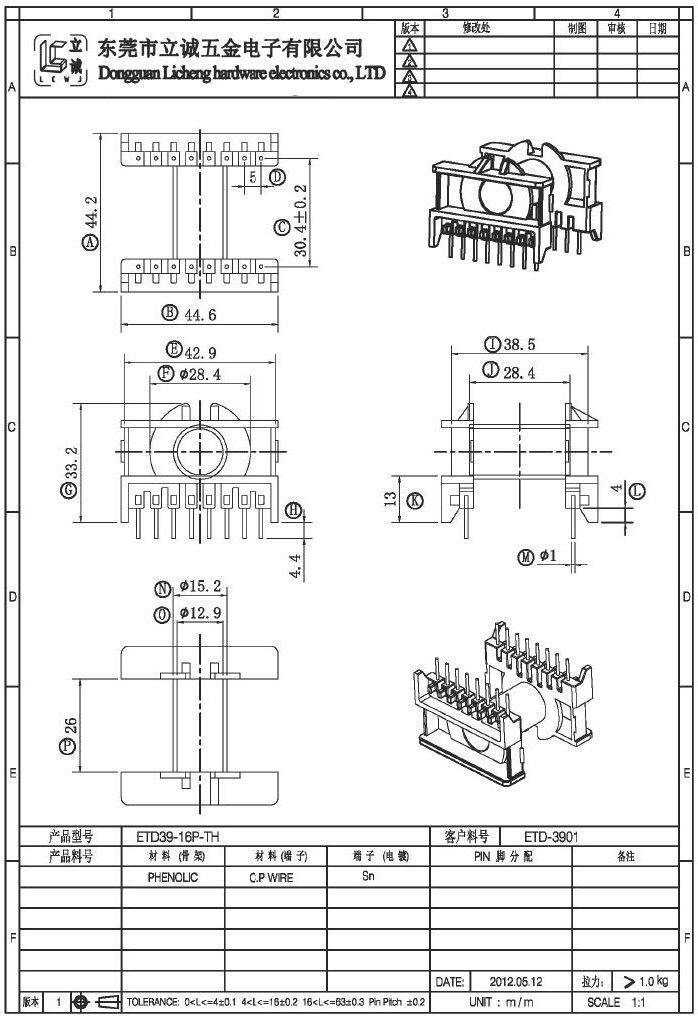

BOBBINS: T375HF or PM9820

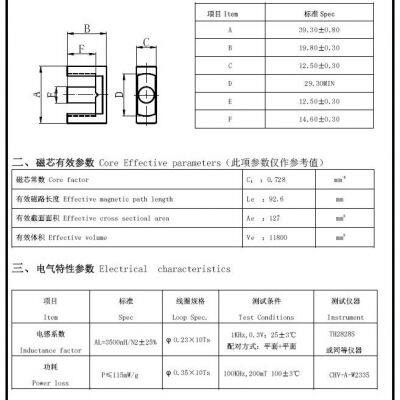

Core: P44, AL=3500nh/N2
Common classification of transformer clamps:
RM Series (RM4, 5, 6, 7, 8, RM10, 12, 14)
ER Series (ER9.5, 11.5, 13.6, 14.5)
EF Series (EF20, 12.6, 16, 19, 25, 30)
EPC Series (EPC10, EPC13, EPC17, EPC19, EPC25, EPC30)
EE Series (EE5.0, EE5-1, EE5-2, EE5-3, EE5-4)
UU Series (UUU9.8, UUU10.5 with ears, 15.7, 16, 25)
EFD series (EFD10-1 half package, EFD12 square cover, EFD15, EFD15-1, EFD20, ETD20-1, EFD25, 30)
EFD double-button (EFD15 double-button, EFD20 double-button, EFD25 double-button, EFD30 double-button)
ETD Series (ETD29, 34, 39, 44, ETD49, 54, 59)
EP Series (EP7 Button, EP7-1, EP13, EP17, EP20)
PQ series (PQ2020, PQ4040, PQ5050, PQ34)
FK series (FK-ETD34, FK-ETD39, FK-ETD44, FK-ETD49, FK-ETD54)
Dongguan Licheng Hardware and Electronics Co., Ltd. was founded in 2010, the company is located in the beautiful Dongjiang River, with the name of China's famous electronic town - Shijie Town, Dongguan City.
The company specializes in the production of metal stamping parts, electrical hardware spare parts, transformer clamps, electronic connector terminals, precision die manufacturing and other main business. Its products are widely used in modern communication equipment, digital technology, electronic transformers and household appliances. The company has first-class quality concept, super-strong mold research and development team, efficient and sophisticated equipment and production team, closely following the forefront of electronic and electrical development.
