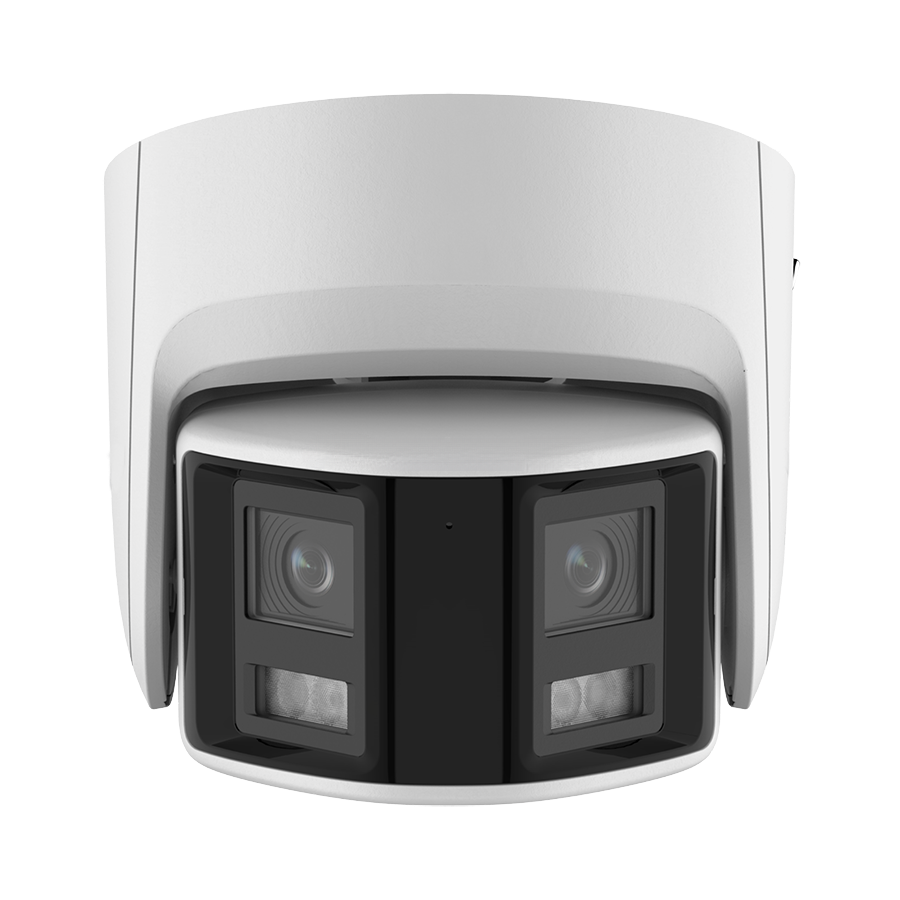

DS-2CD2347G2P-LSU/SL 4MP Hik 180 Degrees Panoramic Colorvu Fixed Turret Network Camera

DS-2CD2347G2P-LSU/SL 4MP Hik 180 Degrees Panoramic Colorvu Fixed Turret Network Camera thumbnail-1
DS-2CD2347G2P-LSU/SL 4MP Hik 180 Degrees Panoramic Colorvu Fixed Turret Network Camera photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
IPC-HDW3849H-AS-PV-S4
Contact Supplier Request Quote Chat Now
Fujian Boye Trade Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number IPC-HDW3849H-AS-PV-S4

DS-2CD2347G2P-LSU/SL 4MP hik 180 degrees panoramic colorvu fixed turret network camera


* High quality imaging with 4 MP resolution
* One image that presents all the scenes covered by the camera
* 24/7 colorful imaging
* Efficient H.265+ compression technology
* Clear imaging against strong back light due to 130 dB WDR technology
* Focus on human and vehicle classification based on deep learning
* Active strobe light and audio alarm to warn intruders off
* Water and dust resistant (IP67)

Product Description



Specification
Camera
Image Sensor
2 × 1/2.5" Progressive Scan CMOS
Max. Resolution
3040 × 1368
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: -30° to 30°, tilt: -75° to 75°
Lens
Lens Type
Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV
2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2 m to ∞
DORI
DORI
2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
Sub-Stream
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region(s) for main stream
Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS,
PPPoE, SNMP, Websocket,
Websockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic
and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,
control timeout settings, security audit log, TLS 1.2, host
authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client
software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone
Yes
Built-in Speaker
Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm
light output, audible alarm output,
exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by
specified target types (human and vehicle)),
Scene change detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture, audible warning, white light flashing
General
Power
12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material
Base: metal, cover: metal
Dimension
Ø140 mm × 145.6 mm (Ø5.5" × 5.7")
Package Dimension
230 mm × 230 mm × 230 mm (9" × 9" × 9")
Weight
Approx. 920 g (2.0 lb.)
With Package Weight
Approx. 1670 g (3.7 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch,
Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional
Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-banding, heartbeat, mirror, flash log, pixel counter
Flashing Light
Yes
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
