Dehumidification And Humidification Machine

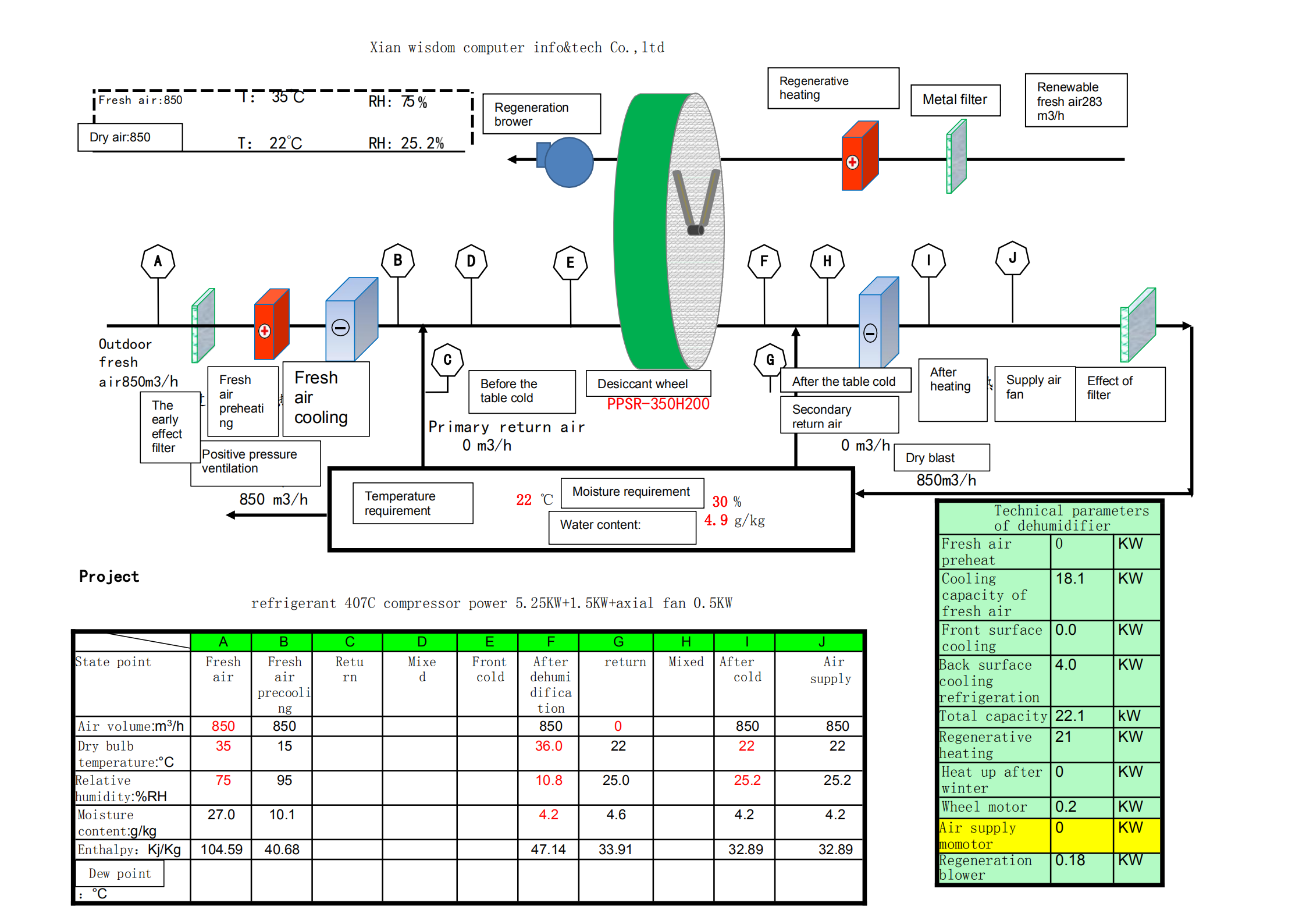

Dehumidification And Humidification Machine Production process flow chart
the pipeline dehumidifier uses evaporator to cool and dehumidify the air, recover the condensation heat of the system, and compensate the heat lost in the air due to cooling and dehumidification. It is an efficient and energy-saving dehumidification method. Has been widely used in national defense engineering, civil air defense engineering, tobacco and petrochemical vocational, subway station, space purification engineering, laboratory, telecommunication equipment rooms, archives, food, pharmaceutical or film workshop, special glass making, food, wood, etc of dehumidification drying and high wet space desiccant dehumidifier with temperature control requirements of the place.
Product form pipeline temperature regulating dehumidifier structure, various types, pipeline dehumidifier needs to connect the pipeline air, the pipeline to ensure sufficient air pressure when the air activity, pipeline dehumidifier according to the air inlet and outlet method: Forward AIR (GRILLE RETURN AIR), front outlet AIR (hood supply AIR), REAR inlet AIR (flange return AIR), top outlet air (flange inlet air), forward air (GRille return air), top outlet air (flange supply air) three types.
When the indoor temperature and humidity are relatively high, and the indoor cooling load is relatively large, the system operates in the form of cooling and dehumidification. At this moment, the four-way valve is not charged, and the system operates according to the refrigeration method. The second branch of the indoor heat exchanger is the solenoid valve off, the outdoor heat exchanger is the condenser, and the top heat exchanger is the evaporator.
Indoor air is only the top indoor heat exchanger cooling dehumidification, become low temperature and low humidity air back indoors. In this form, can also adjust the outdoor heat exchanger air volume or water to further adjust the cooling capacity and dehumidification capacity, cooling capacity and dehumidification capacity with the increase of outdoor heat exchanger air volume or water volume and rise.
Send Inquiry to This Supplier
