Home > Computer Products > Computer Case > Custom 3.5'' HDD ATX PSII/2U Power Rack Mount Server Chassis 2U Server Case

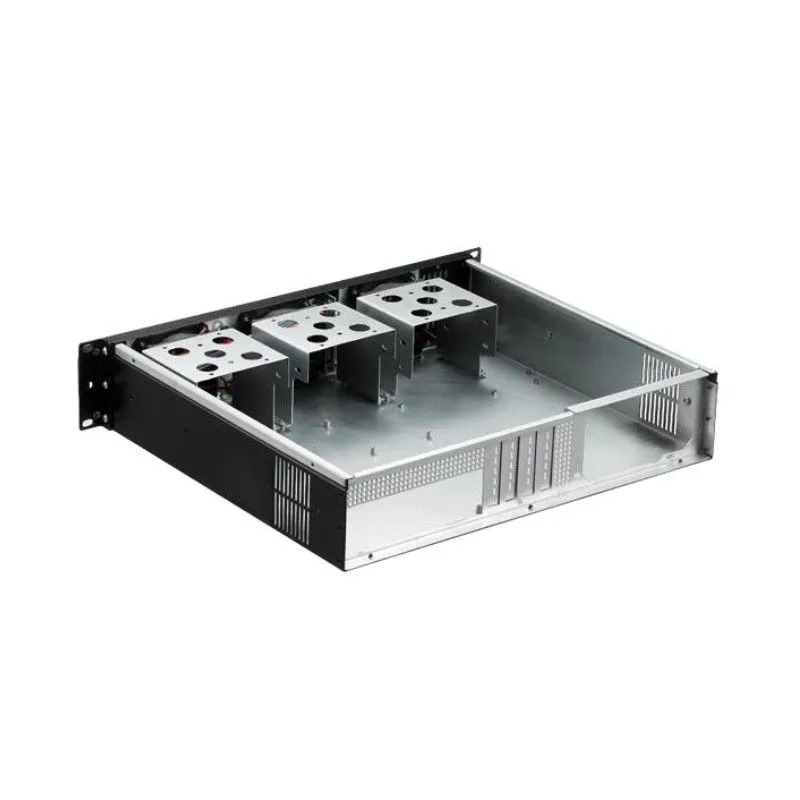

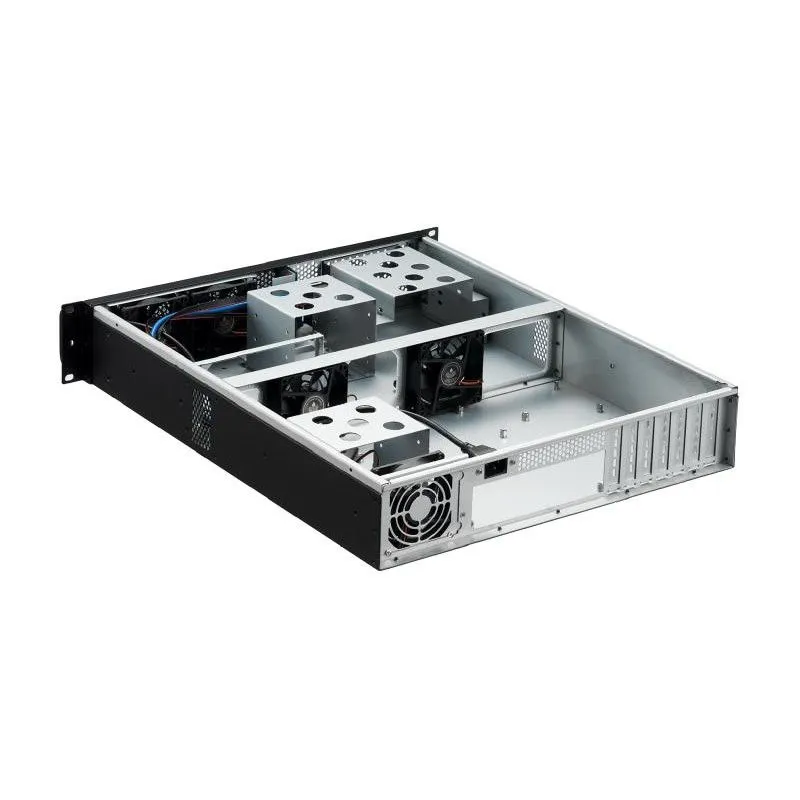

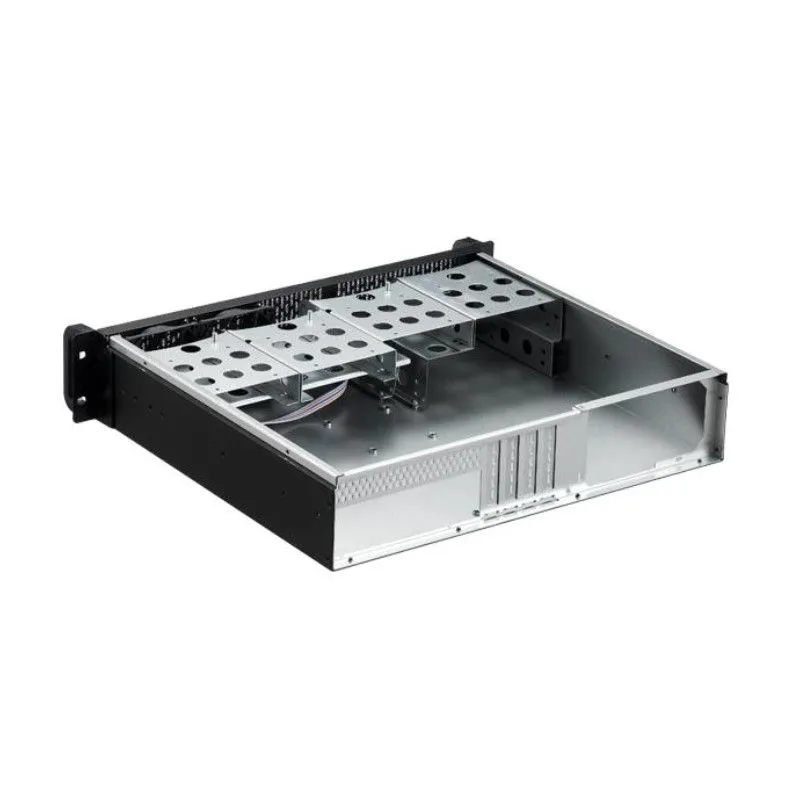

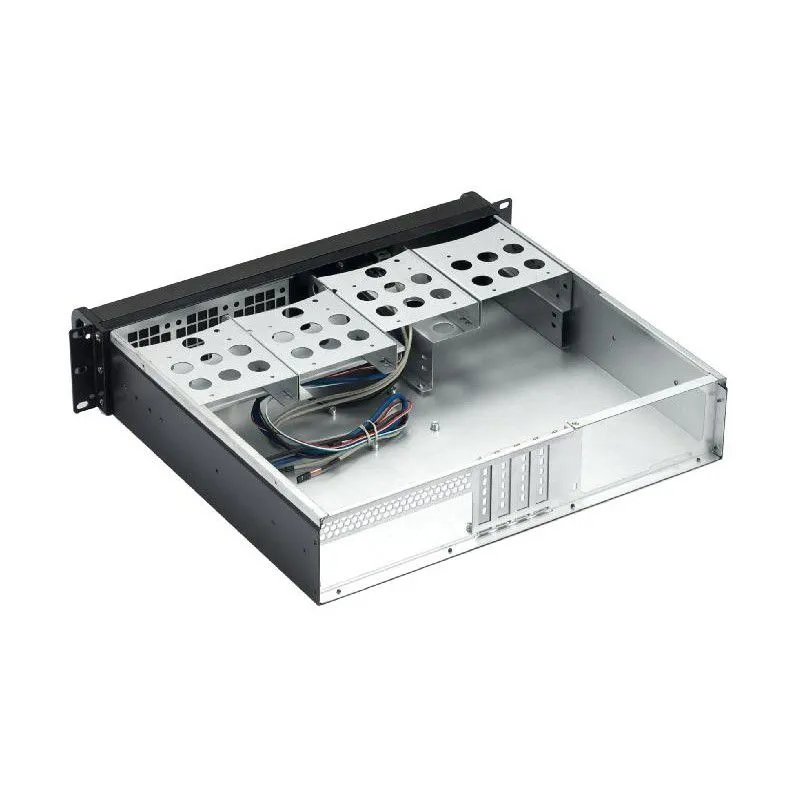

Custom 3.5'' HDD ATX PSII/2U Power Rack Mount Server Chassis 2U Server Case
US$ 34.5 - 63.5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
ESCHON
Place of Origin:
China
Model Number:
2U-535,2U-3827,2U-380AL,2U-3826
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Great Wall Server Power Supplies GW-FLX250M 1U 250W Single Server Power SupplyUS$ 32.5 - 35.5MOQ: 2 Pieces -
Great Wall Uninterrupted Adjustable Variable 1U 250w Server Power SupplyUS$ 28.4 - 32.8MOQ: 2 Pieces
-
Great Wall Server Power Supplies 80Plus 1U 400W Industrial Server Power SupplyUS$ 57.9 - 63.9MOQ: 2 Pieces
-
Great Wall CRPS PSU Variable 450W 1U 1+1 Redundant Power Supply For ServerUS$ 221 - 231MOQ: 2 Sets
-
Great Wall GW-EPS2U600 2U PSU 600W Single Server Power Supply For 2U/3U/4U CasesUS$ 58 - 62.7MOQ: 2 Pieces
Brand Name
ESCHON
Place of Origin
China
Model Number
2U-535,2U-3827,2U-380AL,2U-3826
Material
Other, SGCC
Type
Rack
Style
With Fan
Products Status
Stock
Front Ports
USB
Form Factor
ATX
Application
Server
| Specification |
2U-535: Depth 530*Width 430*Height 88 mm 2U-380AL/2U-3826/2U-3827: Depth 380*Width 430*Height 89 mm |
| Color | Black, Silver |
| Main material | 1.0mm SGCC |
| Motherboard |
2U-535: MAX:CEB(12''*10.5'') 2U-380AL/2U-3826/2U-3827: ATX(12''*9.6'') |
| CD-ROM&HDD |
2U-535: 3.5'' HDD/FDD *7 ; 5.25'' CD-ROM*1 2U-380AL: 3.5'' HDD/FDD *4; 5.25'' CD-ROM*1 2U-3826: 3.5'' HDD/FDD *4 , 5.25" CD-ROM *0
2U-3827: 3.5'' HDD/FDD *4 ; 5.25'' CD-ROM*1
|
| PSU | ATX PSII / 2U Power |
| Panel control | Power Switch x1 ; Reset Switch x1 |
| Panel display LED | Power indicator *1; Hard disk indicator *1 |
| Panel interface |
2U-535: USB2.0 x2 2U-380AL/2U-3826/2U-3827: USB2.0 x1 ; USB3.0 x1(optional) |
| Expansion slot |
2U-535: 7 vertical PCI expansion slots (standard) 2U-380AL/2U-3826/2U-3827: 4 vertical PCI expansion slots |
| Cooling fan |
2U-535: Middle:8025*2 ; back:8025*1 2U-380AL/2U-3826/2U-3827: Front panel 2U-380AL: 8025*2
2U-3826: 8025*3
2U-3827: 8025*2
|
| N.W/G.W |
2U-535: 6kgs/7kgs 2U-380AL: 6kg/7kg 2U-3826: 4.8kg/6kg2U-3827: 5.1kg/6.3kg |
