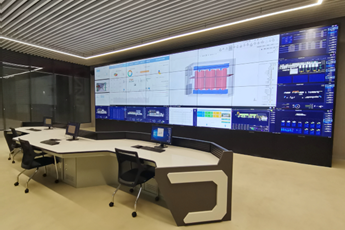

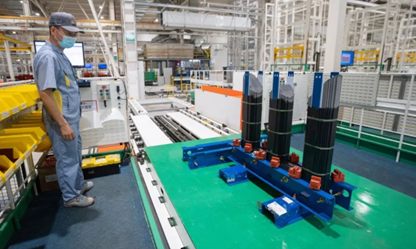

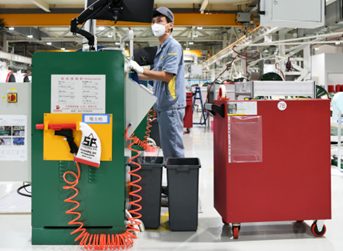

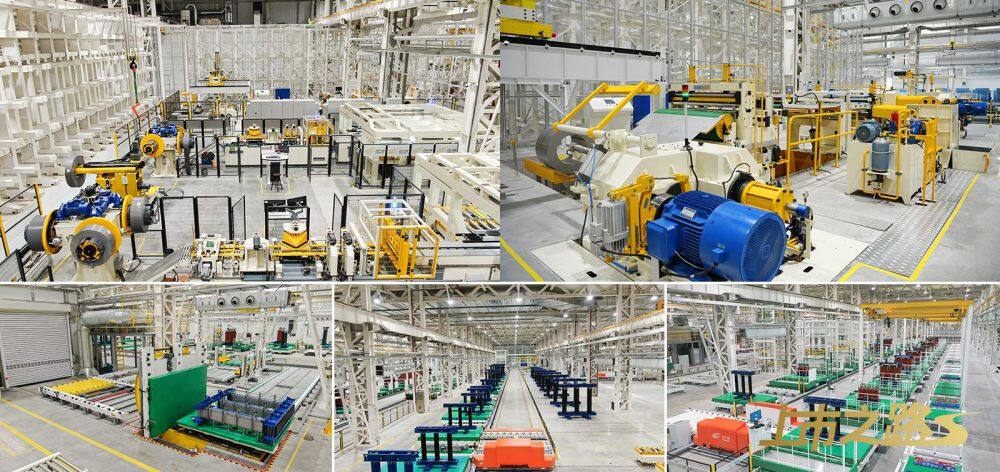

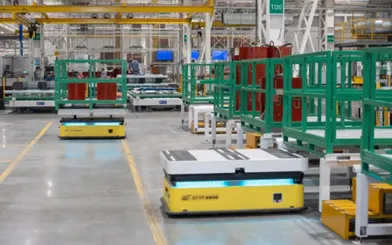

JST has designed and built the first digital chemical plant in China that meets the German VDI4499 standard,
and has been certified by the German TUV Association.
The company has developed the "Digital Factory Management Manual", "Digital Factory Operation Management
Procedure", "Digital Factory Preparation Management Control Procedure", "System Architecture Creation
Management Procedure", "Data and Data Model Management Control Procedure", "Digital Factory
Implementation Control Procedure", "Digital Factory Overall Architecture", and "Digital R&D Plan Specification"
in accordance with the VDI4499 Digital Factory Construction Standard of the German Association of Engineers
The three-level quality management documents, including the digital production plan manual, digital
management plan manual, digital marketing and service plan manual, have established a management system

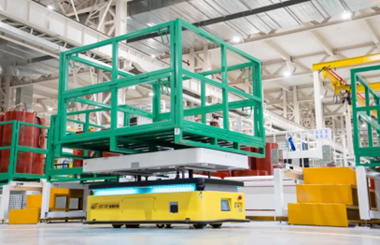

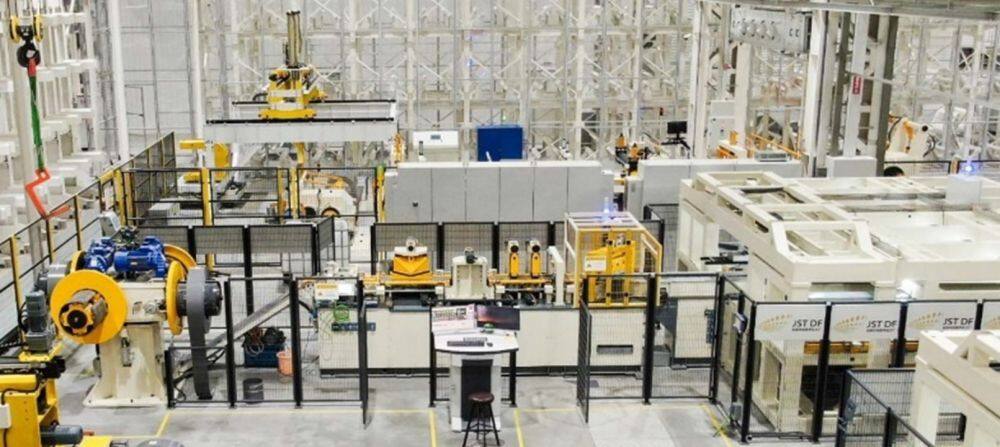

for factory construction planning, production automation, material automation, information flow automation,
and digital factory construction.

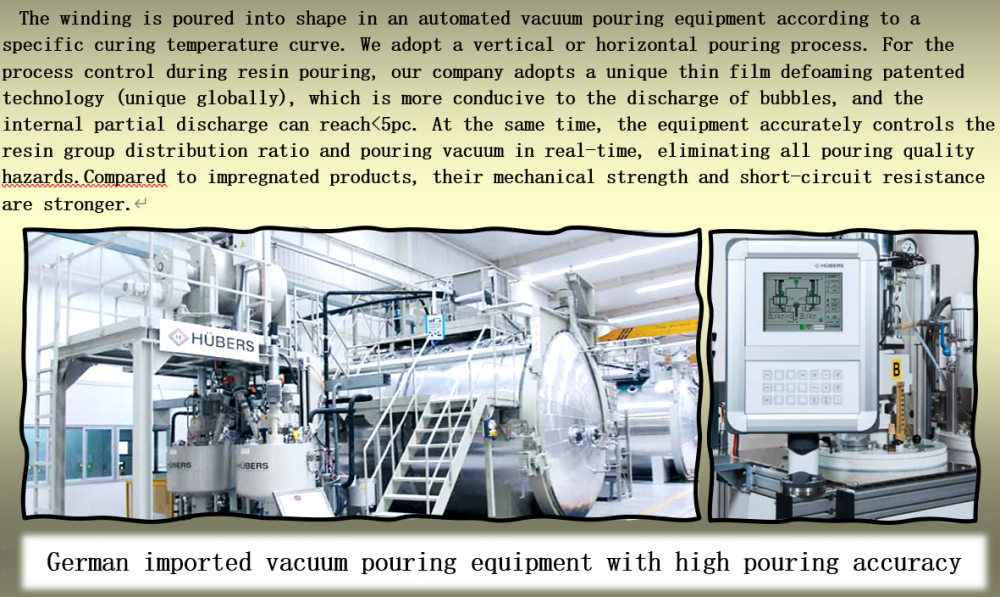

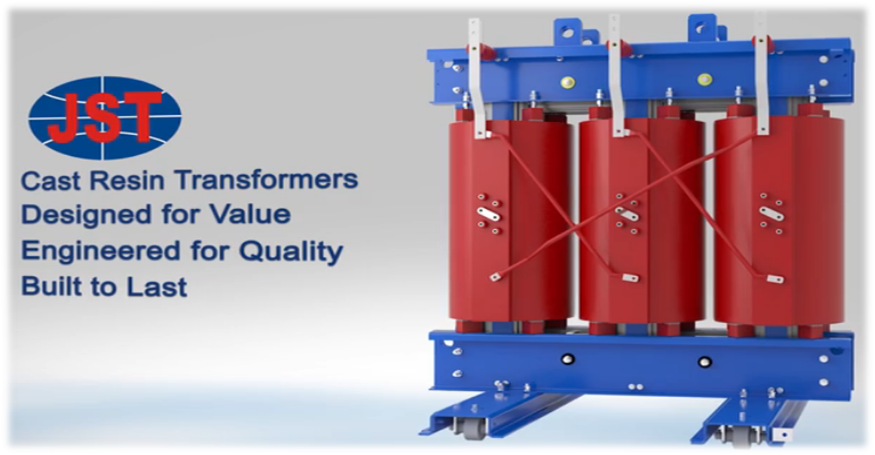

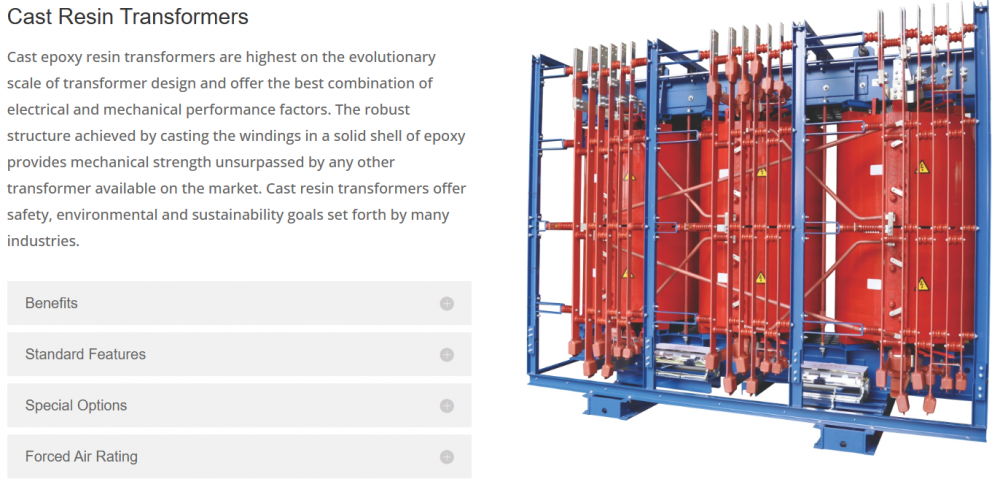

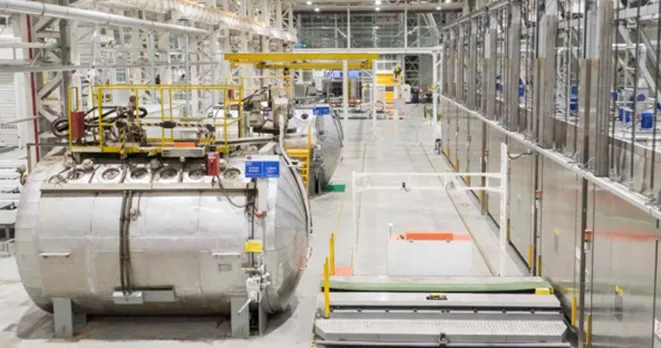

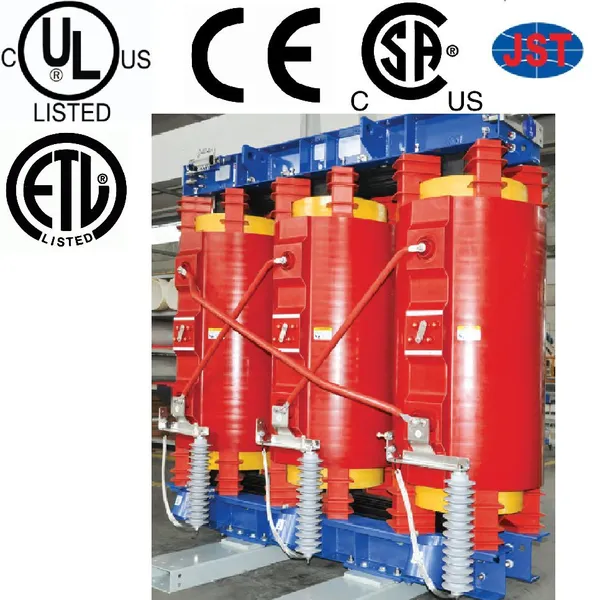

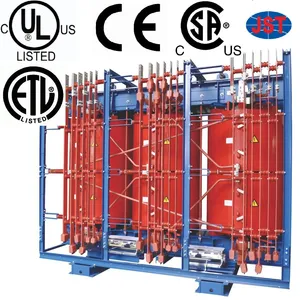

Special dry-type transformer made of epoxy resin vacuum casting process, the core material includes silicon
steel core and amorphous alloy core, the Nameplate capacity is 45000kVA and below, the voltage level is 40.5kV
and below, the insulation level is F/H, indoor/outdoor (need to be equipped with a shell), can be used with natural
air cooling, fan forced air cooling, water cooling and other heat dissipation methods, and can be used at sea under
6000 meters above sea level, at -25-+50 ℃ Underground and other harsh environments;

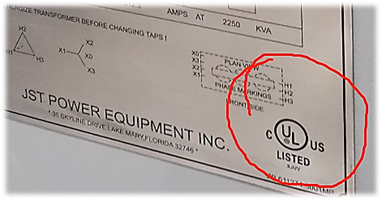

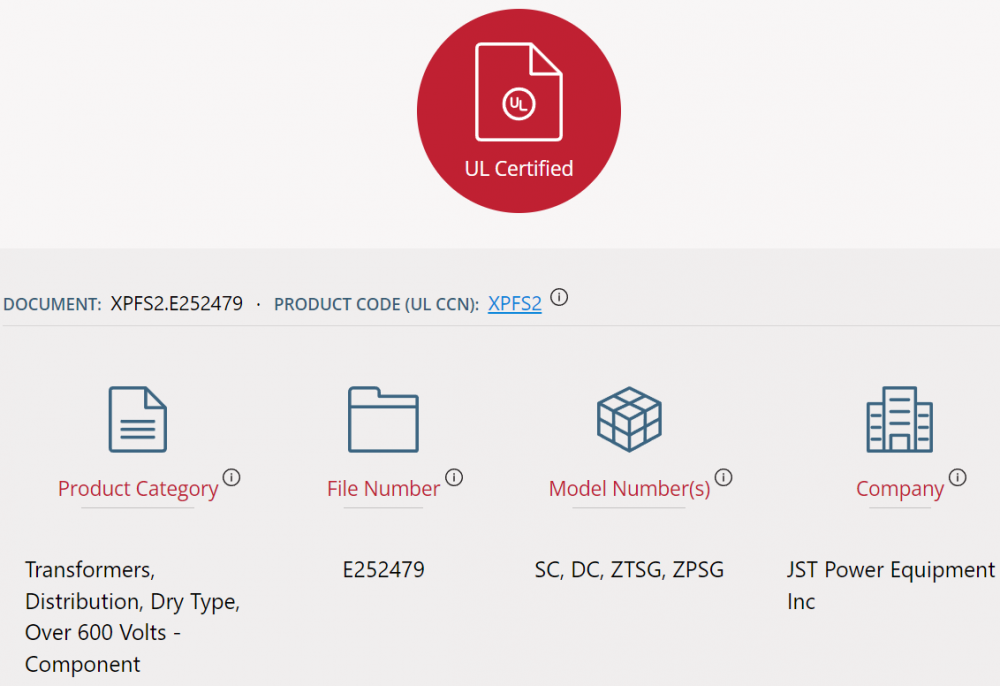

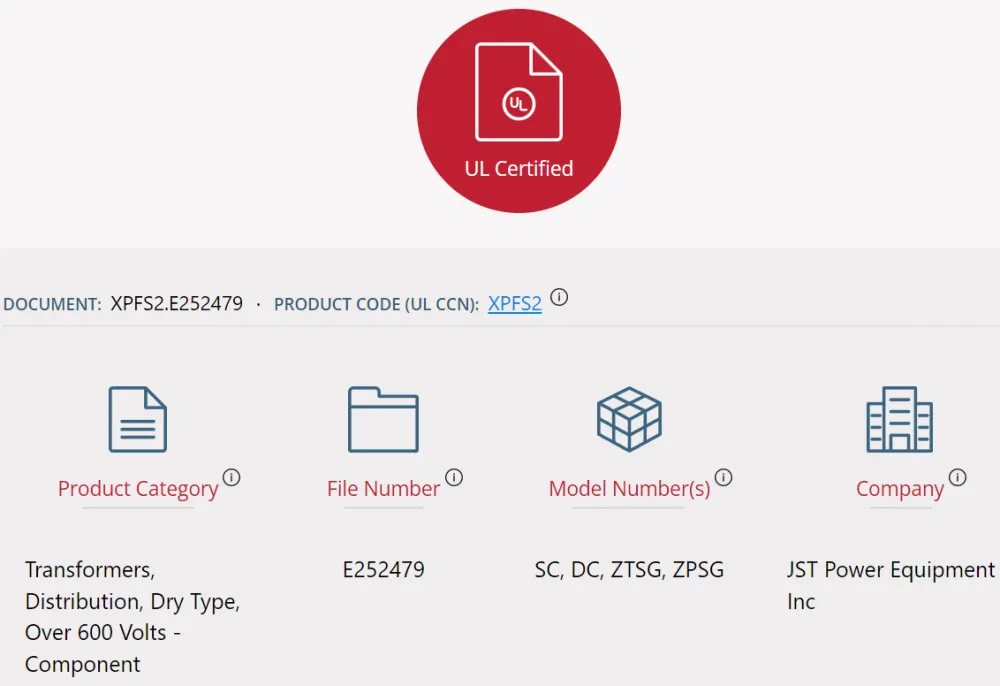

Obtained UL certification in the United States: (certification scope: capacity ≤ 10000kVA, voltage level ≤ 36kV,
insulation level H).
In addition, the company has established professional product quality inspection and laboratories such as
CNAS laboratory, UL1562 standard laboratory in the United States, simulated E2/E3 environmental laboratory,
and extreme temperature C2/C3 climate laboratory, possessing comprehensive inspection and testing capabilities
for dry type transformer products, raw materials, and components.
Type |
Standard |
IEC |
IEC 60076-1-2011《Powertransformers-Part1：General》 |
IEC 60076-11-2018《Powertransformers-Part11：Dry-type transformers》 | |
IEC 60076-16-2018《Powertransformers-Part16：Transformers for Wind turbine application》 | |
IEC61378-1-1997《Converter transformer Part1:Transformers for industrial applications》 | |
IEC 60529-2013 《Degrees of protection provided by enclosures(IP code)》 | |
IEC 60076-6 《Reactors》 | |
EC |
No 548/2014 《on implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to small, medium and large power transformers》 |
NEMA |
NEMA ST20-2014《Dry Type Transformers for General Applications》 |

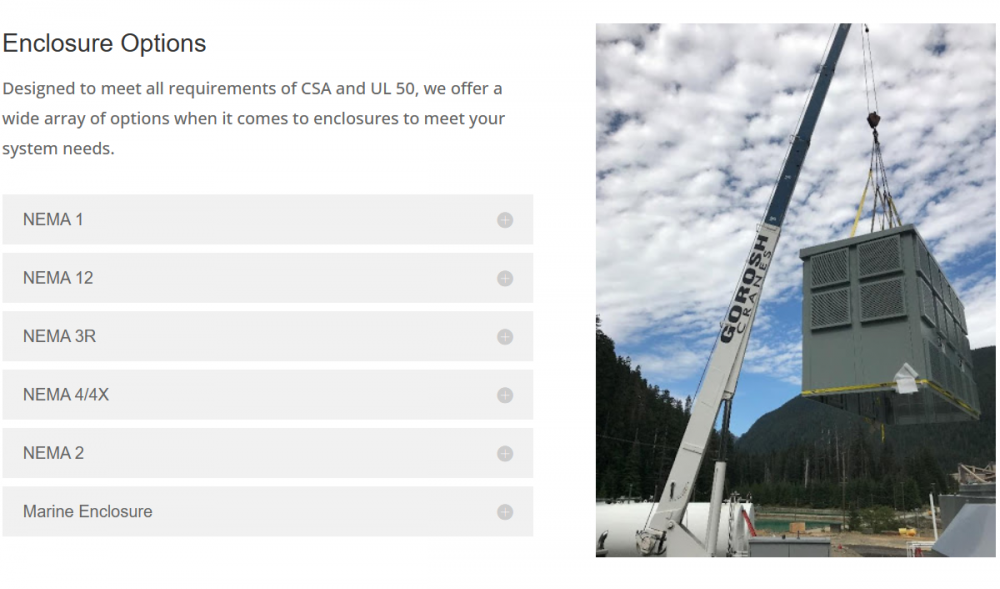

NEMA 250-2014《Enclosures for Electrical Equipment(1000Volts Maximum)》 | |
UL |
UL 1562-2013(2016R)《Transformers, Distribution, Dry-Type Over 600 Volts》 |
UL 1561-2015《Dry Type General Purpose and Power Transformers》 | |
UL 50-2015《Enclosures for Electrical Equipment, Non-Environmental Considerations》 | |
IEEE |
IEEE Std C57.12.01-2015《IEEE Standard for General Requirements for Dry-Type Distribution and Power Transformers》 |
IEEE Std C57.12.91-2015《IEEE Standard Test Code for Dry-Type Distribution and Power Transformers》 | |
IEEE Std 1653.1-2016 《IEEE Standard for Traction Power Rectifier Transformers for Substation Applications up to 1500VDC Nominal Output》 | |
IEEE C37.109-1988 《 guide for the protection of shunt reactors》 | |
IEEE STD C57.16-2011 《IEEE standard for requirements,terminology, and test code for dry-type air-core series-connected reactors》 | |
DOE |
DOE 2016 10 CFR Part 431 Part ii 《Energy Conservation Program: Energy Conservation Standards for Distribution Transformers; Final Rule》 |
CSA |
CSA C9-2017《Dry-type transformers》 CSA C802.2-18 《Test method and minimum efficiency values for dry-type transformers》 |

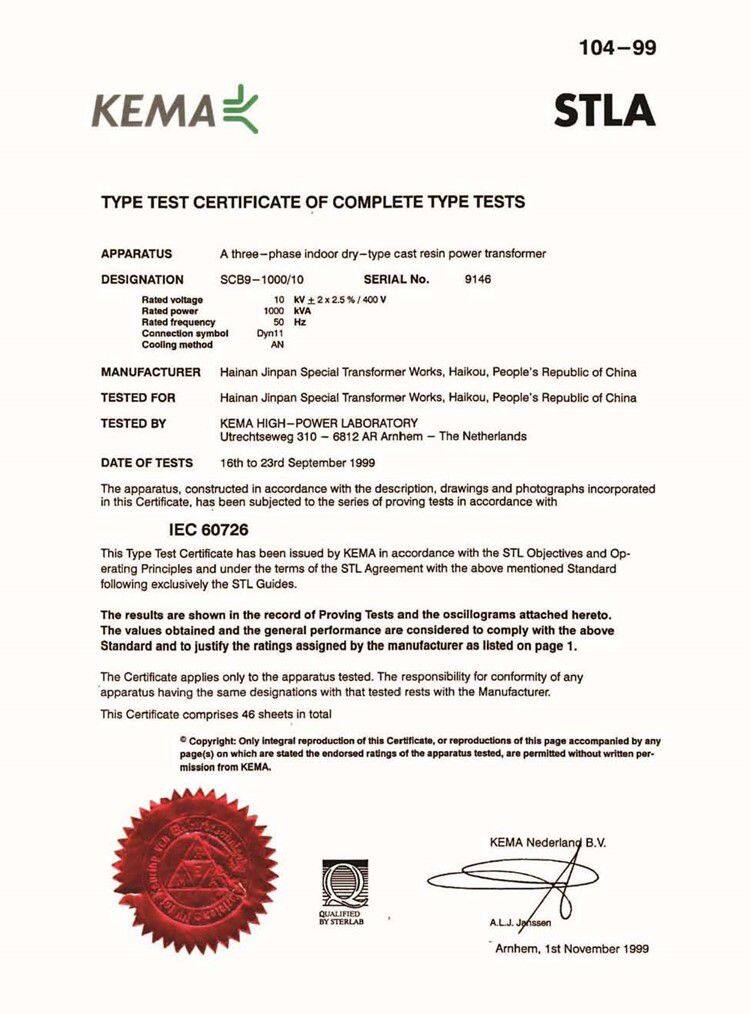

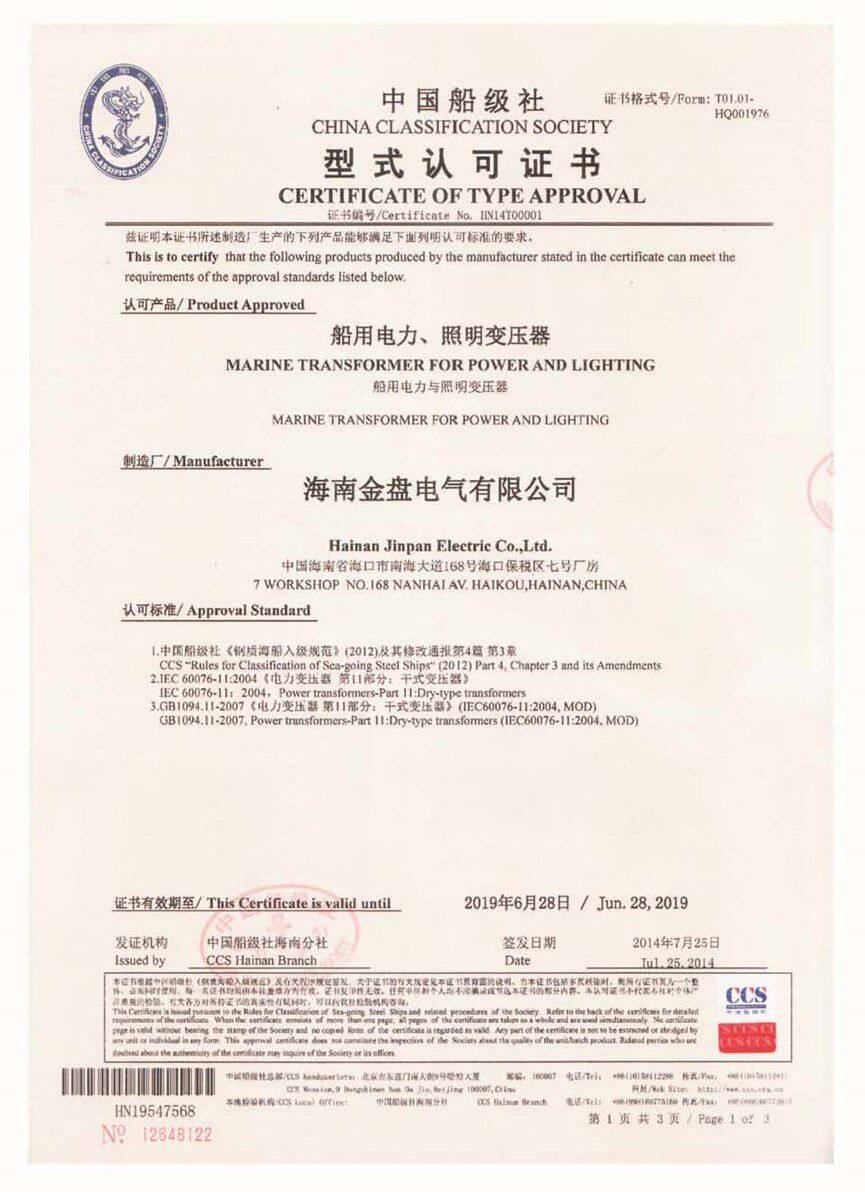

Our transformer products have successively obtained a series of authoritative certifications such as KEMA test in the Netherlands, UL certification in the United States, CE in the European Union, DNV GL certification in the Norwegian German Bureau of Shipping, CSA certification in Canada, BV certification in the French Bureau of Shipping, China Classification Society certification, energy-saving product certification, etc., and provide transformer technical consulting and solution services that meet GB, IEC, IEEE, NEMA, CSA, JEC and other standards.

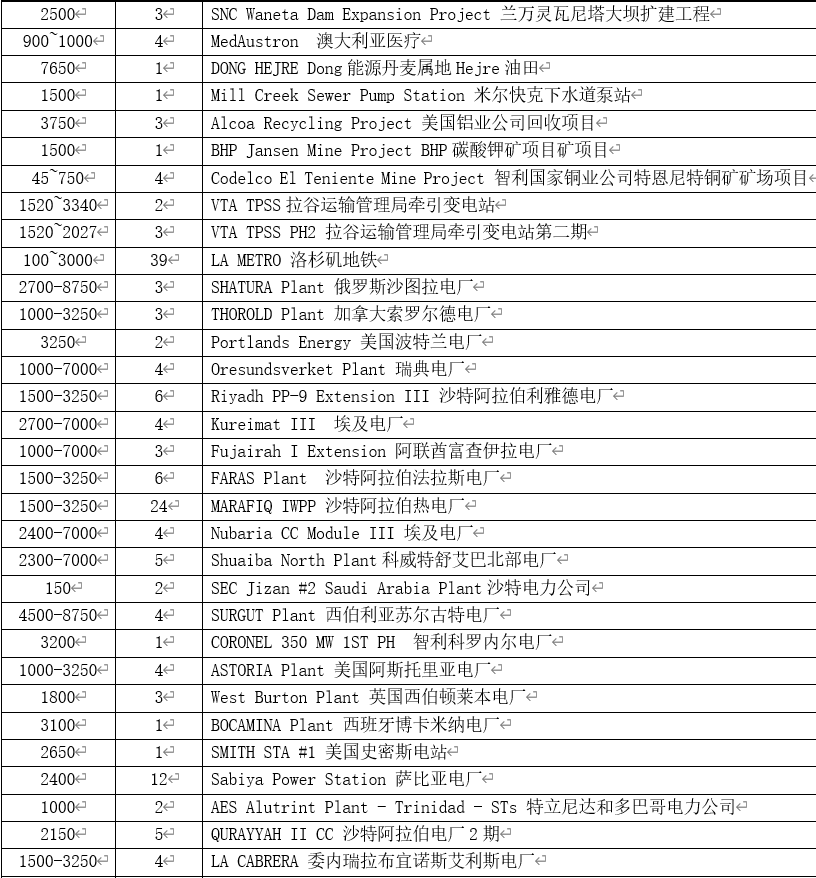

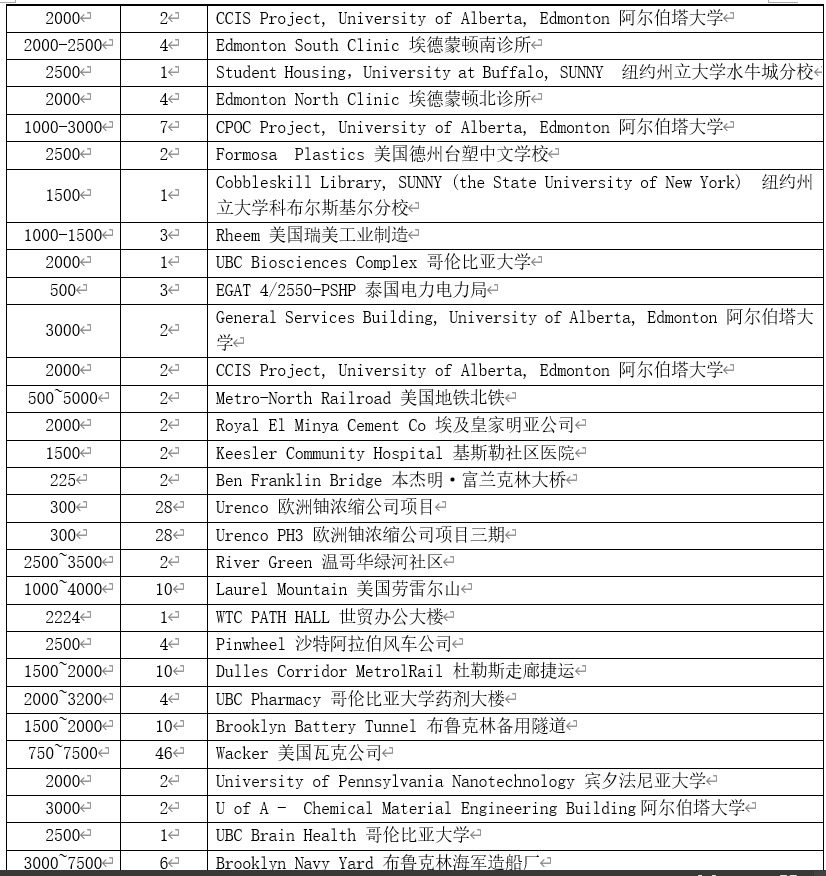

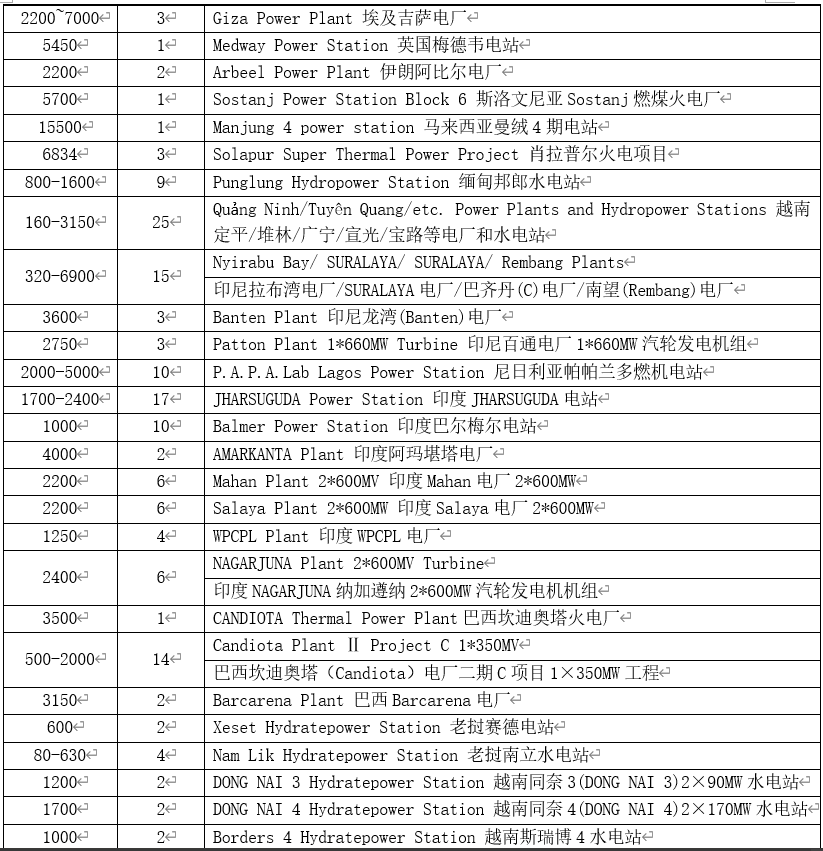

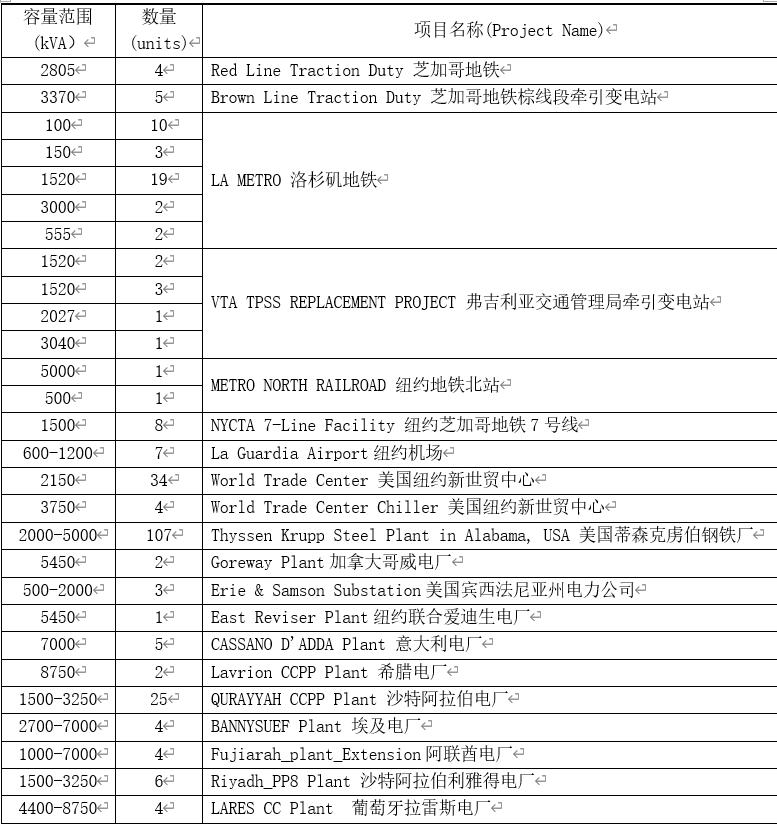

Main overseas performance
