NI PXI-2566 Relay Module

Product Introduction

I PXI-2566 is a relay module produced by National Instruments (NI). This module is used to achieve high-speed and accurate relay switching functions on the PXI (PCI eXtensions for Instrumentation) platform. The following is a general product introduction for the NI PXI-2566 relay module:

High throughput relay switch: The NI PXI-2566 relay module has multiple independent relay channels, which can achieve high-speed and high throughput relay switch functions. Each channel is equipped with independent relays that can be switched between different circuits.

Multiplexing function: This module typically supports multiplexing (MUX) function, which enables signal selection and routing by connecting relay channels to different input and output signal sources.

Low resistance and high bandwidth: The relay channels of the PXI-2566 relay module typically have low resistance and high bandwidth characteristics to ensure minimum signal attenuation and maximum signal transmission quality.

High precision and stability: Relay modules typically have high precision and stability, providing reliable relay switching functions in various application scenarios.

PXI Platform Compatibility: The NI PXI-2566 relay module is designed to be compatible with the PXI platform, allowing it to seamlessly integrate with other PXI modules and devices, enabling complex testing and measurement systems.

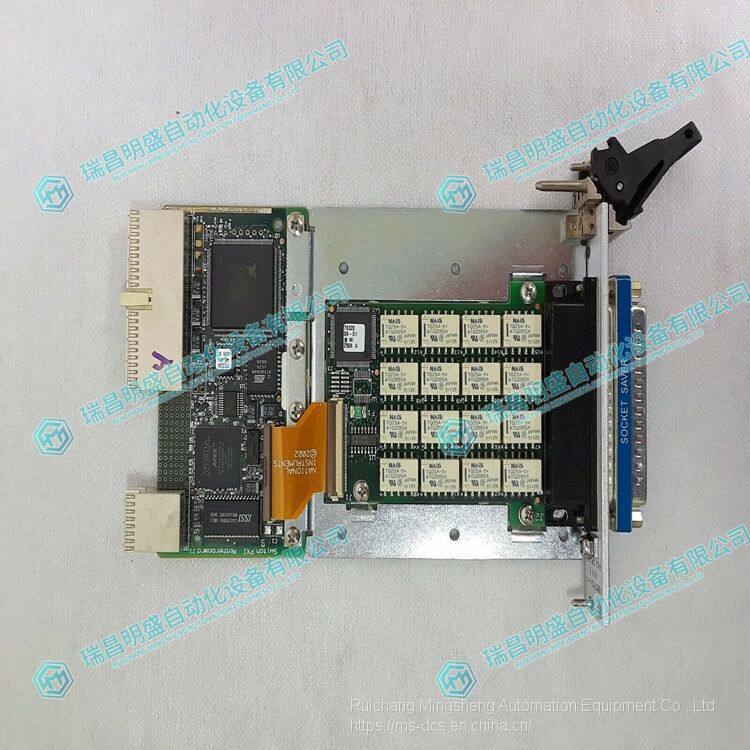

Product image display
