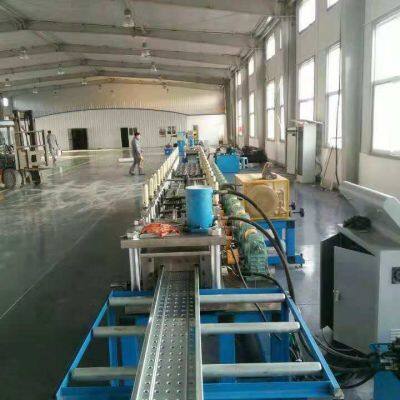

Contruction Material Perforated Steel Aluminum Scaffold Platform Board Roll Forming Machine Walk Platform Roll Former Equipment

Welcome to Taicang Global Machinery Co., Ltd
/

At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!


Main Specification

1. Machine size: 26m×3m×5m(length×width×height)
2. Feeding direction: right to left
3. Power: 380V, 50Hz, 3P
4. Air source: flux 0.5m3/min; pressure: 0.7MPa
5. Hydraulic oil: 46#
6. Gear oil: 18# hypoid gear oil
7. Coil width: max 735mm
8. Coil thickness: 1.5 - 3.0 mm
9. Coil material:S235JR with yield strength 235Mpa
10. The whole roll forming machine line speed: 5-10 m/min
11. The platform length: 3000 mm
12. Total machine power:about 40KW

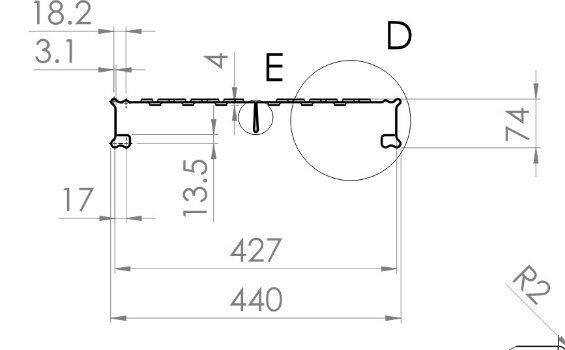

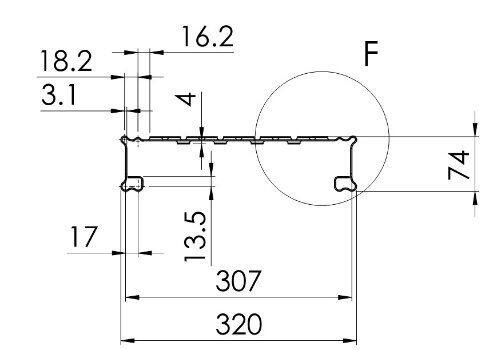

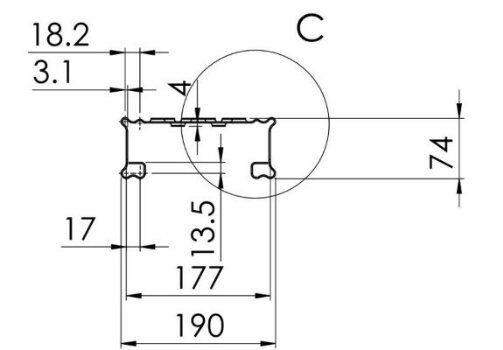

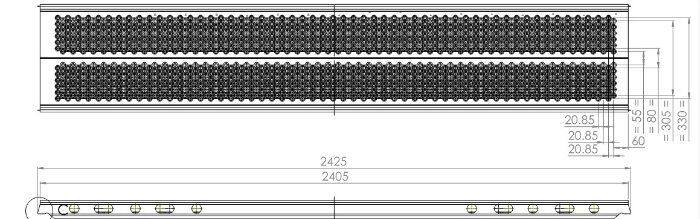

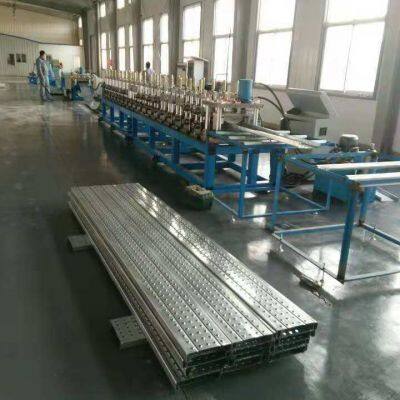

This machine can produce 1.5-3.0 mm platform, the specific drawing as below:

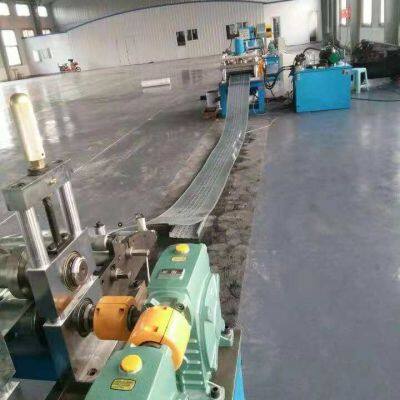

Flow Chart

Decoiler → Straightening→ Servo feeding → Punching→ Roll forming→ Cut off →Exit rack

Main components technical parameters

1. Decoiler

Coil width:max 735 mm;Coil thickness: 1.5 - 2.5mm;
Coil ID:φ508mm, expansion range: ф480 - 520 mm
With extra 4pcs of 50mm clamp,the expansion range can reach ф580-620 mm
Max coil OD: φ1800mm; Coil weight≤8T

2. Straightening Machine
a. working roll:5 rolls type
b. structure:the straightening roll mechanical properties like rigidity and surface roughness improve a lot after chrome coated and hardening and tempering, which is composed of pinching roll and straightening roll, the pinching roll can be adjusted separately, integral up straightening roll with front-back 2 adjusting points to form certain incline angle, improve the straightening quality.
In the straightening machine feeding section, there are a pair of horizontal guiding roll and 2 pairs vertical guiding roll, vertical guiding roll can be centering and synchronous moved, handwheel adjustment with gauge
In the front and back of straightening machine has lead & guide unit, there is photo-electric signal between straightening machine and feeder, the feedback signal enter control system, the control system send order to converter motor to change speed to control the accumulating volume in accumulating section, thus realize continuous straightening

3. Servo Feeding Unit
a. Function: servo feeding
b. Drive: 3kw
c. Feeding distance:set as per production demand

4. Punching Unit

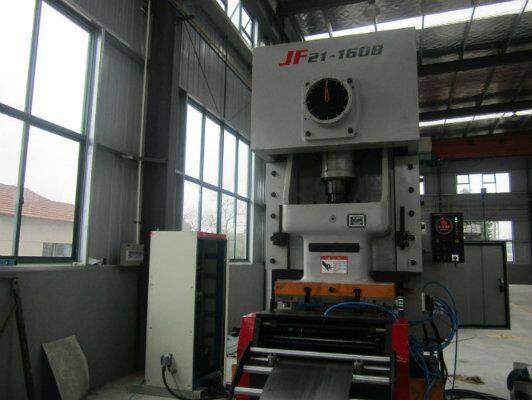

Structure: Yangli Group JF21-160 puncher to punch
Puncher:welded steel plate bed, beautiful and high rigidity
Stamping die: Combined pneumatic core pulling

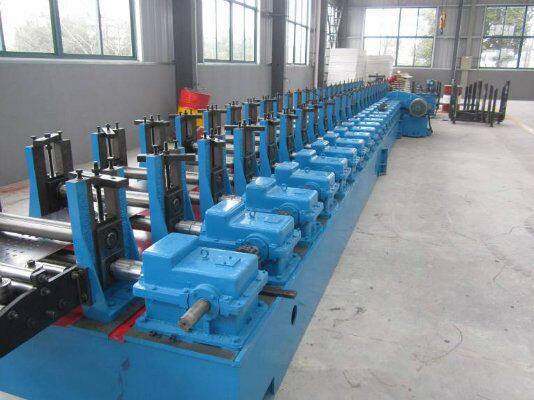

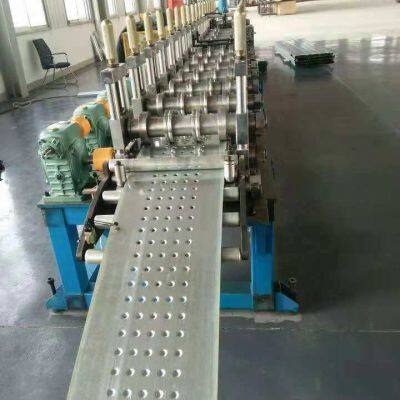

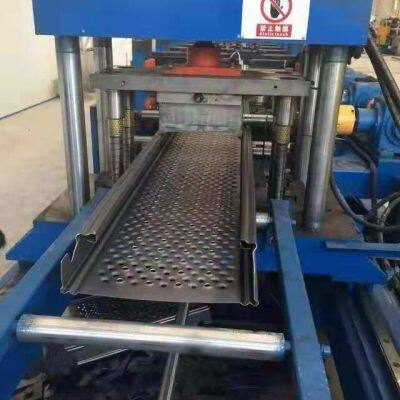

5. Roll Former
Forming station:29 rows
Finished production:scaffold platform
Forming stand: cast iron stand gear box type
Max feeding coil width:900mm
Max coil thickness:1.5-3.0 mm
Roll shaft diameter:φ80 mm
Roll shaft material:Gcr15, quenching, HRC 58-62°
Main drive motor:30kw converter motor

6. Cut Off Unit
a. Type: Hydraulic cut off (with waste material cut off)
b. Structure: locates behind roll former, the cutting length can be set freely.
Blade material: Cr12MoV, no burr with high working life, quick change, very easy and convenient to change blade distance
c. Blade quantity:1 set

7. Exit Rack
Structure: roll type, powerless

E. Electric control system
1. the whole use PLC control, LCD touch screen and HMI, set the program which can run automatically, the operator supervise the control process, realize the operator control the production line and modify the control parameters, and real time monitor the equipment running status, parameters and false alarm, the profile length setting, adjustment etc
2. operation mode has manual and automatic type and freely switch, under manual status, can run a single machine which is convenient for machine maintenance, under automatic status, it conduct the whole line running, start by sequence, the whole line has emergency stop button for emergent matter to secure the machine and personnel safety
3. near the machine has manual operation panel for operator
4 the monitoring function: real time monitoring of production line, monitor each working unit status
