Product Description
ATE200 wireless temperature sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears,fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
● Wireless frequency: 470MHz; ● Dimension: 44.17*325.40mm
● Wireless transmission distance: 150m; ● Installation: Belt
● Fast sampling frequency: 25s; ● Accuracy: ±2℃
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -50℃~+125℃.

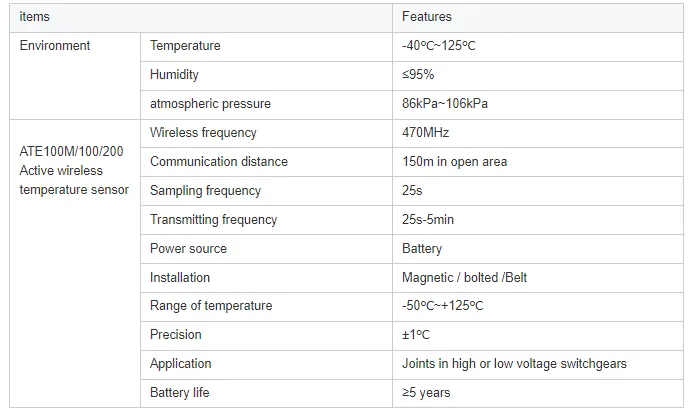

Specification
Type Selection

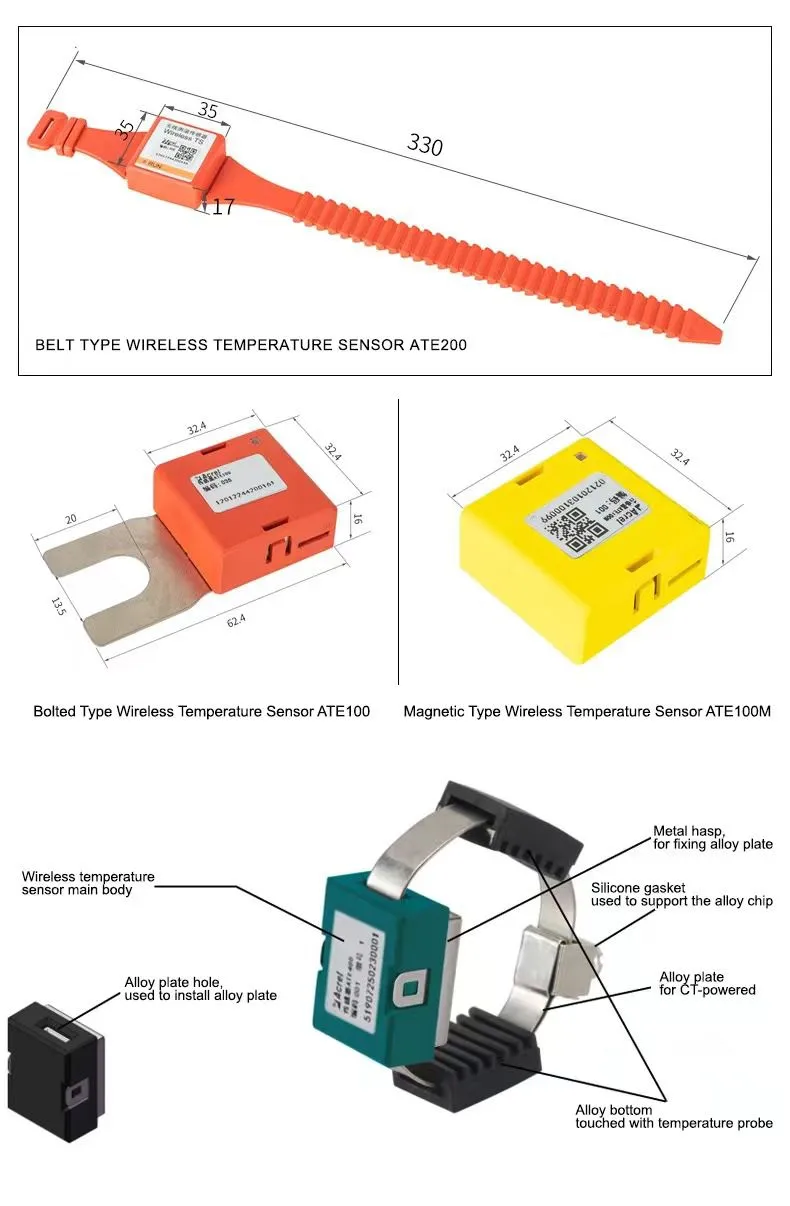

Installation of Wireless Temperature Sensor

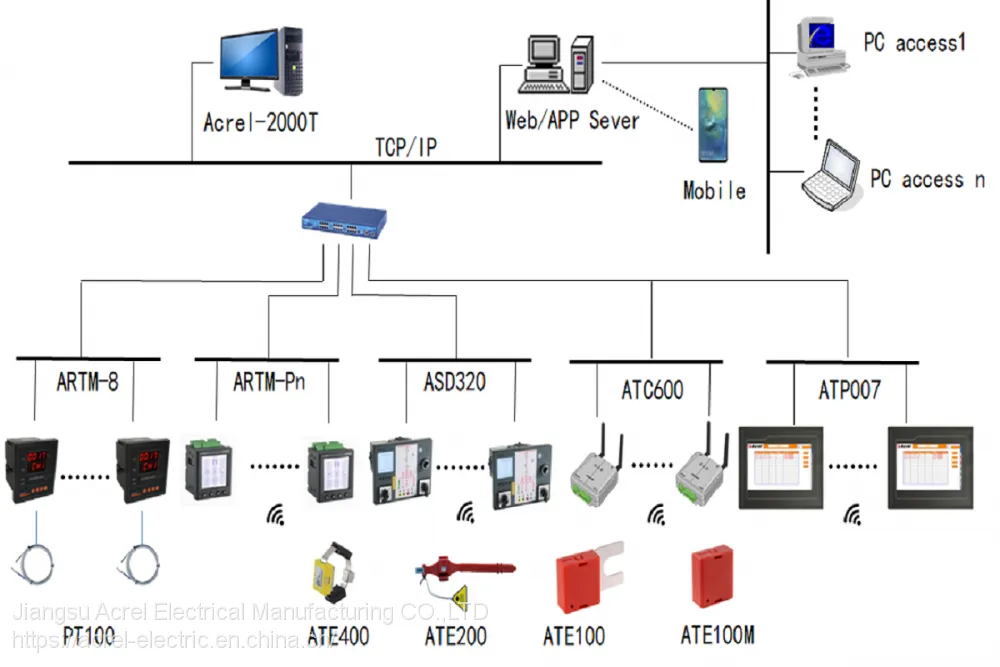

Applications
