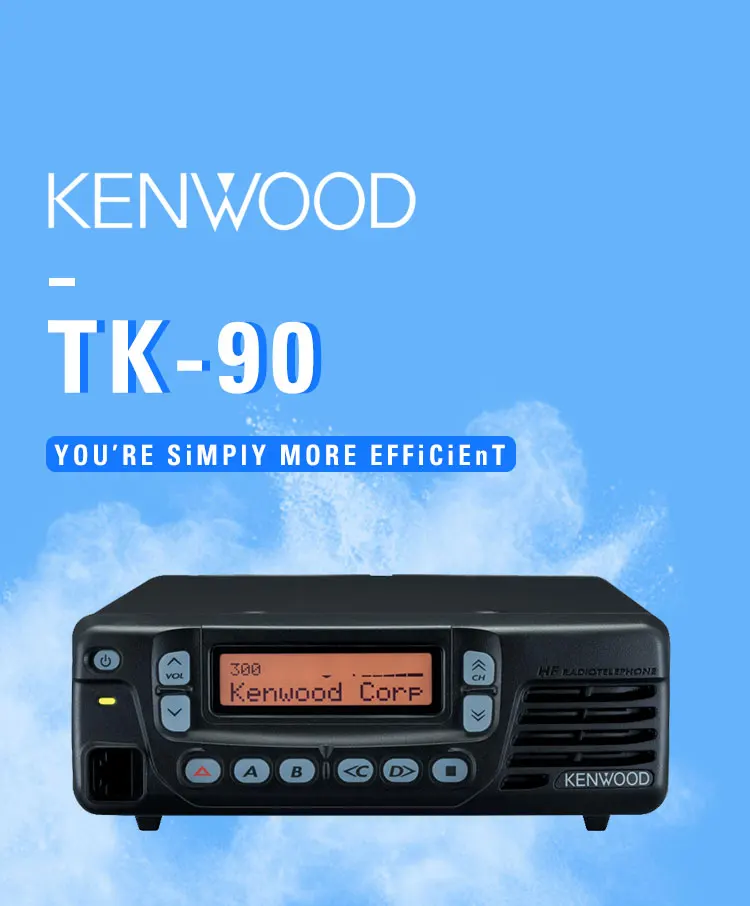

Original Kenwood TK-90 100w High Power HF/VHF Transceiver Walkie Talkie

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

Kenwood TK-90 100w

Fujian Boye Trade Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Model Number Kenwood TK-90 100w

Original Kenwood TK-90 100w High Power HF/VHF Transceiver Walkie Talkie

Product Description

GENERAL
TX Frequency Range	1.8 ~ 30.0 MHz*
RX Frequency Range	0.5 ~ 30.0 MHz
Number of Channels	300 Channels
Emission Type	J3E, J2B*2 (SSB) A1A (CW) A3E (AM) F1B (FSK)
Operating Temperature	-20°C ~ +60°C
Operating Voltage	13.6V±15%
Frequency Stability	±0.5ppm (-10°C ~ +50°C) ±1.0ppm (-20°C ~ +60°C)
Current Drain	20.5A (TX) 1.2A (Stand-by)
Antenna impedance	50Ω
Dimensions (W x H x D) Radio only Remote Panel	Projections not included 179 x 60 x 276 mm 179 x 60 x 58 mm
Weight	3.5 kg
RECEIVER
Sensitivity SSB/CW/FSK AM	4 µV (0.5 ~ 1.605 MHz) 0.25 µV (1.605 ~ 30.0 MHz) 32 µV (0.5 ~ 1.605 MHz) 2.5 µV (1.605 ~ 30.0 MHz)
Selectivity SSB/CW/FSK With KIF-2 AM	2.2 kHz (-6dB) 4.8 kHz (-60dB) 2.7 kHz (-6dB) 6.2 kHz (-60dB) 5.0 kHz (-6dB) 40.0 kHz (-60dB)
Spurious Response IF Image Rejection IF Rejection	70 dB 80 dB
Audio Output	3.5 W (4 Ω / 10% distortion)
TRANSMITTER
RF Power Output SSB/CW/FSK AM	100 W / 50 W / 25 W / 5 W 25 W / 5 W
Spurious Emission	-46 dB
Carrier Suppression	40 dB
Unwanted Sideband Suppression	50 dB (1.0 kHz tone)
Microphone Impedance	600Ω
