Batch Semi-automatic Pyrolysis Machine for Recycling Tire Plastic to Oil

Batch Semi-automatic Pyrolysis Machine for Recycling Tire Plastic to Oil photo-1

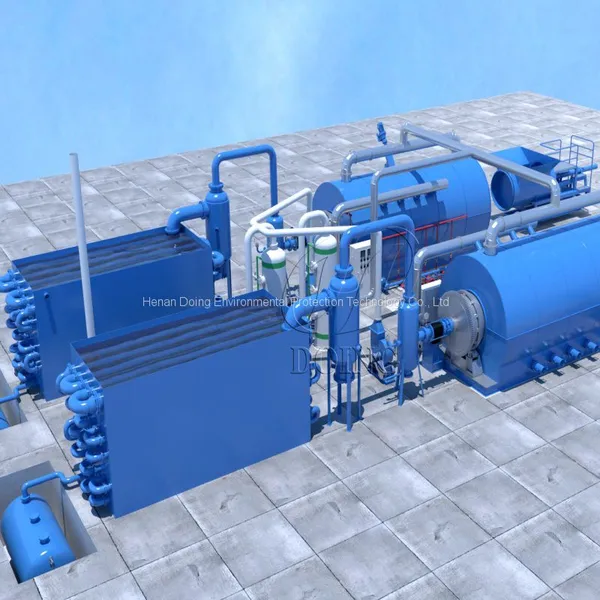

Batch Semi-automatic Pyrolysis Machine for Recycling Tire Plastic to Oil photo-2

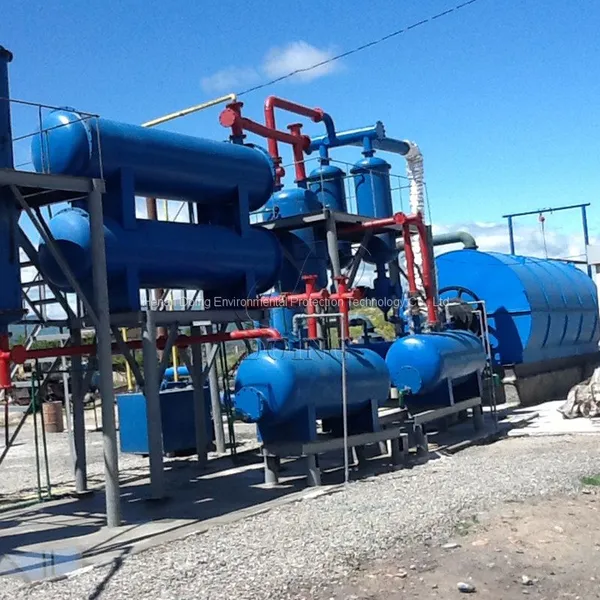

Batch Semi-automatic Pyrolysis Machine for Recycling Tire Plastic to Oil photo-3
Batch Semi-automatic Pyrolysis Machine for Recycling Tire Plastic to Oil photo-4
Batch Semi-automatic Pyrolysis Machine for Recycling Tire Plastic to Oil photo-5
US$ 50,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Henan Doing Environmental Protection Technology Co., Ltd
Place of Origin:
China
Model Number:
DY-10
Payment & Shipping
Payment Methods:
Port of Shipment:
according to your address
Delivery Detail:
15 days
Brand Name Henan Doing Environmental Protection Technology Co., Ltd
Place of Origin China
Model Number DY-10
Type Oil Purifier

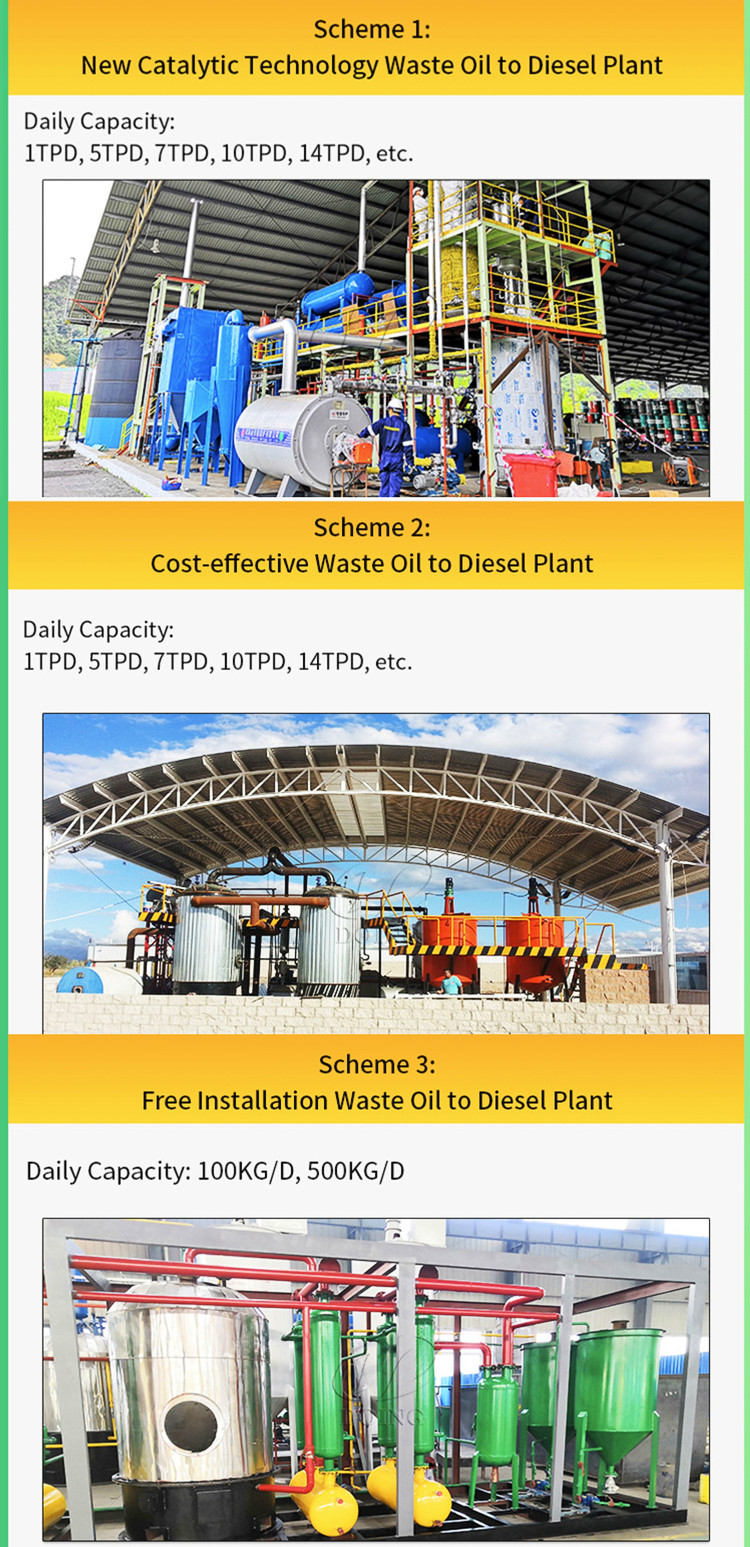

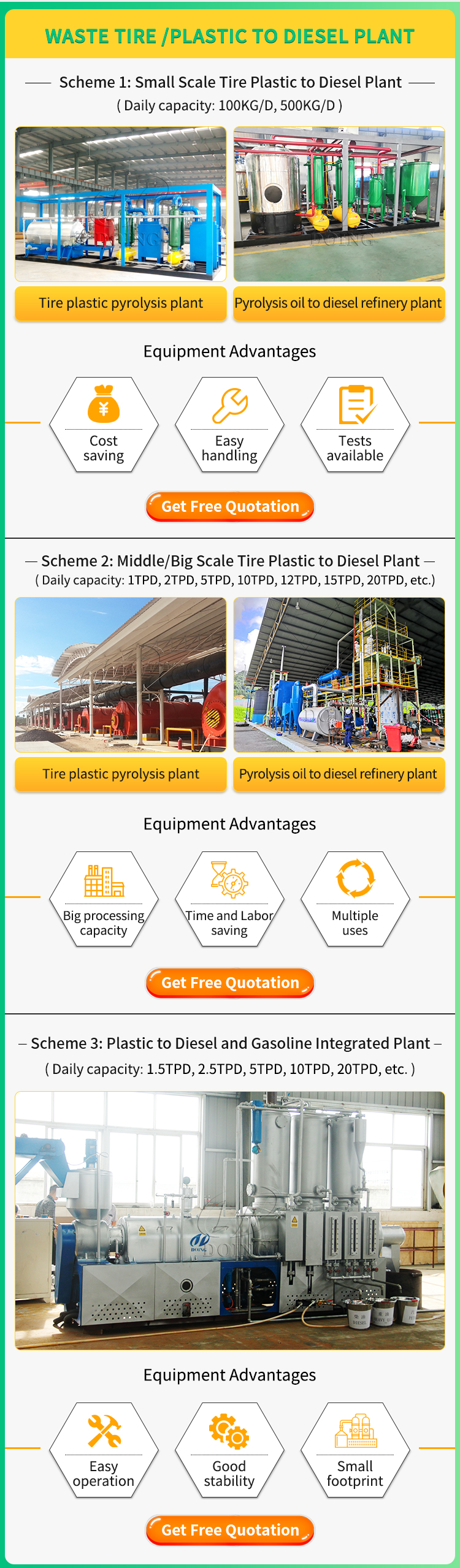

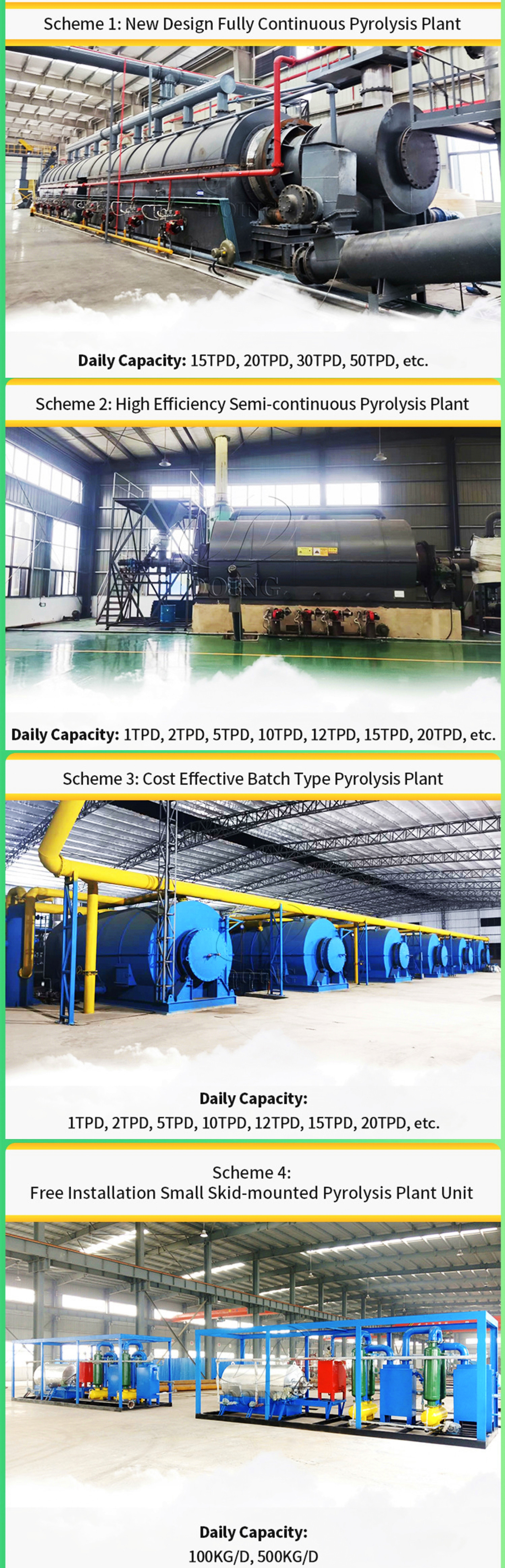

Product Schemes
Equipment Details
Items
Waste Pyrolysis Plant
Equipment type
DY-100-6
DY-1-10-12
DY-1-15-50
Raw material
Waste plastics, tyres
Waste plastics, tyres
Waste plastics, tyres
Structural form
Horizontal rotation
Horizontal rotation
Horizontal rotation
24-hour Capacity
100kg-6 ton
10-12 ton
15-50ton
Oil yield
0.45-3.3ton
4.5 -7.2ton
6.7-30ton
Operating pressure
Normal
Normal
Normal
Material of pyrolysis Reactor
Q245R
Q245R
Q245R
Thickness of pyrolysis Reactor
16mm
16mm
16mm
Rotate speed of pyrolysis Reactor
0.4turn/minute
0.4turn/minute
0.4turn/minute
Total power
15KW
15KW
65KW
Mode of cooling
Water cooling
Water cooling
Water cooling
Cooling area of condenser
100sqm
100sqm
100sqm
Kind of transmission
Internal gear drive
Internal gear drive
Internal gear drive
Noise dB(A)
≤85
≤85
≤85
Size of Reactor(D×L)
2200×6000
2600×6600
2800×6600
Working form
Intermittent operation
Intermittent operation
Intermittent operation
Delivery time
20days
20days
20days
Weight
Depends on the Scales
32T
35T
Items
Contents
Model
DY-500KG, DY-1T, DY-5T, DY-10T, DY-15T, DY- 20T...
Raw material
used motor oil, waste engine oil, tire pyrolysis oil, plastic pyrolysis oil
Structure form
Vertical (easy cleaning and maintenance)
Heating method
Indirect heating to prolong the machine service life
Operating pressure
Constant pressure
Heating material
Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate
95%
Material of reactor
4 reactor with different material
Thickness of reactor
18mm
Mode of cooling
Recycled water cooling
Power in total
20 Kw
Service life
average 7 years
Land area
180 square meters

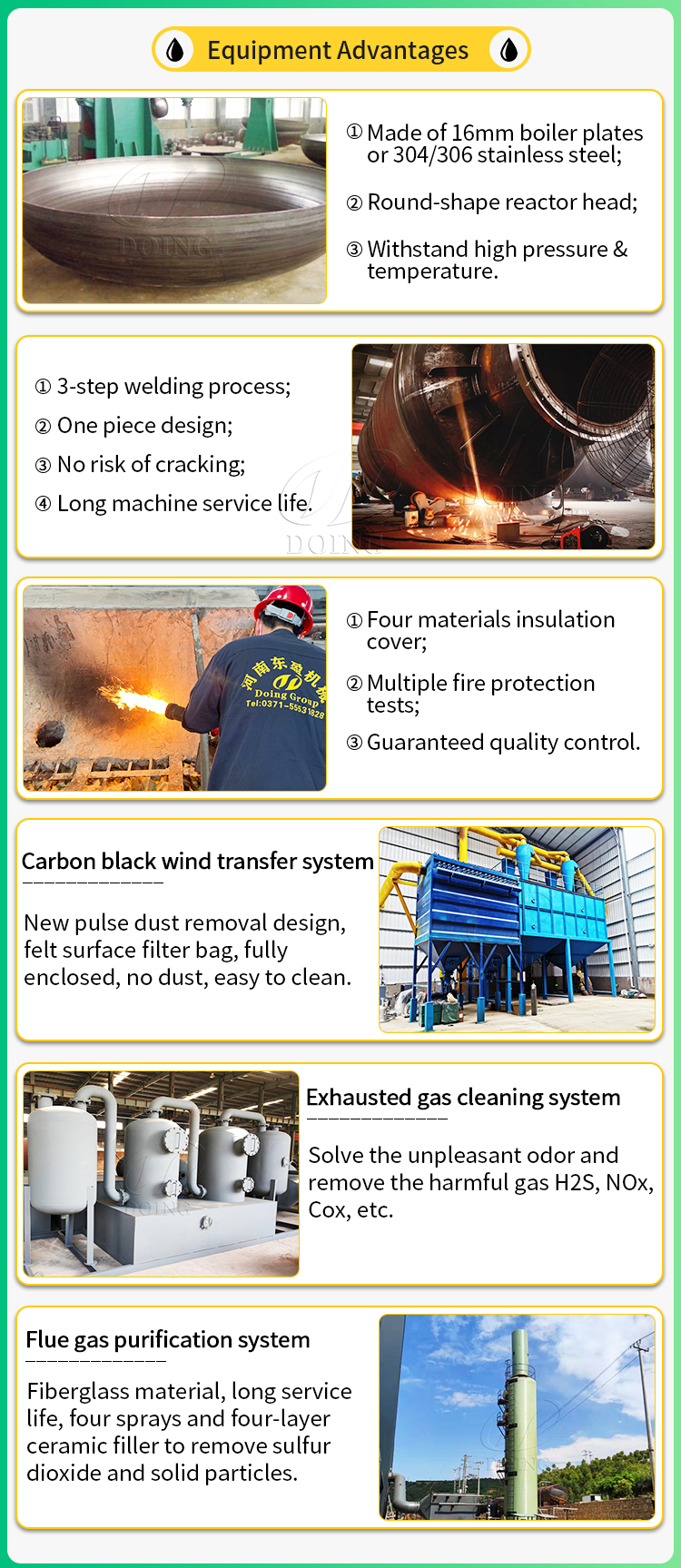

Equipment Advantages

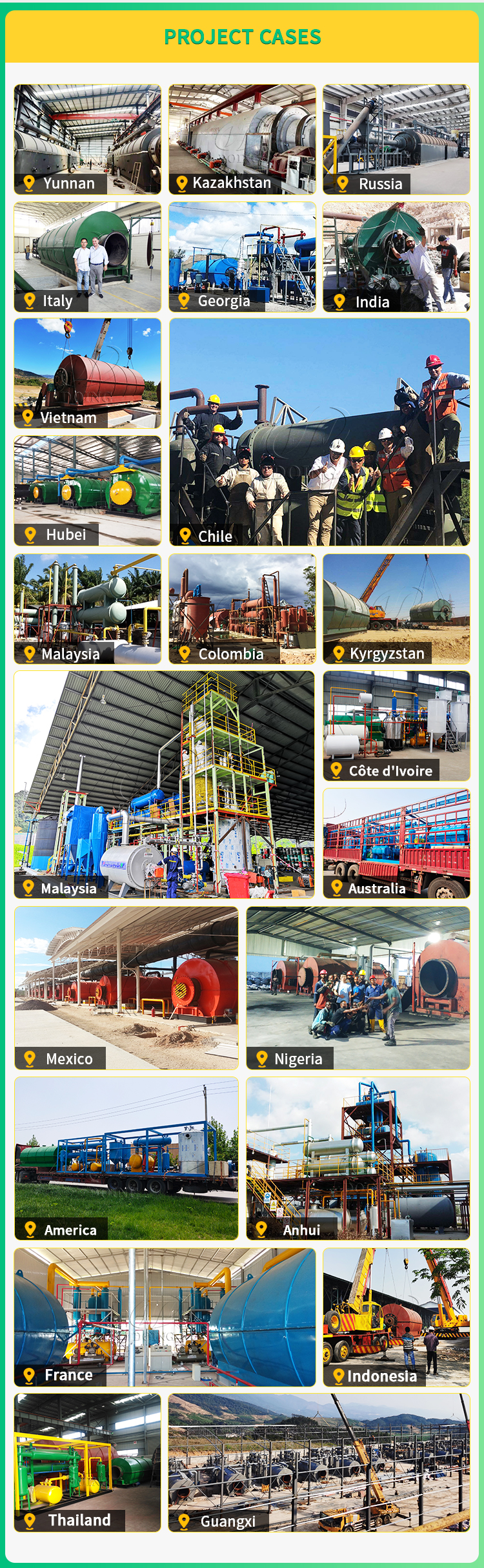

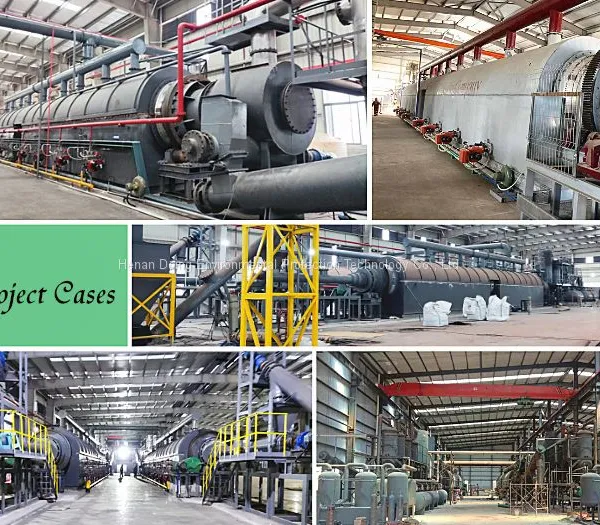

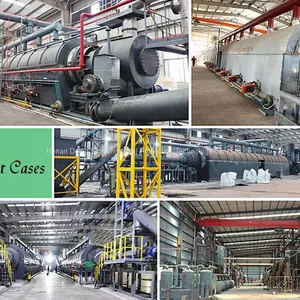

Project Case
Customer Feedback
Company Profile
Our services
FAQ

Q: How much a waste to diesel plant?A: Different capacities of waste to diesel plants have different cost. And also different desgins of pyrolysis plants and distillations plant have different cost. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence , please contact us directly.

Q: How can I sell the tyre pyrolysis oil and plastic oil?A: The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel engine. Buy our equipment, users share a large network, this network has sold buy.

Q: How many countries your machine have been exported and installed?A: Our machinery have been sold to more than 100 countries and regions around the world, winning great praise and trust of our customers all over the world! For example, Italy, Romania, Macedonia, Albania, Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo, Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand, Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica, Ecuador, Haiti, etc.Q: Can we visit your factory of pyrolysis plant ? And where is your factory?A: Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have sample machine in our factory for your visiting. Welcome at any time!


Product Tags: semi-continuous pyrolysis plant , tyre to oil pyrolysis machine , plastic to oil pyrolysis system , tyre plastic to oil recycling machine
