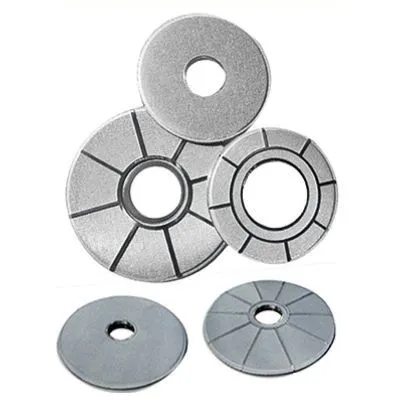

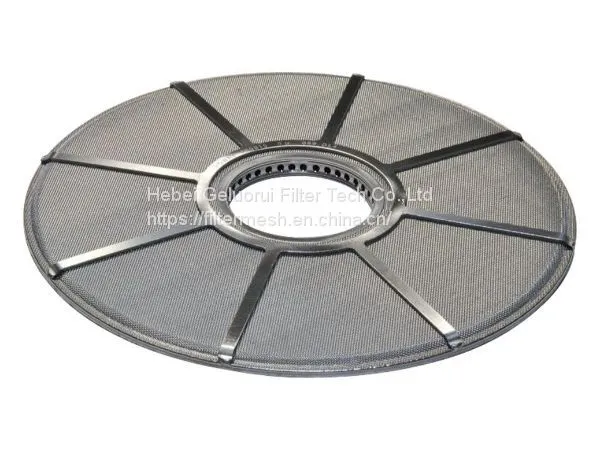

Stainless steel 316L Leaf Disc Filter

Leaf Disc Filter Screen

Glory Metal Fiber Disc Filter is applied particularly in the production of bi-drawing polyester film (up) and of polyester and chemical fiber spinning production etc(down).

Standard material is stainless steel 316L, the other alloys can be required.

Media:Stainless Steel Sintered Fiber Web

Standard hub are hard, soft, and semi-hard, our advanced construction/welding methods, result in excellent corrosion resistance.

Size :4.38"～12",Such as the size of OD181mm, OD222mm, OD297mm can also be customized

Micron Rating:3- 60μm (Various micron ratings of layers are available by demand)

Sany polymer leaf disc filter feature

High viscosity and large flow

Good cleaning performance

Long service life

Technical Data

      Operation pressure：30Mpa

      Pressure difference：10Mpa

      Filter rating：10 ~ 60μ

      Operation temperature：300℃

      Fluid viscosity：260Pa-S

Application:

Mainly used for biaxially oriented film(BOPET,BOPP,BOPA,BOPI) and battery separate film production.
