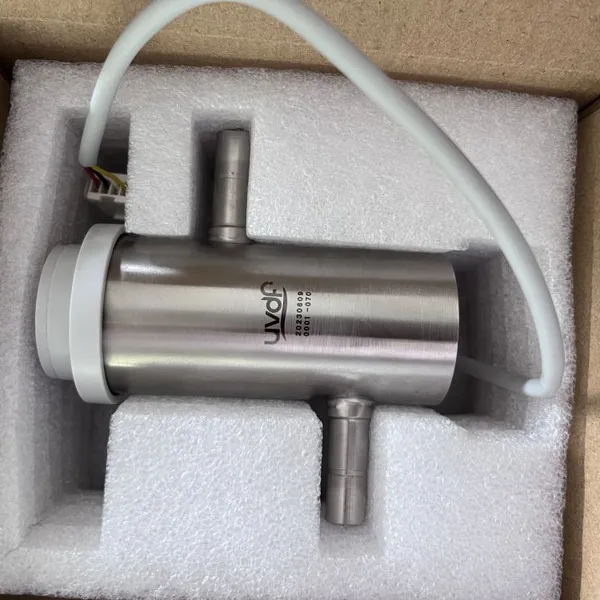

UVC LED Lamp Disinfection Device 3/8 Sterilization Equipments for Drinking Water Purifier
- 5000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card
- 40 days
- RO Water Purifier 4 Stages
- Eurocon Brass Forged fittings for Pipes
- SM wide range of brass manual ball valves Male x Female for water ,oil and gas
- Drinking Water Filter Tap Chrome gooseneck Modern European Style Fits All Water Filter Systems & RO Kitchen Faucets
- Stock For Sale Wholesale Brass Ture Color High Quality 59 Brass Elbow PEX Pipe Fitting
- Brass Swing Check Valve,One-Way Swing Check Valve for Water Female
Product Details
Brand Name: | UVDF | Place of Origin: | China | Model Number: | 3185M4 |
Type: | Other, UVC LED |
Product Description

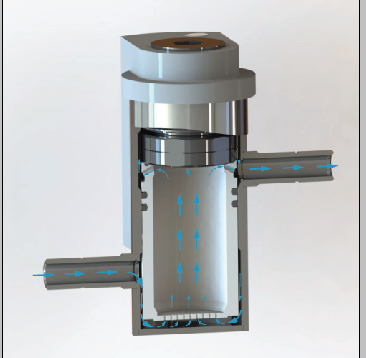

Product Name:UV Disinfection Equipment for drinking Water,inlet and outlet with 3/8" ports.
1. Functional characteristics
1) High Disinfection rate: the effective Disinfection rate of professional detection reaches more than 99.99%;
2) Wide serialization surface: it can kill pathogenic bacteria and viruses in a variety of drinking water;
3) Fast start-up: no need to wait, start in seconds, open and kill;
4) Safety and environmental protection: UV LED semiconductor material, green and pollution-free;
5) Intelligent reminder: the running status signal is transmitted to the host, which is recognised and prompted by the host;
6) Terminal serialization: the closest to the outlet to prevent secondary pollution of water sources;
7) Convenient and fast: no need to heat, no need to add,ready to drink at any time;
8) Water and electricity separation: All power-related parts are independently protected.
Item | Parameter |

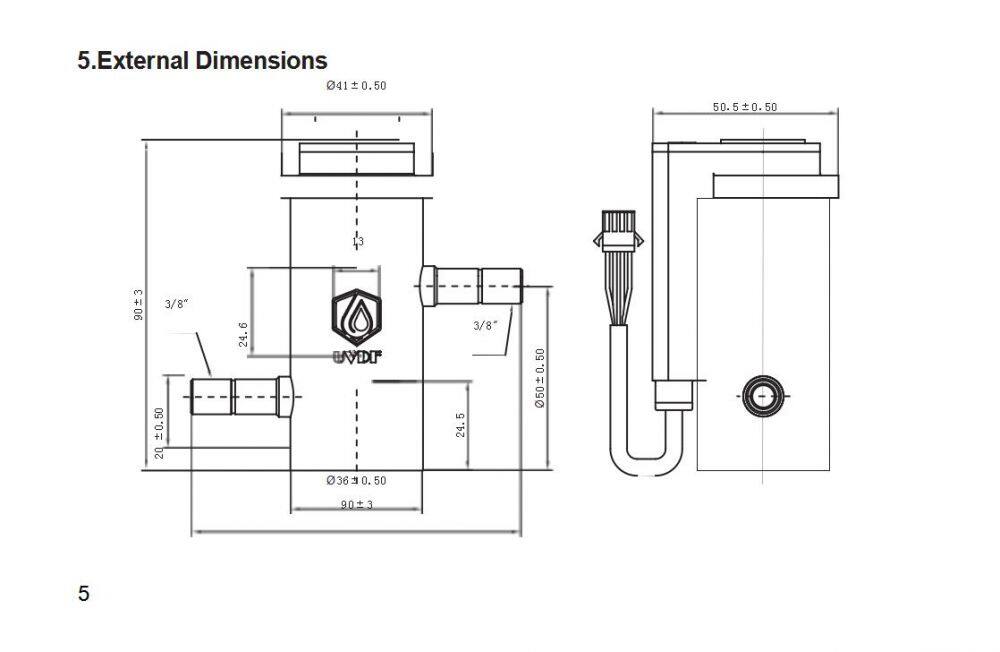

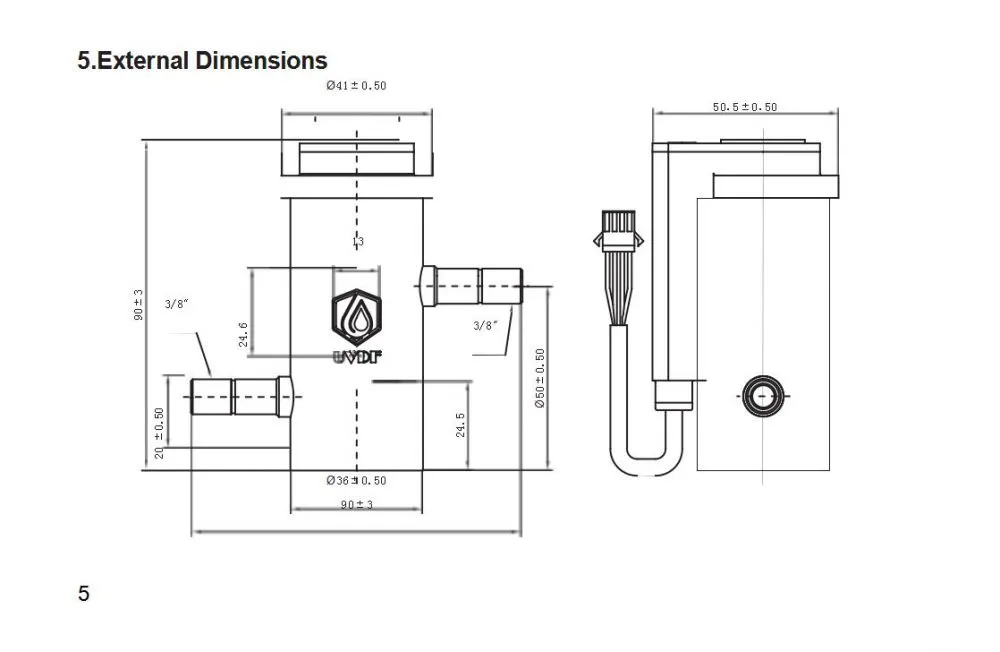

Size(mm) | Φ41x90x90 |
Net.Weight | 0.46kg |
Optional Disinfection Lamp Specification | UVC LED-40mW * lamp quantity (Up to 3 can be welded) UVC LED-50mW * lamp quantity (Up to 3 can be welded) UVC LED-60mW * lamp quantity (Up to 3 can be welded) UVC LED-70mW * lamp quantity (Up to 3 can be welded) |
Input Voltage | According to the design requirements |
Inlet Water Temp | 4-38℃ |
Use Temp | 0- 50℃ |
Working Pressure | 0.1-0.4MPa,the max will not over 1.0MPa |
Applicable Water Qualtiy | Drinking Water Filtered by water purifier |
The best Disinfection Flow | UVC LED≥70mW,the best disinfection flow≤2L/min UVC LED≥100mW,the best disinfection flow≤2.5L/min UVC LED≥140mW,the best disinfection flow≤3L/min |
Disinfection Rate | In line with the best bactericidal flow,the total bactericidal rate of E.Coli≥99.99% |
4. Installation Instruction
1.Fix the M4 sterilizer on the water purifier,and the fixed method is carried out accordingto the plan determined by the two parties during communication.
2.Put the 3/8” outlet of the water purifier Stuck into the 3/8" water inlet end connector of the equipment. After being stuck, the connector is gently pulled out and make sure it does not come out.
3.Plug 3/8” connected to the water outlet equipment into the 3/8" water outlet connecter of this device.After getting stuck, gently pull it out and make sure it’ll not come out.
4.Connect the M4 sterilizer connector to the water purifier connector.
5.Turn on the power supply and water to verify the power of this equipment.Whether the electrical status function feedback is normal and all connections are connected.Is there any leakage in the water state.
6.Function Description
Product Function Status Description | |
Nos. | Function Description |
1 | UV lamp start-up conditions: the host provides a switch signal for this product to realize the opening and closing of UVC LED lights; |
2 | This product does not have a prompt function |
3 | Service life of UV lamp: When the UV lamp is on, it should be timed, and the cumulative time can be powered off and stored. When the time reaches 1200 hours, the output signal to the host, prompted by the main body; |
4 | When the product fails,the output signal of this product to the host,which is prompted by the main body. |
