Highway 250*86mm Backward Tilt EC Centrifugal Fan Duct Ventilation Heat Exchanger Air Purifier Advertising Machine Cooling Fan

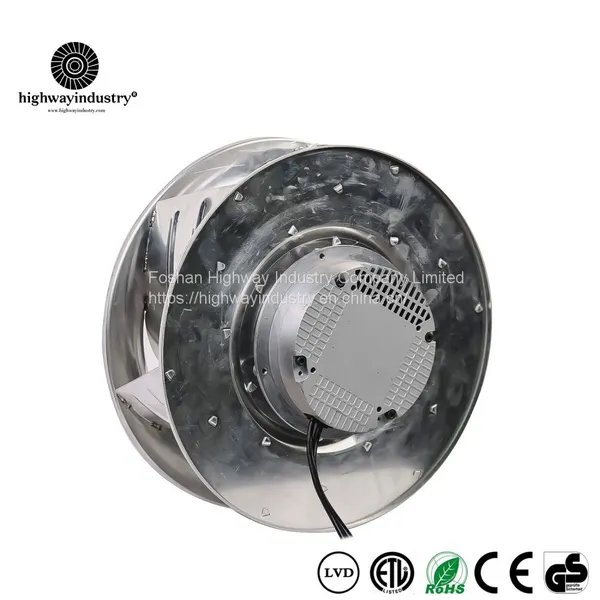

Highway 250*86mm Backward Tilt EC Centrifugal Fan Duct Ventilation Heat Exchanger Air Purifier Advertising Machine Cooling Fan photo-1

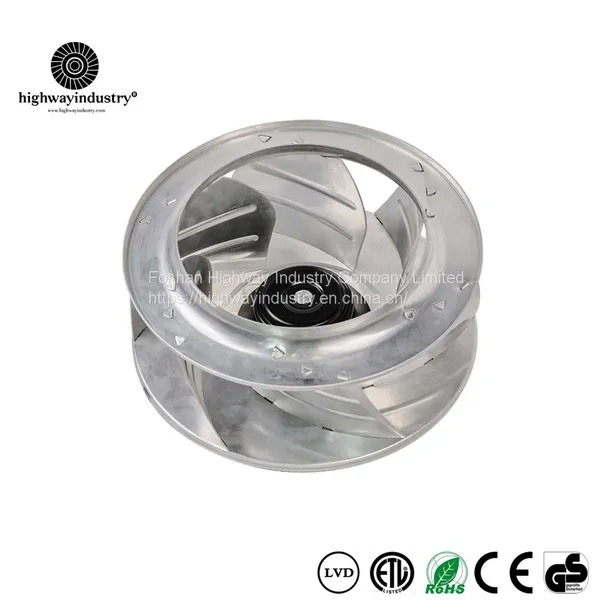

Highway 250*86mm Backward Tilt EC Centrifugal Fan Duct Ventilation Heat Exchanger Air Purifier Advertising Machine Cooling Fan photo-2

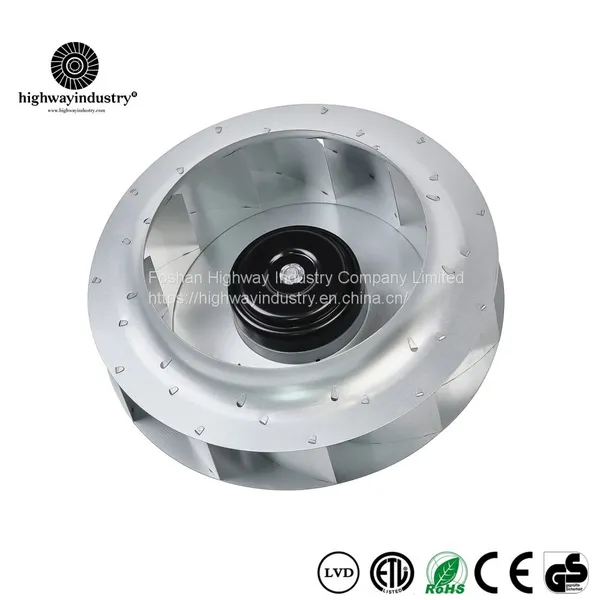

Highway 250*86mm Backward Tilt EC Centrifugal Fan Duct Ventilation Heat Exchanger Air Purifier Advertising Machine Cooling Fan photo-3

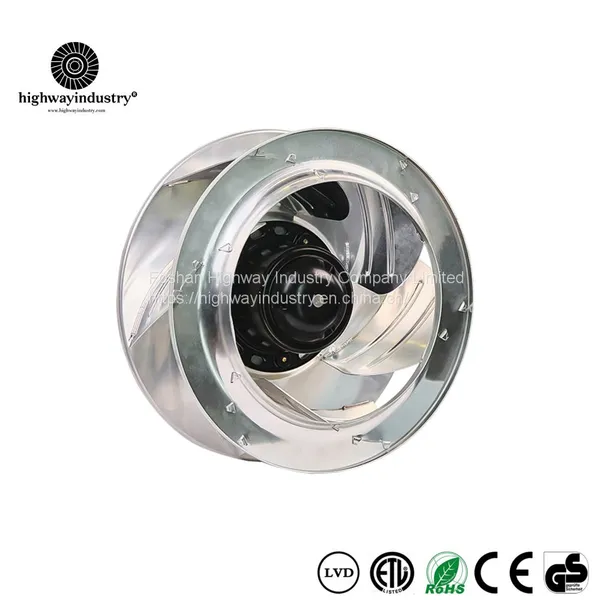

Highway 250*86mm Backward Tilt EC Centrifugal Fan Duct Ventilation Heat Exchanger Air Purifier Advertising Machine Cooling Fan photo-4
Highway 250*86mm Backward Tilt EC Centrifugal Fan Duct Ventilation Heat Exchanger Air Purifier Advertising Machine Cooling Fan photo-5
US$ 42.88 - 145.78 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
HIGHWAY
Place of Origin:
China
Model Number:
HW-B250086E220
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
20 days
Brand Name HIGHWAY
Place of Origin China
Model Number HW-B250086E220
Certification CCC, CE, ROHS
After-sales Service Provided No overseas service provided
Voltage 230V
Power 180W
Speed 2900RPM
Air Volume 1560M3/H
Blade Material Plastic
Mounting Free Standing
Electric Current Type Other, EC
Product Paramenters
Product parameters
Rated Voltage
Operating Voltage
Frequency
Input power
Rated Speed
Air Fiow
Air Pressure
Noise
Models
AC/V
AC/V
Hz
W
RPM
M3/H
Pa
dBA
HW-B133060E220
230
200~280
50/60
30
4000
365
490
63.5
HW-B175062E220
230
200~280
50/60
105
4000
750
560
73.6
HW-B190062E220
230
200~280
50/60
68
3100
650
465
68.2
HW-B225089E220
230
200~280
50/60
115
2900
1160
665
73
HW-B220064E220
230
200~280
50/60
110
3100
1055
540
70.5
HW-B250086E220
230
200~280
50/60
180
2900
1560
670
73.2
HW-B280082E220
230
200~280
50/60
180
2400
1780
640
75.5
HW-B315137E220
230
200~280
50/60
345
2200
2750
690
71
HW-B355147E220
230
200~280
50/60
285
1800
3260
695
72.3
HW-B400141E220
230
200~280
50/60
260
1450
3320
535
72.5
HW-B400162E220
230
200~280
50/60
385
1450
3980
540
76
Model naming instructions
1."HW-" stands for the abbreviation of the company name (positions in grid 1-3)
2. Fan type (F represents a forward tilt fan, B represents a backward tilt fan, A represents an axial flow fan, and C represents a cross flow fan) (positions in grid 4)
3. Outer diameter dimension of impeller (position in grid 5-7)
4. Impeller height dimension (position in grid 8-10)
5. Motor code (D for DC motors, E for EC motors, A for AC motors) (position in grid 11)
6. Voltage code (positions in grid 12-14)
Products Description
Why Choose Us
Founded in 2004, HighWay is located in Shunde District, Foshan, Guangdong Province. It is an enterprise that integrates research and development, manufacturing, and sales, focusing on the field of intelligent small and medium-sized wind turbines. The company has accumulated years of motor research and development and manufacturing technology. In a relatively short time, Highway has established a product chain group of external rotor fans covering the AC and DC fields, which is widely used in fields such as fresh air, air purification, electric power, mechanical equipment, new energy, telecommunications, heating and ventilation, refrigeration, IT, communications, and other fields. "Highway“ always adheres to the tenet of taking technology as the foundation, quality as the root, and process control. With excellent products, reasonable prices, and thoughtful service, we will create brilliance together with new and old customers."; Strive to build the enterprise into a green enterprise with advanced technology, resource conservation, and ecological friendliness
Product packaging
FAQ


Product Tags: backward centrifugal fan , EC centrifugal fan blower , air purifier cooler , EC fan , condenser blower , cooling fan
