MECHANIC ILaser W20 Laser Marking Precise Focus Machine

Mechanic iLaser W20 20W Fully Automatic Laser LCD Screen Removal Marking Machine.

Features:

1. Fully automatic laser screen remover W20 with the built-in activated charcoal smoking instrument, enclosed smoke-free and odorless operation, HD display integrated computer.

2. Fiber optic 20W high power, one key fully automatic precise focus, equipped with a fully automatic fixture.

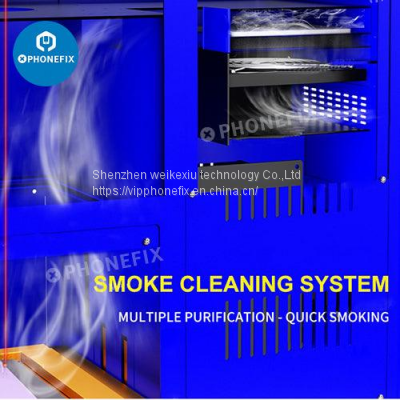

3. Built-in smoke purification system, multiple purifications, fast smoking.

4. 20W optical fiber design, long trouble-free operation, intelligent marking, giving you a different experience.

5. Removable baffle design, the baffle can be removed to hit large items.

6. HD display all-in-one computer, built-in HD computer, stores a large number of mobile phone model drawings.

7. Selected high-speed vibrating mirror, support several times laser engraving, 2~5 times higher than an ordinary vibrating mirror.

8. One key fully automatic accurate focus, stroke height up to 65MM.

9. One key fast automatic centering, no manual positioning, clamping stability, not easy to move.

Specification:

• Product Model: iLaser W20


• Product power: 500W

• Product size: 24*37*42cm

• Working voltage: 110~220V

• Wooden case size: 45*34*56cm

• Marking accuracy: ≤0.001mm

• Product net weight: 16kg

• Marking speed: ≤10000mm/s

• Gross product weight: 24kg

• Laser wavelength: 1064nm

• Screen size: 20*15cm

• Laser machine power: 20W

• Cooling method: Built-in cold air

• Repeat accuracy: ≤0.001mm

• Marking depth: 0.015~0.5mm

• Marking area: 160mm*160mm

• Marking line width: 0.05~0.1mm

Package includes:

1. 1 x Laser screen remover

2. 1 x Hexagonal spanner

3. 1 x Clamp

4. 1 x Wireless mouse

5. 1 x Wireless keyboard

6. 1 x Power cable
