Specific parameters can be viewed in the attachment, all products can be customized

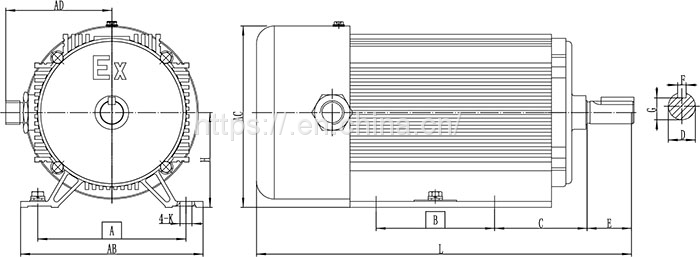

model |
number of poles | Installation dimensions and tolerances（mm) | overall dimensions（mm） | |||||||||||||||||||
A | B | C | D | E | F | G | H | K | AB | AC | AD | L | ||||||||||
Basic dimensions | Limit | Basic dimensions | Limit | Basic dimensions | Limit | Basic | Limit | Basic | Limit | Basic | Limit | Basic | Limit | Basic | Basic | Basic dimensions | Basic | |||||
YBJY63M | 2、4 |
95 | 70 | 29.5 | ±0.5 | 14 | 0 －0.021 | 27 | ±0.31 | 5 | 0 －0.03 | 11 | 0 －0.10 | 63 | 0 －0.5 | Ø9 | ＋0.43 0 | Ø1.0
| 123 | 124 | 76 | 215 |
YBJY63L | 2、4 | 230 | ||||||||||||||||||||
YBJY71M | 2、4 |
112 | 90 | 45 | ±1.5 | 14 | ＋0.008 －0.003 | 30 | ±0.2 | 5 | 0 －0.03 | 11 | 0 －0.10 | 71 | 0 －0.5 | Ø7 | ＋0.36 0 | Ø0.5
| 136 | 145 | 88 | 240 |
YBJY71L | 2、4 | 260 | ||||||||||||||||||||
YBJY80M | 2、4 |
125 | 100 | 50 | ±1.5 | Ø19 | ＋0.009 －0.004 | 40 | ±0.31 | 6 | 0 －0.03 | 15.5 | 0 －0.10 | 80 | 0 －0.5 | Ø10 | ＋0.36 0 | Ø1.0
| 155 | 154 | 95 | 296 |
YBJY80L | 2、4 | 309 | ||||||||||||||||||||
YBJY90S | 4、6 |
90 | 54 | 98 | ±1.5 | Ø14 | ＋0.009 －0.004 | 28 | ±0.31 | 5 | 0 －0.03 | 11 | 0 －0.10 | 90 | 0 －0.5 | M8 | ＋0.36 0 | Ø1.0
| 106 | 168 | 98 | 275 |
YBJY90M | 4、6 | 295 | ||||||||||||||||||||
YBJY90L | 4、6 | 325 | ||||||||||||||||||||
YBJY100S | 2、4、6 |
151 | 82 | 87 | ±1.5 | 19 | ＋0.009 －0.004 | 48 | ±0.31 | 6 | 0 －0.03 | 15.5 | 0 －0.10 | 98 | 0 －0.5 | 9 | ＋0.36 0 | Ø1.0
| 198 | 191 | 113 | 302 |
YBJY100M | 2、4、6 | 322 | ||||||||||||||||||||
