Product Description

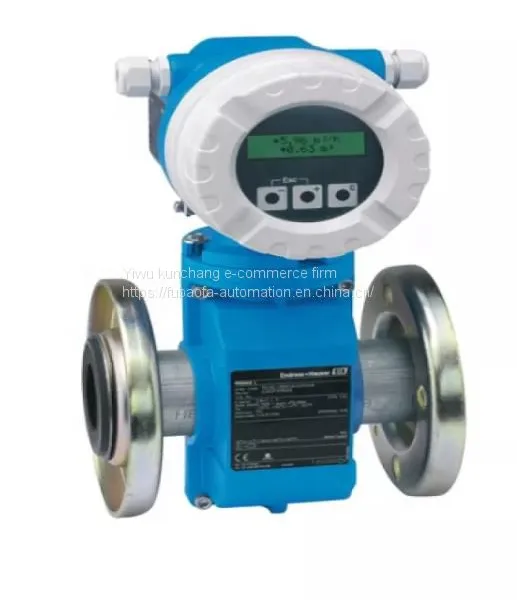

Proline Promag 10P electromagnetic flowmeter
The flowmeter for highest medium temperatures with a highly cost effective transmitter.
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.
Application
Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum conductivity of greater or equal to 50 μS/cm:
• Acid, alkalis
• Paints
• Pastes
• Water, wastewater etc.
• Flow measurement up to 9600 m³/h (42268 gal/min)
• Fluid temperature up to +130 °C (266 °F)
• Process pressures up to 40 bar (580 psi)
• Lengths in accordance with DVGW/ISO
Application specific lining material:
• PTFE
Your benefits
Promag measuring devices offer you cost effective flow measurement with a high degree of accuracy for a wide range of process conditions.
The uniform Proline transmitter concept comprises:
• High degree of reliability and measuring stability
• Uniform operating concept
The tried and tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning
| Measuring principle | Electromagnetic |
| Sensor features | Diverse applications wide variety of wetted materials. Energy saving flow measurement no pressure loss due to cross section constriction. Maintenance free no moving parts. Nominal diameter: max. DN 600 (24"). All common process connections. Liner made of PTFE. |
| Transmitter features | Cost effective designed for easy applications and direct integration. Safe operation display provides easily readable process information. Fully industry compliant IEC/EN/NAMUR. 2 line display with push buttons. Device as compact or remote version. HART. |
| Nominal diameter range | DN 15 to 600 1/2" to 24" |
| Wetted materials | Liner: PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022) |
| Measured variables | Volume flow |
| Max. measurement error | Volume flow: ±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s) |
| Measuring range | 4 dm3/min to 9600 m3/h (0.5 gal/min to 44000 gal/min) |
| Max. process pressure | PN40 Cl. 300 JIS 20K AS 2129 Table E |
| Medium temperature range | minus 40 to +130°C (minus 40 to +266°F) |
| Ambient temperature range | minus 40 to +60 °C (minus 40 to +140 °F) |
| Sensor housing material | DN 15 to 300 (½ to 12"): AlSi10Mg, coated DN 350 to 600 (14 to 24"): Carbon steel with protective varnish |
| Transmitter housing material | Powder coated die cast aluminum |
| Degree of protection | Standard: IP 67 (Type 4X enclosure) for transmitter and sensor Optional: IP 68 (Type 6P enclosure) for remote version of sensor |
| Display/Operation | 2 line display with push buttons Configuration via local display and operating tools possible |
| Outputs | 4 to 20 mA HART (active) Pulse/switch output (passive) |
| Inputs | None |
| Digital communication | HART |
| Power supply | DC 11 to 40 V AC 85 to 250 V (45 to 65 Hz) AC 20 to 28 V (45 to 65 Hz) |
| Hazardous area approvals | FM CSA |
| Product safety | CE, C tick, EAC marking |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Pressure approvals and certificates | PED |
