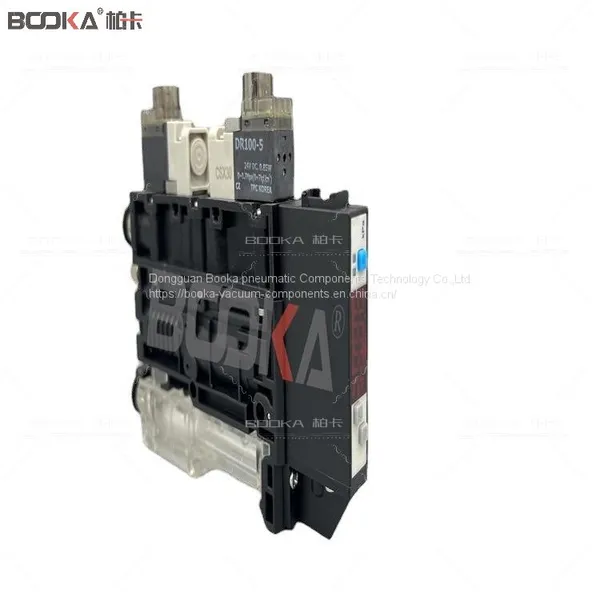

Vacuum Generator Ejector Suction Pumb Industry Vacuum Parts for PV Industry

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Booka		Place of Origin	China
Model Number	VK series		Type	Other

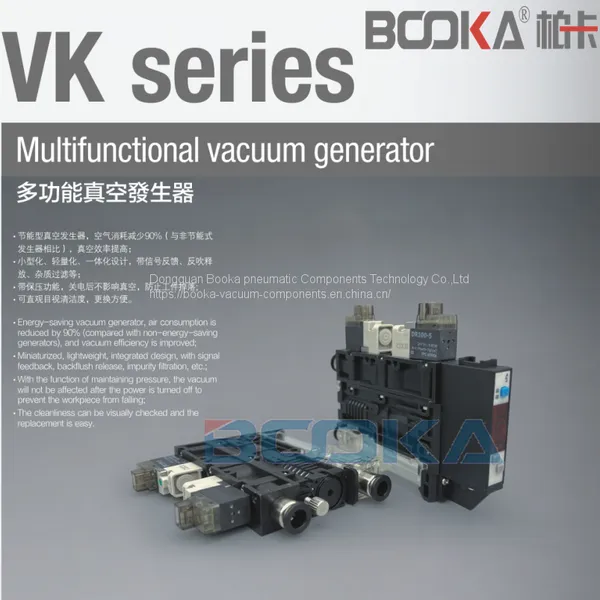

-The energy-saving vacuum generator reduces air consumption by 90% (compared to a one-stage generator) and increases air consumption by 30%.

-Miniaturization, lightweight, integrated design, with signal feedback, backflush release, and impurity filtration.

-The filter can be visually inspected for cleanliness for easy cleaning.

-The installation method is diversified.

Vacuum flow rate (L/min) with different vacuum (-kPa)
Model	Gas supply pressure bar	AirconsumptionL/min	0	10	20	30	40	50	60	70	80	90	Maximum vacuum flow L/min
VK-P	2.0	20	30.0	19.5	12.3	8.5	4.6	–	–	–	–	–	60
	3.0	29	36.0	29.0	19.8	12.5	10.3	8.5	6.1	3.1	1.1	–	89
	3.7	32	40.0	35.0	25.2	17.7	10.9	8.0	5.6	4.2	1.5	1.0	90
VK-M	4.5	27	40.0	34.0	24.5	15.0	11.5	9.5	6.8	4.5	2.5	–	92
	5.0	29	41.0	36.0	26.0	13.7	11.0	9.3	6.6	4.6	2.7	2.0	93
	6.0	32	39.0	38.0	30.0	22.4	15.0	8.3	6.2	4.6	1.9	–	94

Performance parameter
Model		KP92V-010	KP92V-030
Rated pressure range		-100~100kPa
Set pressure range		-105-105kPa
Pressure resistance		500kPa
General gas		Air, non-corrosive, non-flammable
Voltage		24V DC soil 10%， pulse (P-P) 10% or less
Current consumption		≦40mA (when no load)
Switch output	Output mode	2NPN or 2PNP open collector output	NPN or PNP open collector output
	Maximum load current	125mA
	Maximum supply voltage	30VDC ( NPN }，24VDC ( NPN )	24VDC
	Internal pressure drop	≦1.5V
	Response time	≦2.5ms (preventive malfunction: 2.5ms, 20ms, 100ms, 500ms, 1000ms and 1999ms optional)	2.5ms (preventive malfunction: 2.0ms, 100ms, 250ms, 500ms, 1000ms and 1500ms optional)
	Outputshortcircuitprotection	Have	OUT switch: Yes; V-Sol/D-Sol: None
Repeatability		±0.2%F.S±1 digit
Display method		3% digit LED 7-segment display {red) (sampling rate: 5 times/sec)
Display accuracy		±20/0F.S±1 digit
Action indicator light		OUT1: Green / OUT2: Red
Environmentally resistant	Protective structure	IP40
	Operating temperature range	Action: 0~50°C Action: 0-50°C
	Withstand voltage	1000VAC 1 minute (between lead and case)
	Insulation resistance	50M Ω or more (500VDC) (between lead and case)
Temperature characteristics		±2%F.S. (within 0~50° C temperature range)
Wire		Oil-resistant PVC wire (0.15mm2)
