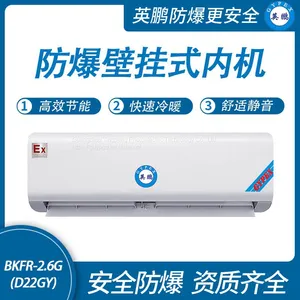

Guangzhou Yingpeng explosion-proof wall mounted internal unit -2.6G (D22GY)

Brand: Yingpeng

Model: BKFR-2.6G (D22GY)

Refrigeration capacity: 2.2KW

Heating capacity: 2.6KW

Power supply: 220V~50Hz

Refrigerant model: R410A

Rated power: 0.01KW

Noise value: 24-33dB (A)

Appearance (long × wide × High: 864x300 × 200mm

Mass: 95kg

Air volume: 400m ³/ H

Connection pipe specifications:

Gas side: 6.35mm

Liquid side: 9.52mm

Drainage pipe: DN20mm

Indoor unit model

BKFR-2.6G

(D22GY)

BKFR-2.6G

(D28GY)

BKFR-3.5G

(D36GY)

BFKT-4.5G

(D45GY)

BFKT-5.0G

(D56GY)

BKFR-7.5G

(D71GY)

Refrigeration capacity

Kw

two point two

two point eight

three point six

four point five

five point six

seven point one

Heating capacity

Kw

two point six

three point two

four

five

six point three

eight

source

220V~50Hz

Refrigerant model

R410A

Rated power

Kw

zero point zero one

zero point zero one three

zero point zero one five

zero point zero one eight

zero point zero two eight

Noise value

DB (A)

24-33

28-34

33-40

35-44

Appearance (long × wide × High)

Mm

864x300 × two hundred

nine hundred and seventy-two × three hundred and twenty × two hundred and fifteen

quality

Kg

ninety-five

one hundred and fifteen

Air volume

M ³/ H

four hundred

five hundred

six hundred

eight hundred

connect

Pipe specifications

Gas side

Mm

six point three five

six point three five

nine point five two

Liquid side

Mm

nine point five two

twelve point seven

fifteen point eight eight

Drainage pipe

Mm

DN20

Explosion proof level

Exdibmb lI BT4

Product features:

1. Uniform and comfortable air supply, multi-level debugging, through flow fan wheel for smooth and stable air supply, horizontal cooling air outlet, heating and heating air downward, ensuring that the room temperature quickly and evenly meets the set requirements.

2. Adopting an efficient multi fin radiator, the refrigerant has more contact with the air when passing through, which can greatly improve the cooling and heating effect of the air conditioner.

3. Automatic operation mode, multiple protection, fault self-diagnosis, intelligent defrosting, low-temperature start, and timing function.

4. Beautiful appearance, easy operation, space saving, and easy installation.

5. Adjustable wide angle air supply, with a fixed outlet angle and automatic up and down sweeping to ensure uniform indoor airflow distribution.

6. The latest explosion-proof structure design is convenient to install, safe and reliable, and has more guaranteed quality.

The working principle of explosion-proof wall mounted air conditioning:

By utilizing the characteristics of heat release during refrigerant liquefaction and heat absorption during gasification, the low-temperature and low-pressure refrigerant gas is compressed into a high-temperature and high-pressure liquid through a compressor. After a series of transformations and operations, the refrigerant is liquefied and gasified in the heat exchanger of the internal and external units, and in the evaporator of the internal unit of the refrigerant, it is in a gasification and heat absorption state, which is refrigeration.

Applicable places: Suitable for workshops, control rooms, laboratories and other places with temperature control requirements to regulate temperature, as well as dangerous places such as petroleum exploration, chemical industry, oil refining, oil tankers, metallurgy, medicine, light industry, textile, food, bioengineering, aerospace and aviation engineering.
