High Grade Safety Level DC12V Home Natural Gas Solenoid Shut Off Valve

1. Features:

*Gas medium: Natural gas/ LPG gas/ Town gas/ Coal gas
*DC power drive:  DC9-12V
*Auto shut off when gas leak
*1 second fast response when gas leak
*Manual switch-on ensuring safety
*High heat and corrosion resistant alloy materials ensure long usage life, Cooper material is option
*Simple connection and installation
*DN15(1/2 inch), DN20(3/4 inch), DN25(1 inch) optional

2. Technical data

◆ Suitable gas types: LPG
◆ Closing modes: Current impulse or manual
◆ Body: Wrought aluminum alloy
◆ Driving Voltage: DC 9-24V
◆ Sealing material: NBR rubber
◆ Close time: <1sec
◆ Operation temperature: -10~50℃
◆ Explosion proof mark: Exmb ||T4
◆ Pressure max: 50kpa
◆ Lead wire: 0.4m
◆ Connection: G1/2", G3/4", G1"
◆ Turn on: Manual

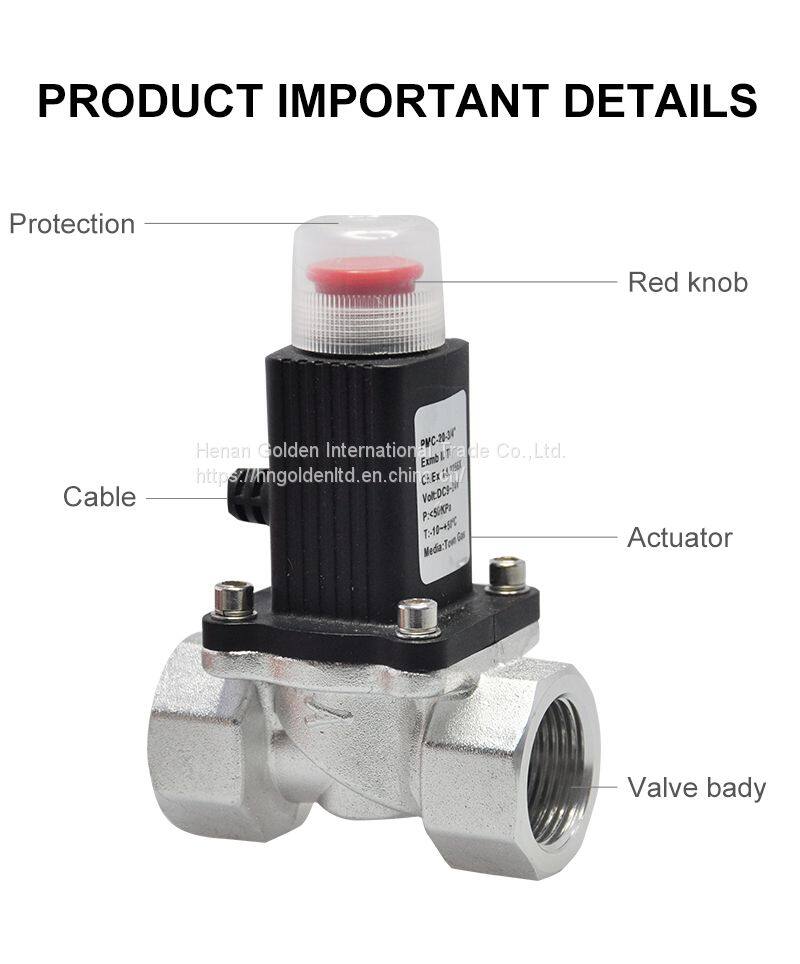

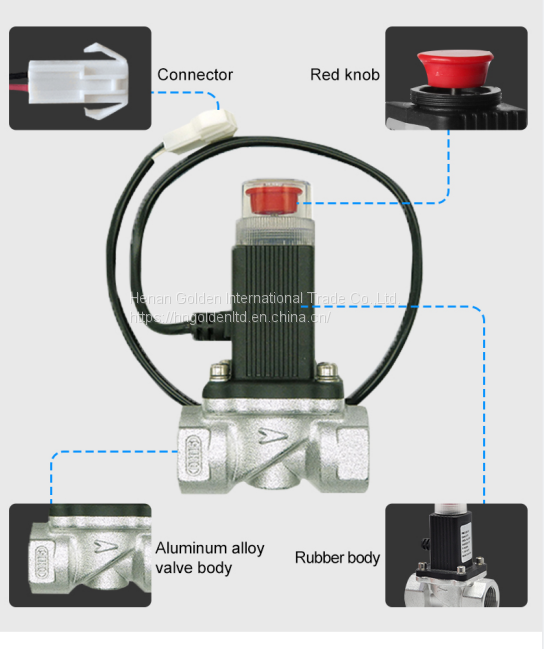

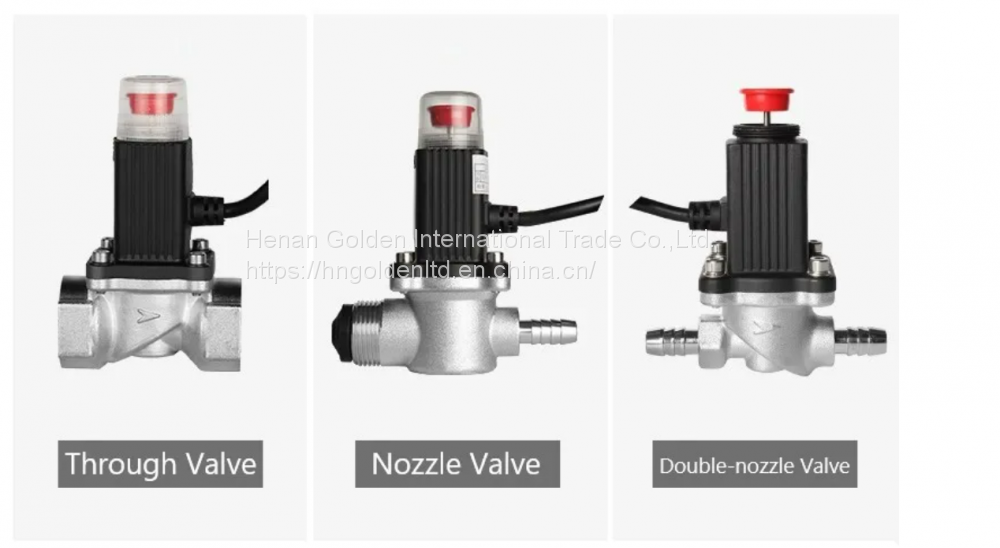

3.Detailed Photos:
