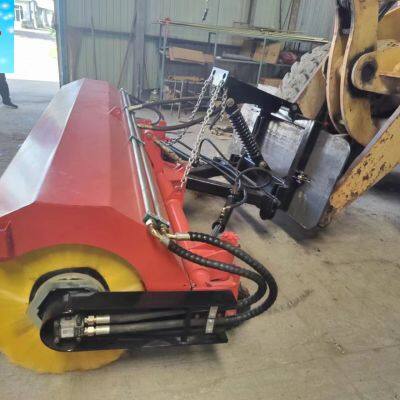

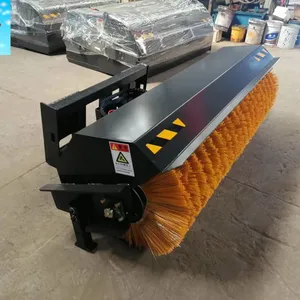

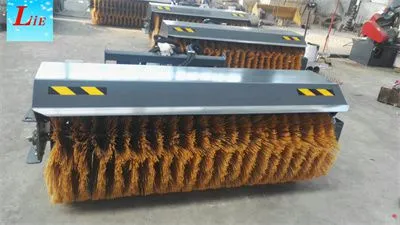

China skid steer sweeper broom angle broom angle sweeper
The Sweepers Broom (Truck and Wheel Loader Angle Sweeper) is designed for use on large wheel loaders, trucks or tractors. Use for windrowing material left, right or straight. Available in 8- or 9-foot widths and with manual or hydraulic angling.

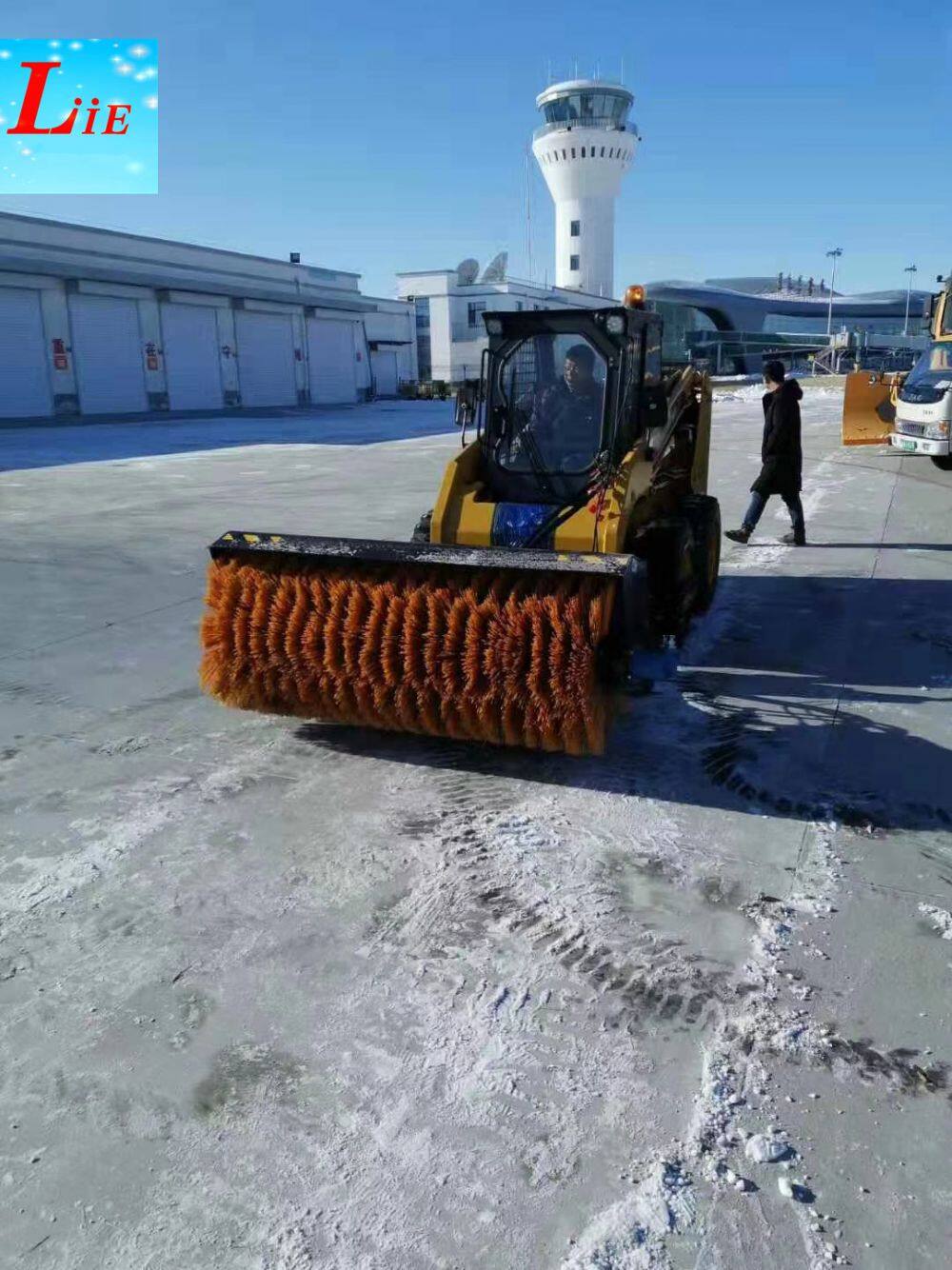

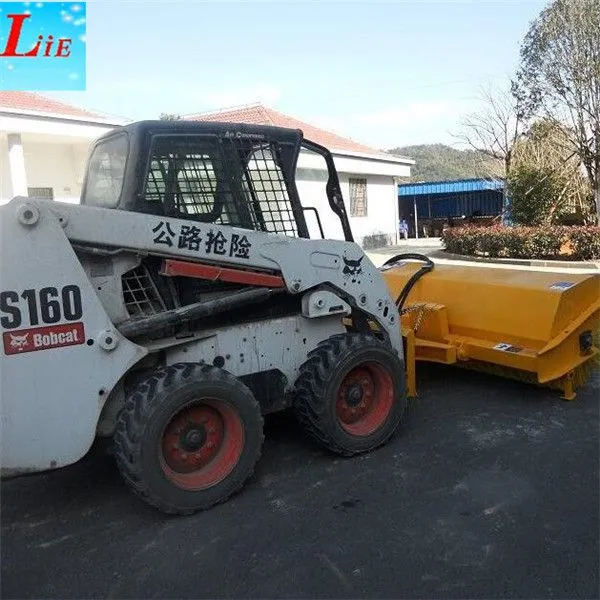

•Angle broom sweeper is a kind of economical road-cleaning equipment,hydraulic-driven angle broom can be
•installed on skid steer loader,forklift,ect,It can be used for many places such as cleaning driveway,
•sideway,parking pot,dock,warehouse,etc,especially suitable for cleaning slight snow on the road.
•The maximum angle degree is about 30 degree,by pressing with hand to control the angle,quickly
•cleaning thick snow from the edge of streets and the corner of walls,dirt and thin ice after
•being compacted.
Model | 020160 | 020172 | 020184 |
Operating Weight(Kg) | 270 | 350 | 498 |
Working Width B(mm) | 1524 | 1829 | 2134 |
Operating Width (fully angle) BB(mm) |
1233 |
1542 |
1754 |
Overall Width A(mm) | 1790 | 2082 | 2402 |
Angle(°) | 30 | 30 | 30 |
Brush diameter(mm) | 800 | 800 | 800 |
Bristle number(pcs) | 31-34 | 38-42 | 46-50 |
Drive System |
hyd.motor direct drive |
hyd.motor direct drive |
hyd.motor direct drive |
Motor Flow(Lpm) | 60-80 | 60-80 | 60-80 |
Operating Pressure(Psi) | 2000-3500 | 2000-3500 | 2000-3500 |
FAQ
We are a manufacturer. We have seven years of experience in manufacturing attachments for skid steer,loader,excavator and tractor,ect. It is the top producer and exporter in the industry.
Our factory is in Wutun Industry Garden,Gulou,Xuzhou City,Jiangsu Province, China
It's near Qingdao/Shanghai/Lian Yungang port.

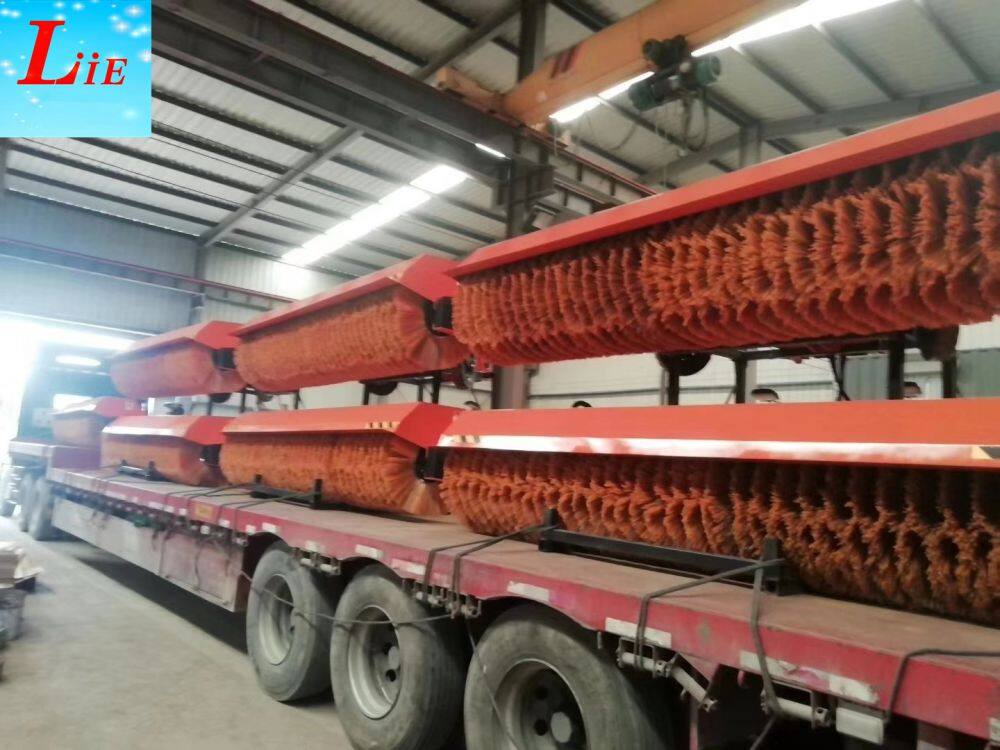

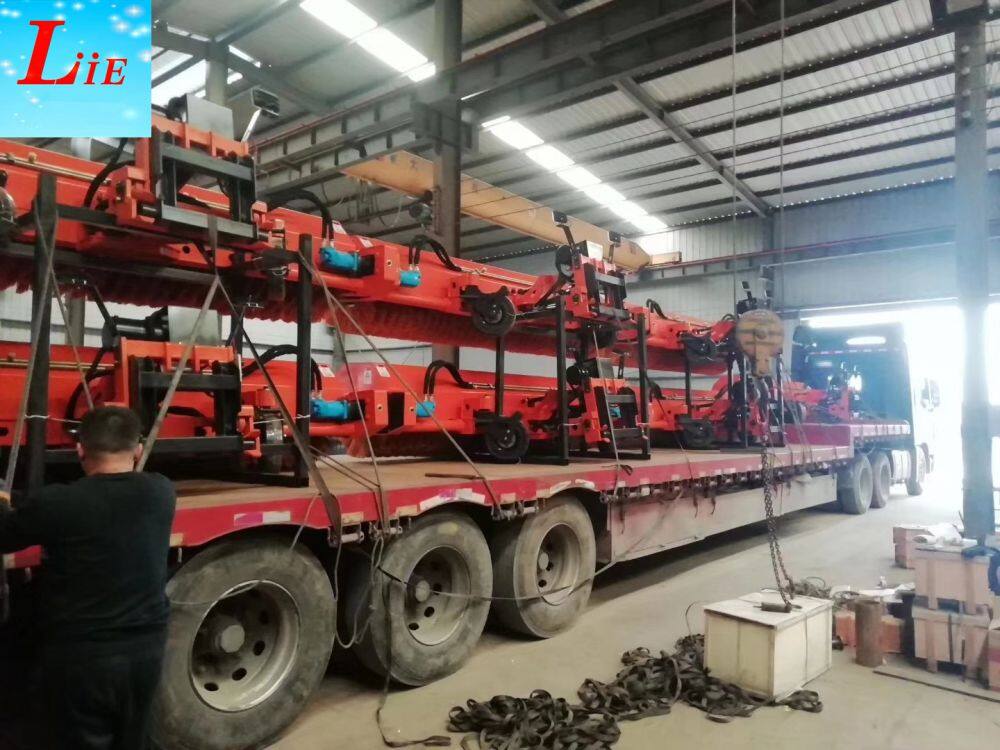

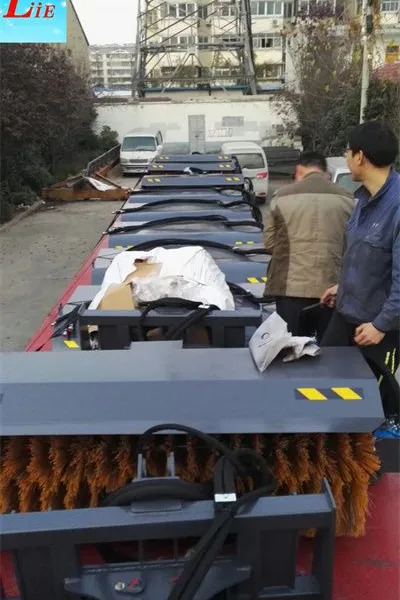

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification. Have you opened a new location, redesigned your shop, or added a new product or service? Don't keep it to yourself, let folks know.
We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
