Home > Electrical & Electronics > Electric Motor > DC Motor > 16Mm 24V 20000Rpm Slotless Dc Brushless Motor 1650R High Speed For Dental Equipment Nail Drill And Polisher

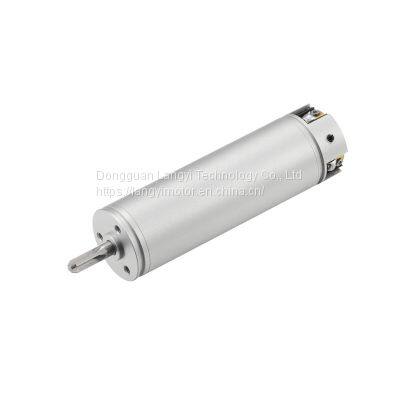

16Mm 24V 20000Rpm Slotless Dc Brushless Motor 1650R High Speed For Dental Equipment Nail Drill And Polisher

16Mm 24V 20000Rpm Slotless Dc Brushless Motor 1650R High Speed For Dental Equipment Nail Drill And Polisher photo-1
16Mm 24V 20000Rpm Slotless Dc Brushless Motor 1650R High Speed For Dental Equipment Nail Drill And Polisher photo-2
16Mm 24V 20000Rpm Slotless Dc Brushless Motor 1650R High Speed For Dental Equipment Nail Drill And Polisher photo-3
16Mm 24V 20000Rpm Slotless Dc Brushless Motor 1650R High Speed For Dental Equipment Nail Drill And Polisher photo-4
16Mm 24V 20000Rpm Slotless Dc Brushless Motor 1650R High Speed For Dental Equipment Nail Drill And Polisher photo-5
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Langyi
Place of Origin:
China
Model Number:
1650RB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen & Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Langyi
Place of Origin China
Model Number 1650RB
Type Other, BLDC motor
Certification CE, ROHS
Torque 3.9-7.5 mNm (rated)
Usage Other, Cosmetic equipment
Construction Permanent Magnet
Efficiency IE 2
Protect Feature Drip-proof
Voltage(V) 12-24V
Output Power 14.5W
Continuous Current(A) 0.09-0.15 A
Speed(RPM) 26000-38300rpm
Commutation Brushless

16Mm 24V 20000Rpm Slotless Dc Brushless Motor 1650R High Speed For Dental Equipment Nail Drill And Polisher






1.Certification: ISO9001, ROHS,etc.
2.Size: Dia 16 * L 50 mm
3.Rated Voltage: 12-24 V
4.No load speed : 25000-38000 rpm
5.No load current: 90-150 mA
6.Stall torque: 35.4-83 mNm




Application :

Our prodcuts are widely used in aviation, tools, medical, robotics, tattoo machine,automation, safety lock, security and other fields to promote the development of key application systems worldwide.



Company Info


Dongguan Langyi Technology Co., Ltd was established in 2012, We have a strong R&D team and the manufacturing capability. Having a professional hollow cup motor production line, We are sure to help you build an outstanding efficient transmission system with our technical innovation and customized services.




1) Competitive Advantages

  • 10+year experience in manufacturing coreless motor

  • We provide technical support from r&d,  testing, assembly and serial production , ODM

  • Competitive Price & High quality motor

  • Product Performance: Low noise, High efficiency, Long lifespan,Low fever,High speed,Low vibration

  • Delivery Time: 35 working days after payment

  • Small Orders Accepted in 500 PCS


2) We have passed  ISO9001:2015 and patent certifications



3) Our Services


  • ODM,our motor can be customized as clients' requirements

  • Gearbox design and development

  • Related technology support

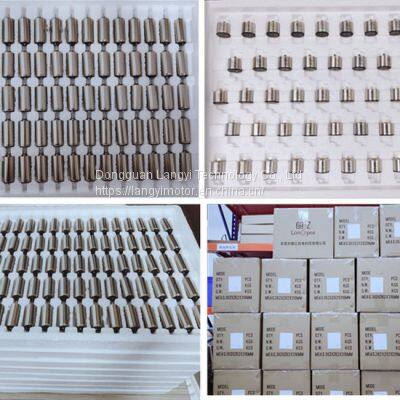

Production and Equipment


Automation



Exibition



Our Team




Our Friendship









Product Tags: coreless brushless motor , DC motor , nail drill and polisher motor
