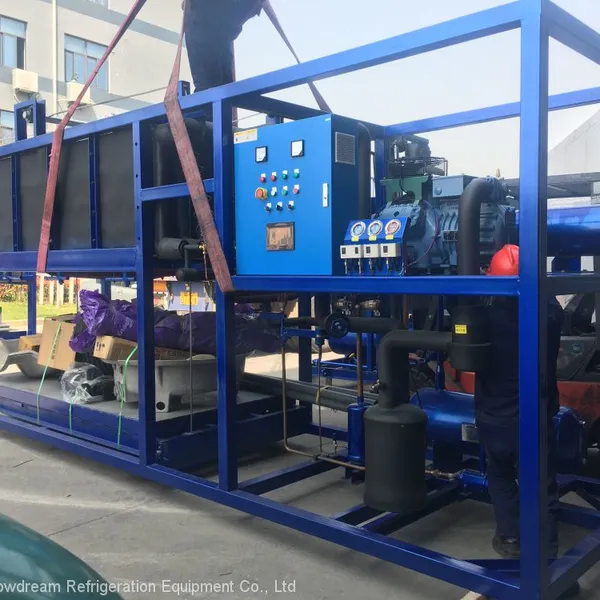

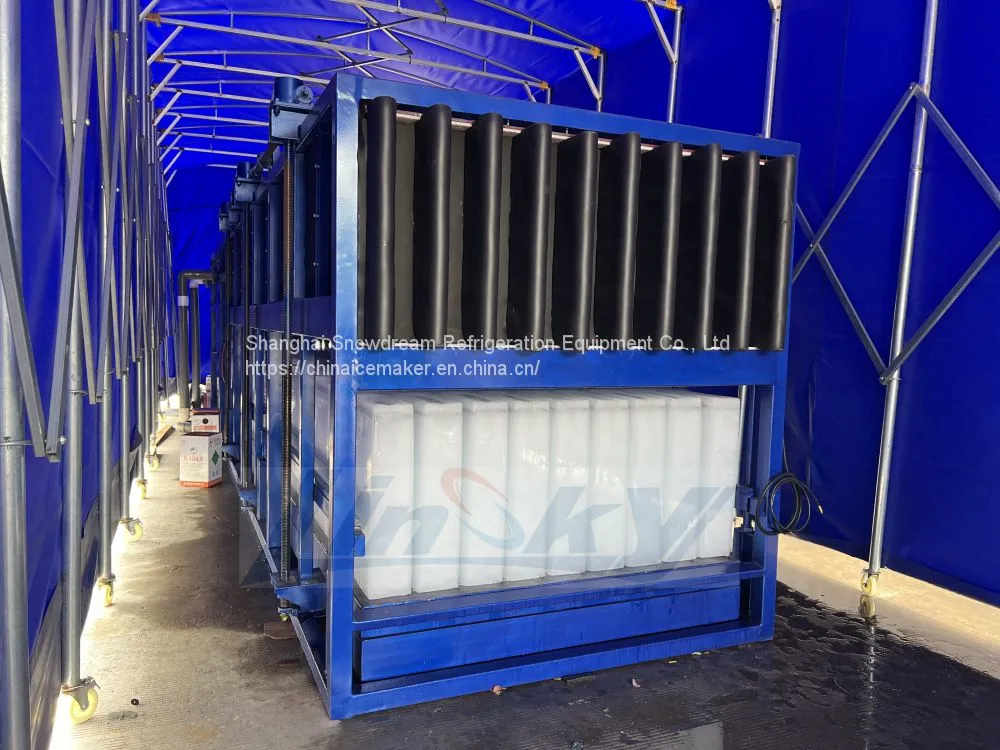

5Ton/24hr Automatic Block Ice Machine

Direct Cooling Block Ice Machine Features:
● Adopts latest technology, no need of brine tank;

● Aerospace aluminum alloy 6063-T5, high heat transfer coefficient, high strength and robust evaporator by enhanced welding technology;

● Direct heat exchange between the water and refrigerant in aluminum evaporator brings higher ice making efficiency, thus ice forms 1.5 times faster than ordinary ice machine which uses brine water;

● Easy-to-operate screw rod lifting mechanism gets feedback from the distance sensor which can realize more precise and safe control;

● Passive reservoir control method applied to specify precise liquid supply, which increases ice making efficiency and system reliability;

● Automatic water adding function by back type liquid level control technology;

● Silicone foam seal avoids evaporator dripping problem;

● Unique refrigeration system, using hot gas defrost technology makes easier and automatic ice harvest;

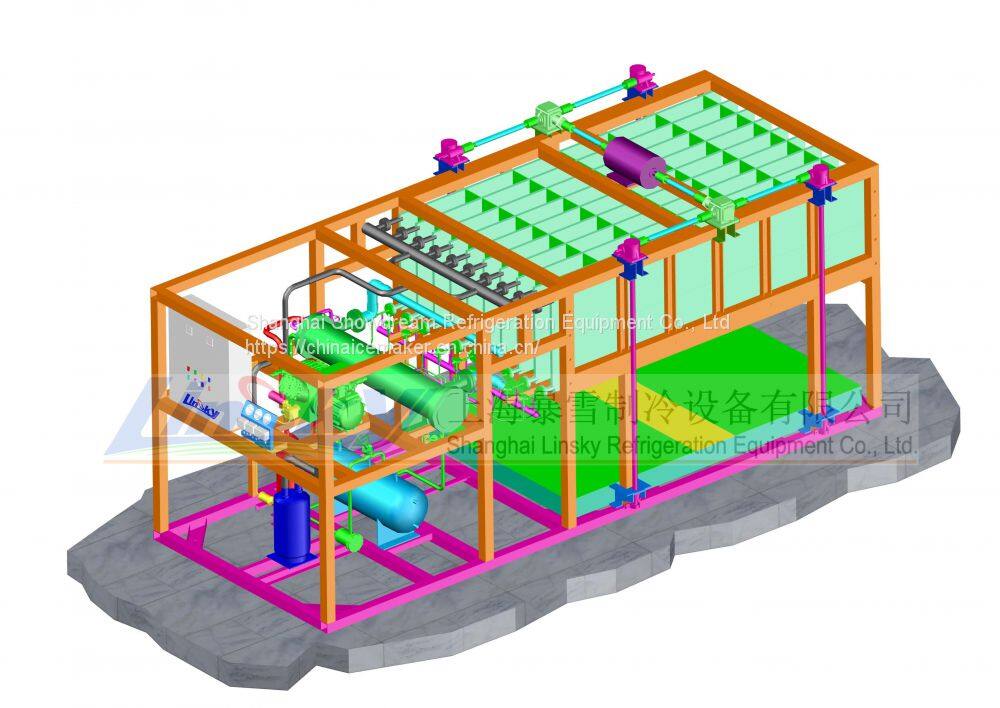

● Integrated modular design facilitates installation and maintenance on the spot;

● Food grade manufacturing process, totally complies with food standard

For this 5Ton/24hr direct cooling block ice machine:
(1) Model: LIB-50D
(2) Daily capacity: 5Ton/24hr
(3) Power supply: 380V/50Hz/3P

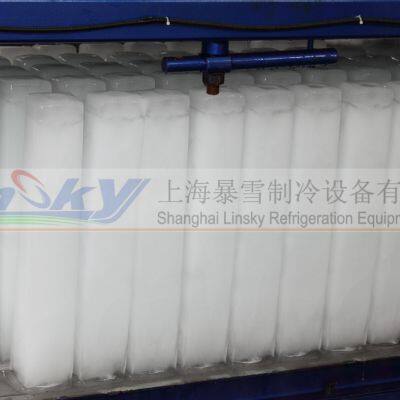

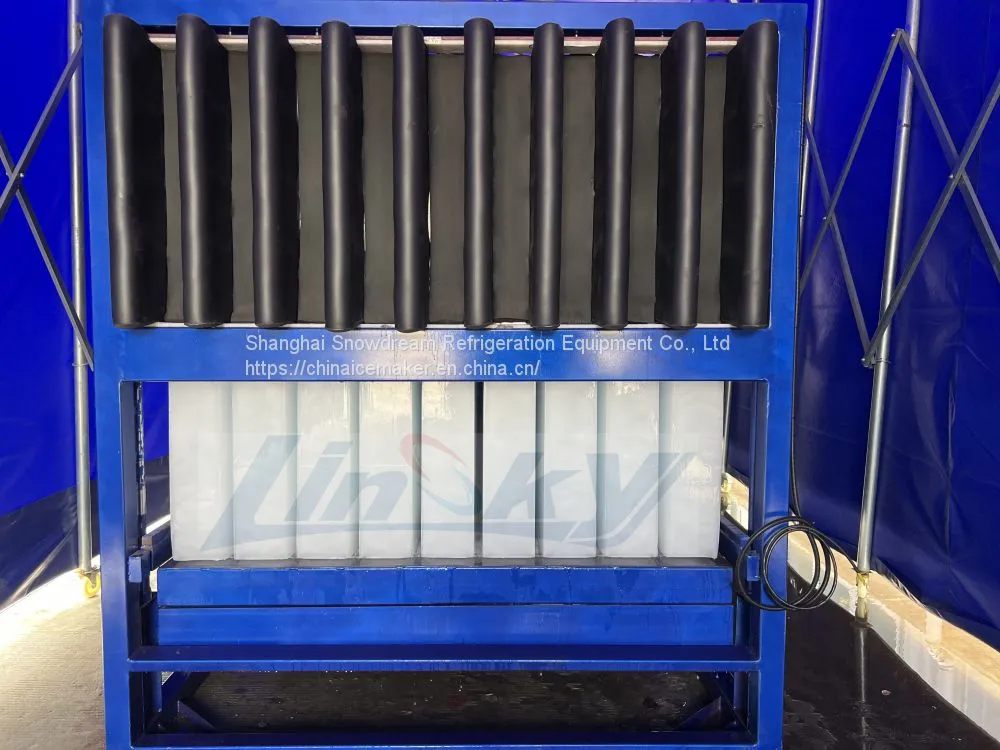

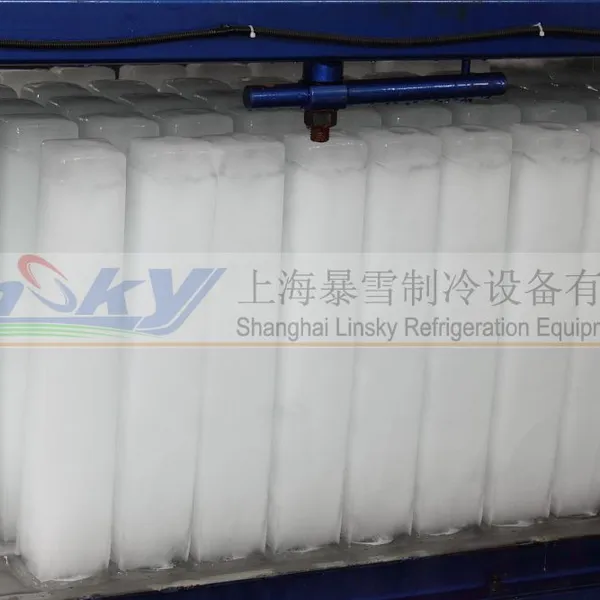

(4) Block ice weight: 50kg

(5) Block ice size: 450mm*170mm*800mm

(6) Block ice model: 54 pieces per times, harvest 2 times per day

(7) Per day can harvest 108 pieces 50kg block ice

(8) Power: 23kw

(9) Compressor: Bitzer (Germany) or Hanbell (China)

(10) Valves: Danfoss (Denmark)

(11) PLC: Siemens Germany

(12) Electrical Components: Schneider France

(13) Machine dimension: 4800mm*1800mm*2200mm

(14) N.W: 4000kg

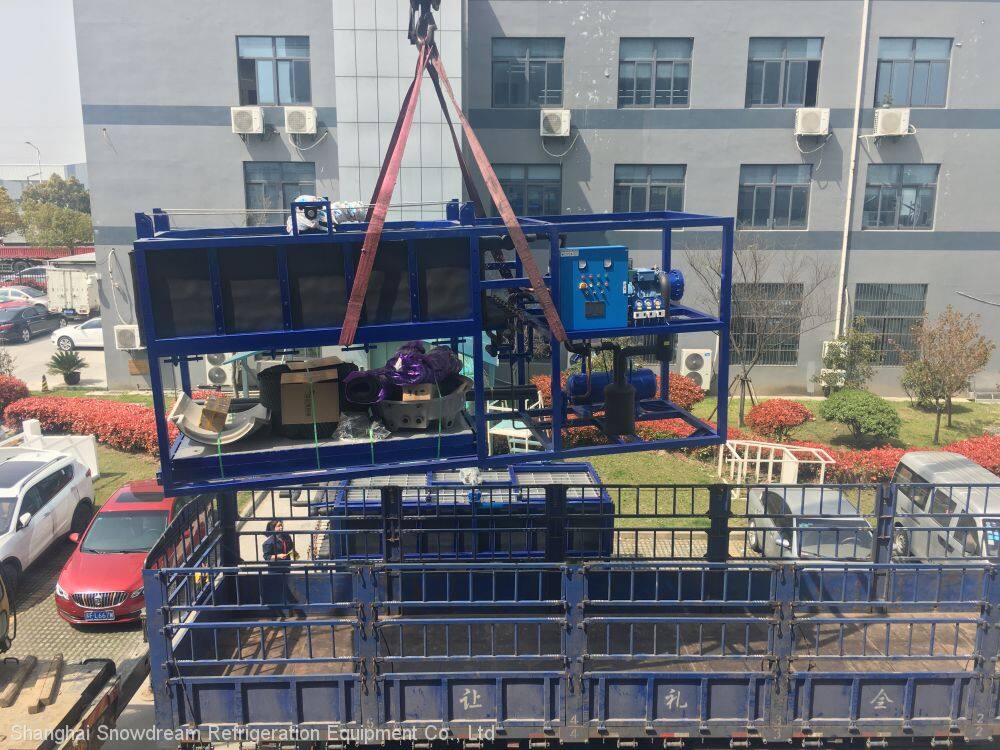

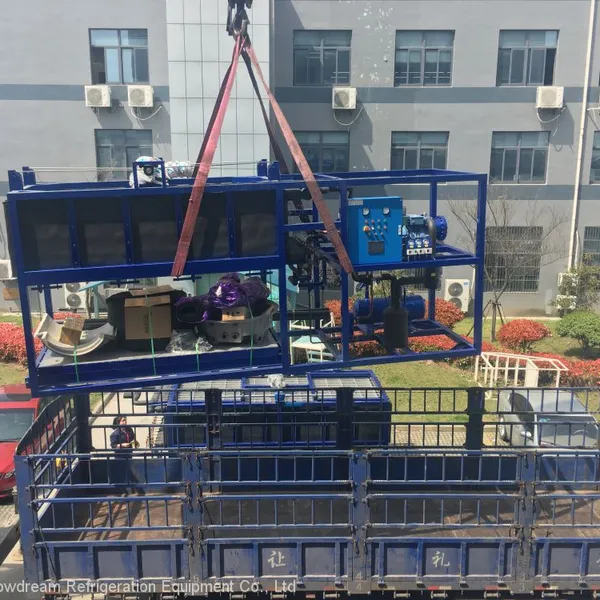

(15) Packing and shipping: One 20GP container
