DL S800 6IN1 LCD Screen Tester Machine For iPhone Samsung Huawei Oppo Vivo Xiaomi

2023 New 6 In 1 Mobile Phone screen tester DLZXWIN TestBox DL S800 for iPhone 6-14 Plus, Huawei, Samsung, Xiaomi, Oppo, Vivo touch screen repair. DL S800 screen tester supports LCD screen test, 3D test, touch test, screen true tone recovery, ect.

Features:
1. 2.8-inch large touch screen, easy to operate.
2. The detachable small board design with protection function greatly reduces the probability of damage to the main board, allowing long-term use without worry.
3.64G bit capacity, 16 times larger than S300, this capacity can support up to thousands of cable models
4. Brand-new screen power supply design, special program screens do not need additional brightness expansion boards, all original assembled screens on the market can be tested
5. Multiple functions: S800 has screen display, touch, power consumption and other test functions, the truetone recovery function of the original and assembled screen, battery repair function, and in future will add FACE ID repair function.
6. This 6-in-1 S800 test box which was updated from S300 device and ALL S200 and S300 flex cables can be used on S800 device, this S800 testbox supports screens for iPhone Samsung Huawei Oppo Vivo and Xiaomi. Update to 2023-01-11, it has 276 flex cables that support 572 different models.

Note:
At present, the iPhone 12/13/14 series are only supported the reading function.
1. For iPhone 12 and later models, please make sure the iPhone original screen has true tone functions.
2. Read the iPhone origianl screen code with DL400PRO tester.
3. After the data is read successfully, write data to the new screen.

Flex cables:

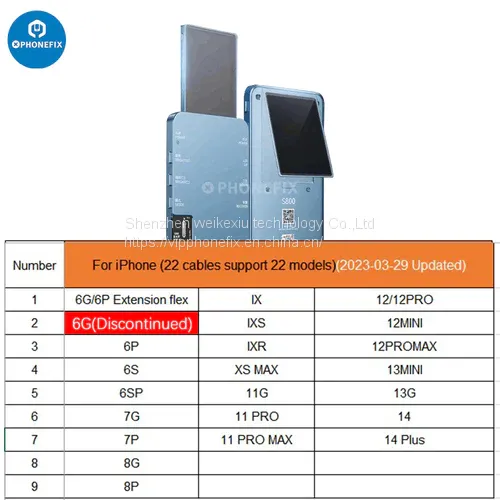

1. 22pcs flex cables for iPhone 6-14 Plus(not including iPhone 13 Pro/13 Pro Max/14 Pro/14 Pro Max). 2023-03-29 Updated.
2. 80pcs flex cables for 138 different models of Huawei. 2023-03-20 Updated.
3. 48pcs flex cables for 59 different models of Samsung. 2023-02-23 Updated.
4. 48pcs flex cables for 170 different models of Oppo. 2023-03-20 Updated.
5. 49pcs flex cables for 134 different models of Vivo. 2023-03-20 Updated.
6. 45pcs flex cables for 65 different models of Xiaomi. 2023-03-20 Updated.

More models will be supported in the future.

Note: Please don't disassemble, repair or modify this product by yourself.2023 New 6 In 1 Mobile Phone screen tester DLZXWIN TestBox DL S800 for iPhone 6-14 Plus, Huawei, Samsung, Xiaomi, Oppo, Vivo touch screen repair. DL S800 screen tester supports LCD screen test, 3D test, touch test, screen true tone recovery, ect.
