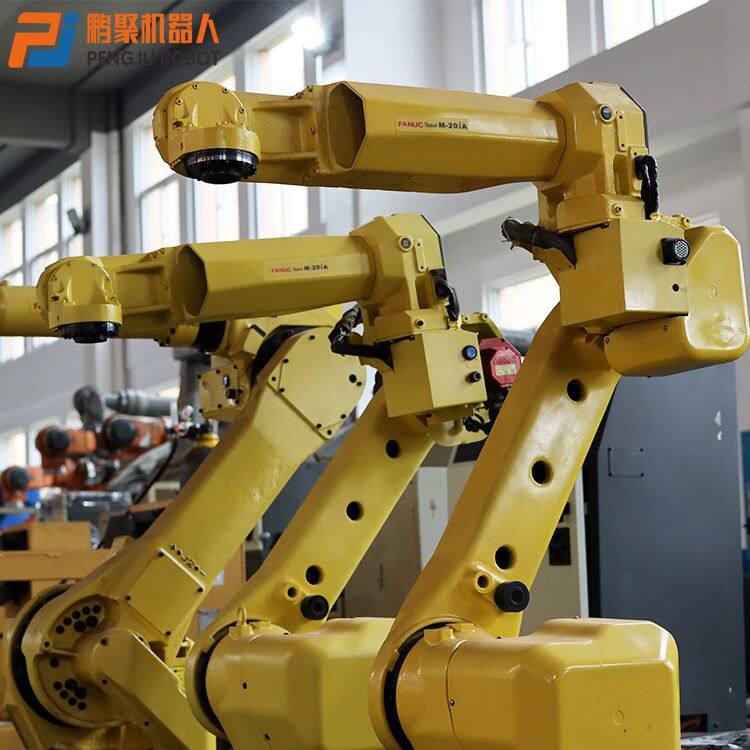

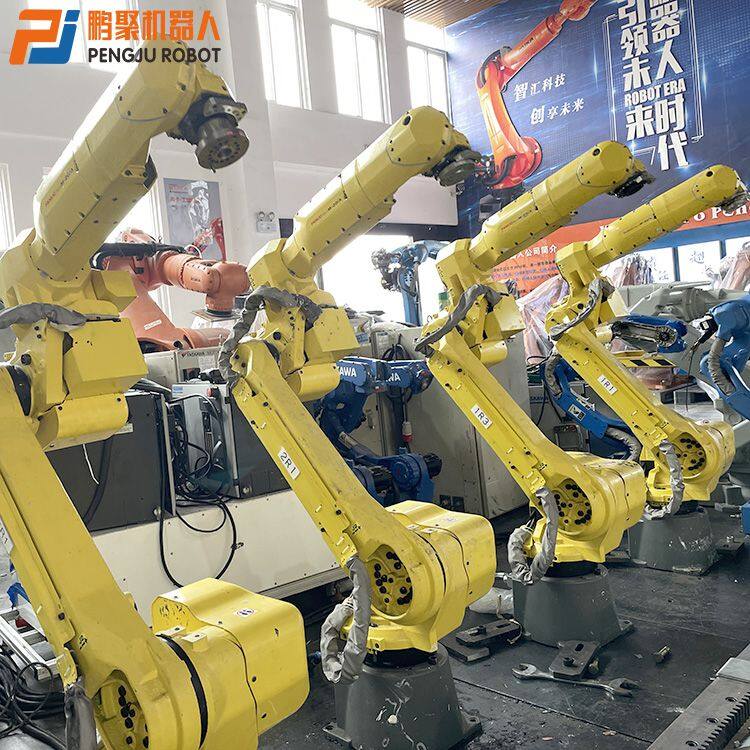

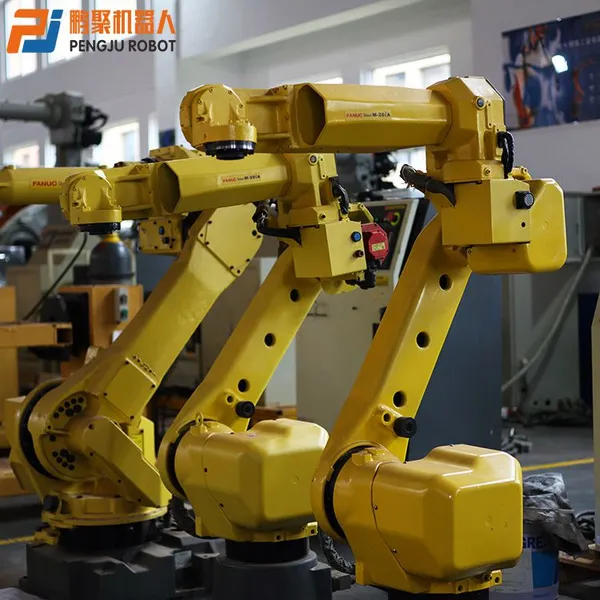

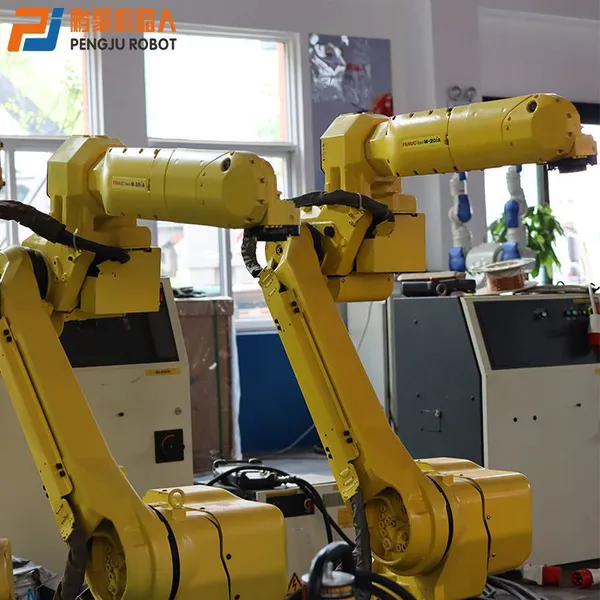

Fanuc Robot M-20iA Fully Automatic Six Axis Cutting Robot Welding Robot Loading and Unloading Robot Arm Extension 1811mm
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Factory Size:
5,000-10,000 square meters
Total Employees:
51 - 100 People
Port of Shipment:
shenzhen
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fanuc Robot 410iC/110 Arm Span 2400mm Load 110kg Four-axis Palletising RobotNegotiableMOQ: 1 Set -
Fanuc Robot M-900iA/600 M-900iA260L M-900iA/350NegotiableMOQ: 1 Set
-
Second-hand Fanuc Handling Robot R-2000iB-210F Six-axis Palletizing Robot Arm Span 2650mm Load 210kg Six-axis Palletizing RobotNegotiableMOQ: 1 Unit
-
Industrial Robot Arm Arc Welding Fanuc Robot M-20iA Automatic Welding RobotNegotiableMOQ: 1 Set
-
KUKA KR16 KR60 KR210 KR240 KR360 KR500 Kuka Robots For Welding Palletizing LoadingNegotiableMOQ: 1 Set
Fanuc Robot M-20iA Fully Automatic Six Axis Cutting Robot Welding Robot Loading and Unloading Robot Arm Extension 1811mm Load 20kg
| Model | M-20iA | |
| Controlled axes | 6 AXES (J1. J2. J3. J4. J5. J6) | |
| Reach | 1811mm | |
| Installation | Floor, Upside-down, | |
|
Motion range(Maximum speed)(Note 1. 2) |
JI axis rotation | 340°/370°(Optiom)(195°/S) 5.93rad/6.45rad(Optiom)(3.40rad/s) |
| J2 axis rotation | 260°(175°/S) 4.54rad (3.05rad/S) |
|
| J3 axis rotation | 458°(180°/S) 8.00rad(3.14rad/S) |
|
| J4 axis wrist rotation | 400°(360°/S) 6.98rad(6.28rad/S) |
|
| J5 axiswrist swing | 360°(360°/S) 6.28rad(6.28rad/S) |
|
| J6 axis wrist rotation | 900°(550°/S) 15.71rad(9.60rad/S) |
|
| Max load capacity at wrist | 20kg | |
|
Allowable loadmoment at wrist |
J4 axis | 44.0N·m |
| J5 axis | 44.0N·m | |
| J6 axis | 22.0N·m | |
|
Allowable loadinertia at wrist |
J4 axis | 1.04kg·m² |
| J5 axis | 1.04kg·m² | |
| J6 axis | 0.28kg·m² | |
| Repeatability Note 3) | ±0.03mm | |
| Mass Note 4) | 250kg | |
FANUC Robot M-10iA / M-20iA is a small payloadhandling robot whose payload is 7 to 35kg.
Two wrist types are available. Hollow wrist realizesthe user cable easy wiring. High inertia wrist isappropriate for large work piece handling.Standard arm, short arm and long arm are availablefor variable working area.
High rigidity arm and advanced servo technologyenable to increase acceleration performance. Thisdecreases cycle time and realizes high productivityVarious intelligent functions with iRVision (integratedvision) and force sensor are available.
