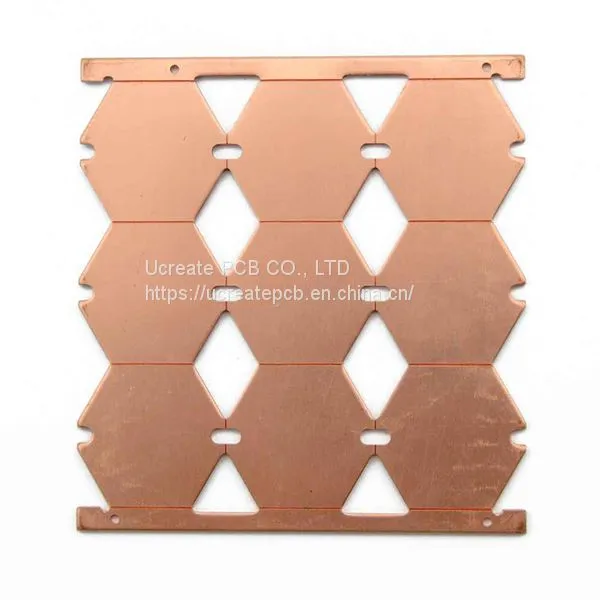

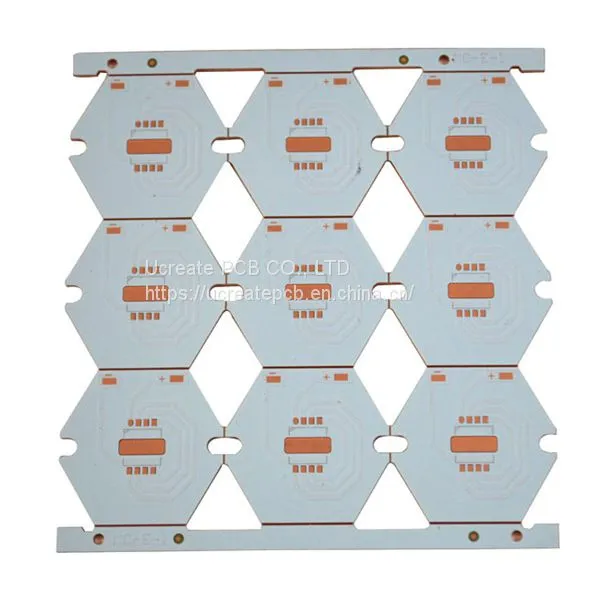

Cree Led Board, Aluminium Based Mcpcb Board Shenzhen
- 45000 Piece / Pieces per Month
- Shekou
- T/T L/C Credit Card Other
Product Details
Brand Name: | Ucreate | Place of Origin: | China | Model Number: | UCA046 |
Surface Finishing: | Immersion Gold | Min. Line Spacing: | 0.1/0.1mm | Min. Line Width: | 3mil(0.075mm) |
Min. Hole Size: | 0.075mm | Board Thickness: | 1.2mm | Copper Thickness: | 1.5 OZ |
Base Material: | Fr-4 |
Product Description
Item | Speci. |
Layers | 1~32 |
Board thickness | 0.1mm-7.0mm |
Material | FR-4,CEM-1/CEM-3,PI,High Tg,Rogers |
Max panel size | 32"×48"(800mm×1200mm) |
Min hole size | 0.075mm |
Min line width | 3mil(0.075mm) |
Surface finish | OSP,HASL,Imm Gold/Nickel/Ag, Electric gold |
Copper thickness | 0.5-7.0OZ |
Soldermask | Green/Yellow/Black/White/Red/Blue |
Silkscreen | Red/Yellow/Black/White |
Min PAD | 5mil(0.13mm) |
Inter package | Vacuum |
Outer package | Carton |
Outline tolerance | ±0.75mm |
Hole tolerance | PTH:±0.05 NPTH:±0.025 |
Certificate | UL,ISO 9001,ISO14001,IATF16949 |
Special request | Blind hole+Gold finger + BGA |
Material Suppilers | Shengyi, KB, Nanya, ITEQ,etc. |
General Introduction of Multilayer PCB
As the name suggests, a multi-layer circuit board can only be called a multi-layer circuit board with more than two layers, such as four layers, six layers, eight layers, and so on. Of course, some designs are three-layer or five-layer circuit, also called multi-layer PCB circuit board.
Conductive wiring diagram larger than the two-layer board. The insulating substrate is separated between the layers. After each layer of the circuit is printed, each layer of the circuit is overlapped by pressing. After drilling, the electrical connection between them is usually achieved through plated through holes on the cross section of the circuit board.
PCB Manufacturing Services
As one of the leading Printed Circuit Board manufacturers based in China, Ucreate has been offering international companies of all sizes with high-quality PCB prototype to production services at a fair price for eight years. To make professional and advanced circuit boards, we're committed to adhering to the strictest standards during the PCB manufacturing process. We're fully compliant with the ISO 9001:2008 quality management system.
