Ultra Light Expanded Aluminum Mesh as Lightning Strike Protection Material
Negotiable
MOQ: 50 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Application:
aerospace
Surface Treatment:
None
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
3 days
Related Products
-
Ultra Light Expanded Copper Mesh as Lightning Strike Protection MaterialUS$ 20 - 110MOQ: 50 Meters -
Expanded Nickel Mesh as Current CollectorUS$ 4.5 - 8MOQ: 50 Meters
-
Expanded Copper Mesh as Current CollectorUS$ 4 - 12MOQ: 50 Meters
-
Expanded Titanium MeshUS$ 35 - 40MOQ: 10 Kilograms
-
Diamond Hole Expanded Steel Mesh Perforated Steel Mesh for Speaker GrillUS$ 9 - 12MOQ: 10 Square Meters
Place of Origin
China
Application
aerospace
Surface Treatment
None
Alloy Or Not
Non-alloy
Powder Or Not
Non-powder
Al Content (%)
>99.9
Product Description

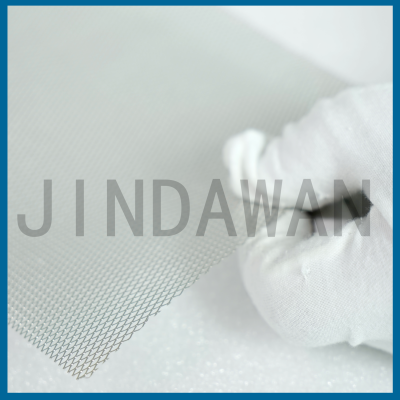

By using our micromesh, the lightning strike energy is dissipated over the surface of the component, which prevents damage to the composite material below.
Our expanded metal foils are the materials of choice for lightning strike protection in composite aircraft structures. We are the supplier of many famous aircraft and rotorcraft manufacturers in China.
Our expanded metal foils are the materials of choice for lightning strike protection in composite aircraft structures. We are the supplier of many famous aircraft and rotorcraft manufacturers in China.
JDW Micromesh's Advantages:
1. do not unravel or have loose strands that become problematic during processing into a pre-preg material or when conducting a dry lay-up.
2. ensures uncompromised conductivity between strands when forming the material to a variety of shapes and contours and provides a smooth surface on the end product.
3. tightly control the manufacturing process to meet a specific weight, open area, and conductivity requirement.
4. allow engineers the option of varying materials according to specific strike zones on the aircraft, minimizing the overall weight. Our common materials have the ability to withstand strike of 200,000 amps.
1. do not unravel or have loose strands that become problematic during processing into a pre-preg material or when conducting a dry lay-up.
2. ensures uncompromised conductivity between strands when forming the material to a variety of shapes and contours and provides a smooth surface on the end product.
3. tightly control the manufacturing process to meet a specific weight, open area, and conductivity requirement.
4. allow engineers the option of varying materials according to specific strike zones on the aircraft, minimizing the overall weight. Our common materials have the ability to withstand strike of 200,000 amps.

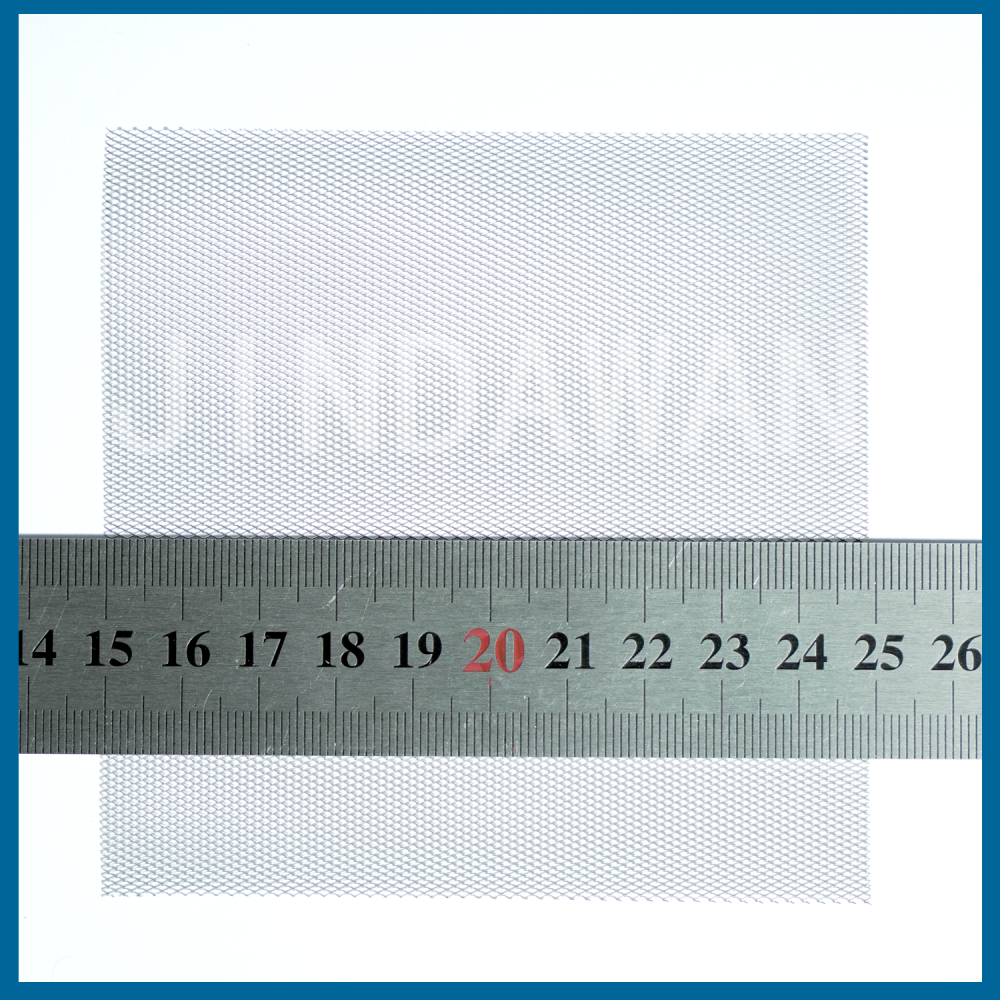

| Aluminum Material Specifications | |||
| KINSON® type | AL66 | AL78 | AL136 |
| Weight g/squaremeter (±6%) | 66 | 78.12 | 136.7 |
| LWD mm(±5%) | 1.905 | 2.032 | 2.032 |
| Thickness mm(±0.01mm) | 0.051 | 0.102 | 0.152 |
| Open Area %(±5%) | 52 | 52 | 60 |
