A ball screw is a mechanical component used to convert rotational motion into linear motion.It consists of a ball screw shaft and a ballnut that contains a series of ball bearings.As the ball screw rotates,the balls roll between the ball screw and ballnut, causing the ballnut to move linearly along the screw.
| Material | Gcr15(HRC60~62),9Cr18(HRC55~58) |
| Axial play | 0~0.005mm(Can be zero) |
| Preload | P0,P1,P2,P3,P4 |
| Efficiency | ＞90% |
| Accuracy grade | C1,C3,C5,C7 |
| Features | Clean and smooth,excellent surface finsh |
| Certificates | ISO9001:2015,CE certificate,RoHS and reach compliance |
| MOQ | 1 piece |
| Lead time | 10~30 days. |
| Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
| Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
|

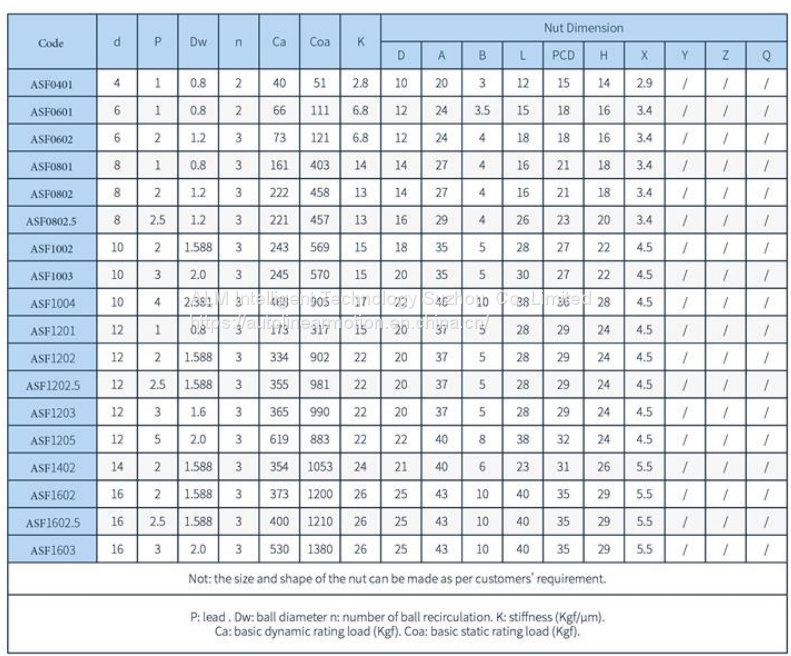

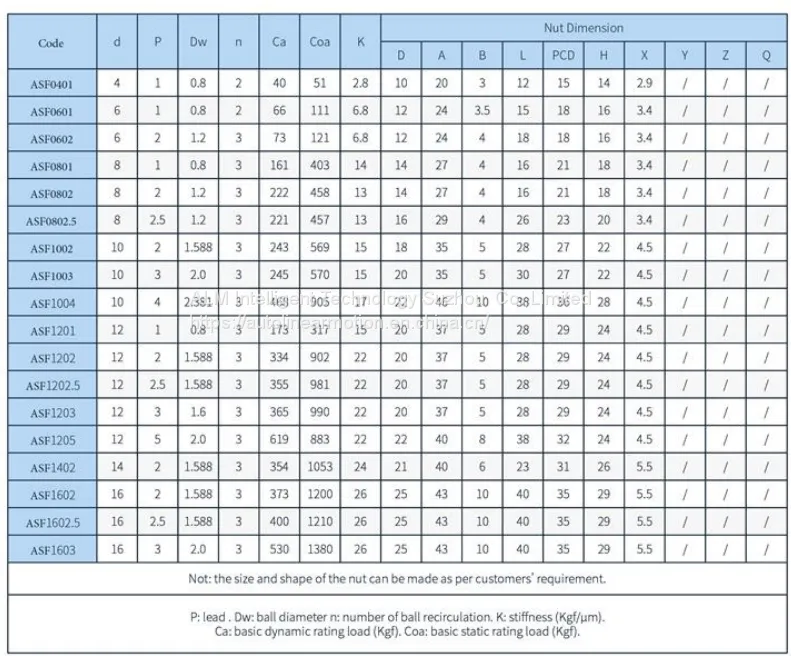

ALM Ball Screw Parameter |
| Our Advantages |
| Free service | Performance testing |
| Technical solution | |
| Please contact the salesman for details | |
| Shipping and Payment |
●Shipping
Sample order:We have DHL,FedEx,UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:We have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
●Payment
LC,T/T,D/P,PayPal,Western Union,Money Gram
| ALM Company Profile |
ALM originally established in year of 2005.From a small factory,ALM nowadays has four production workshops for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining parts for automation industry.Total areas over 7000 square meters,109 employees.Above 8 technical engineers are with over 20 years’ experience in linear motion filed.
ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft, satellite,medical,Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.Customers cover more than 65 countries in Europe,North America,South Asia,Middle East,Africa,Latin America etc.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers, and thus remains at the top of their vendor lists.
ALM key production machines are imported,like high precision CNC grinding machine,3 axis,4 axis machining centre,internal and external grinding centre,CNC lathe.In addition,with advanced production management,ALM obtained the quality certificate ISO9001:2008 and IATF16949.And through our R&D department dedication over 16 years,we possess more than 26 national patents.
