Sublimation transfer paper coating machine
Through programmable logic controller (PLC), touch screen and high precision converter special for tension, rotary encoder, proximity switch and tension sensor signal, it can achieve closed-loop tension control, reducing breaks in production process and increasing productivity and yield.
Application of programmable logic controller (PLC), touch screen and high performance digital frequency converter constitute the machine stable control of running speed and the division tension; simple operation, high automation degree, all the parameters have been set in the best state in factory; only to input the speed, tension and other data, the machine can achieve dynamically synchronous and automatic control.
Roller surface width: 1900 mm
Base paper width: 1650 mm
Base paper quantitative weight: 35 ~ 120 g/m2
Design speed: 200 m/min
Working speed: 180 ~ 200 m/min
Coating method: air knife coating
Coating knife quantity: 1 set
Coating weight: 1 ~ 10 g/m2
Solid content: 15 ~ 20%
Pickup speed: 10 m/min
Drying methods: hot air circulation drying + cylinder finishing
Base paper moisture: 5 ~ 6%
finished paper moisture: 5 ~ 6%
Heat medium: saturated vapor or gas burner
Vapor pressure: 0.6-0.8 Mpa
Cylinder pressure:
Mode of transmission: frequency conversion motor, distributed drive

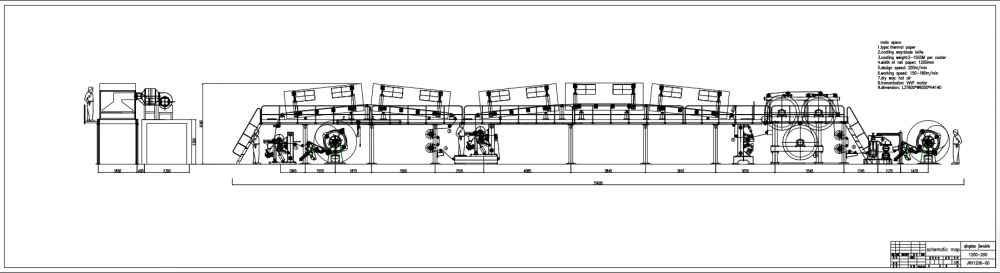

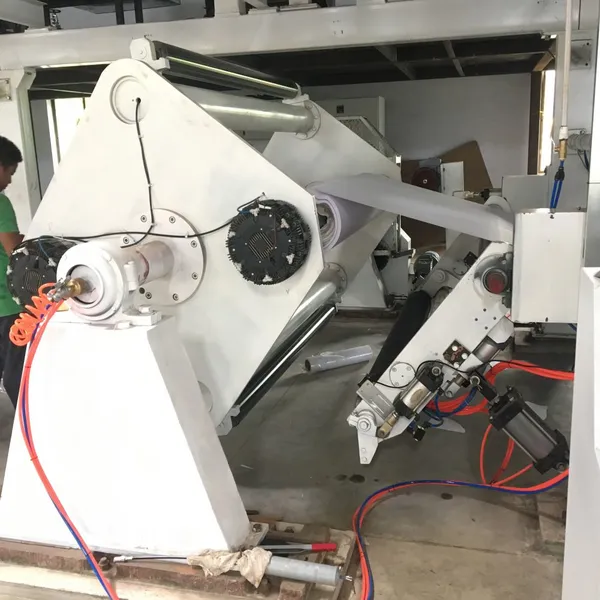

The double workstation shaft-type unwinding →the double roller feeding device →air knife coating →hot air circulation→back coating →hot air circulation→3 cylinders finishing → horizontal type winding
Our Services ( We can provide turnkey works)
QINGDAO JIERUIXIN MACHINERY AND TECHNOLOGY CO.,LTD. the real person hood, steadfast work management concept, we warmly welcome all friends to visit.
FAQ
1.Is there person reply to me?
Our person is 24-hours online. If no reply, please leave your message via e-mail and chat tools, we will reply you as soon as possible.
2.Why we choose your company, what could you do for me?
We have established for more than 10 years, we have the stable production experiences.
We use the best steel to guarantee the products' quality.
We will always give you the heart to heart service.
We always speak with facts and quality.
3.Could your engineers teach and train our worker and stay in our factory for long time?
Yes, we have very large installation team, they can train and teach your worker to operate the paper machine, but you should pay them salary.
4.How can i know your machine work well?
Before delivery, we will test the machine work condition for you.
