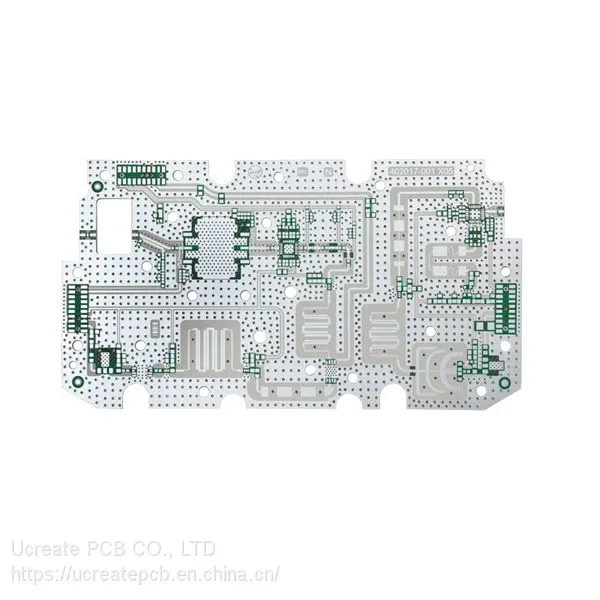

4 Layers Immersion Sliver Rogers PCB Manufacturing Prototype for Auto Electronics

Rogers PCB is a type of high-frequency board that raw material is produced by Rogers company. It is different from the conventional PCB board—epoxy resin (FR4). It has no glass fiber in the middle and uses a ceramic base as the high-frequency material. Rogers has superior dielectric constant and temperature stability. Its dielectric constant thermal expansion coefficient is very consistent with copper foil, which can be used to improve the deficiencies of PTFE substrates.

Multilayer PCB

As the name suggests, a multi-layer circuit board can only be called a multi-layer circuit board with more than two layers, such as four layers, six layers, eight layers, and so on. Of course, some designs are three-layer or five-layer circuit, also called multi-layer PCB circuit board.

Conductive wiring diagram larger than the two-layer board. The insulating substrate is separated between the layers. After each layer of the circuit is printed, each layer of the circuit is overlapped by pressing. After drilling, the electrical connection between them is usually achieved through plated through holes on the cross section of the circuit board.

PCB Manufacturing Services

As one of the leading Printed Circuit Board manufacturers based in China, Ucreate has been offering international companies of all sizes with high-quality PCB prototype to production services at a fair price for eight years. To make professional and advanced circuit boards, we're committed to adhering to the strictest standards during the PCB manufacturing process. We're fully compliant with the ISO 9001:2008 quality management system.

- Save money&time! Achieve peace of mind!
- A professional and trustworthy PCB Prototype manufacturer.
- Fastest PCB Prototype.
- One-stop solution for various PCB& SMT Stencil.
- Low cost for simple PCB.
- Affordable price for high-tech PCB.
- Minimum orders 1pcs.
- 24-hour online customer service.
- Professional PCB engineer for one-to-one service.
- Shipment on time.

- Guarantee good service and quality from PCB quotation to delivery.

Deliver Time For PCB & PCBA

- PCB production time:  sample:  3-4 days /   production: within 7 days

- Fast pcb delivery: 24 hours for 2L ; 48 hours for 4L ; 72 hours for 6L.

- Component purchase: 2 days if all components is available in our domestic market.

- PCB Assembly:  samples: within 8 days / mass production: within 12 days

One-stop Service Include
